Page 1: Top And Cabinet Parts

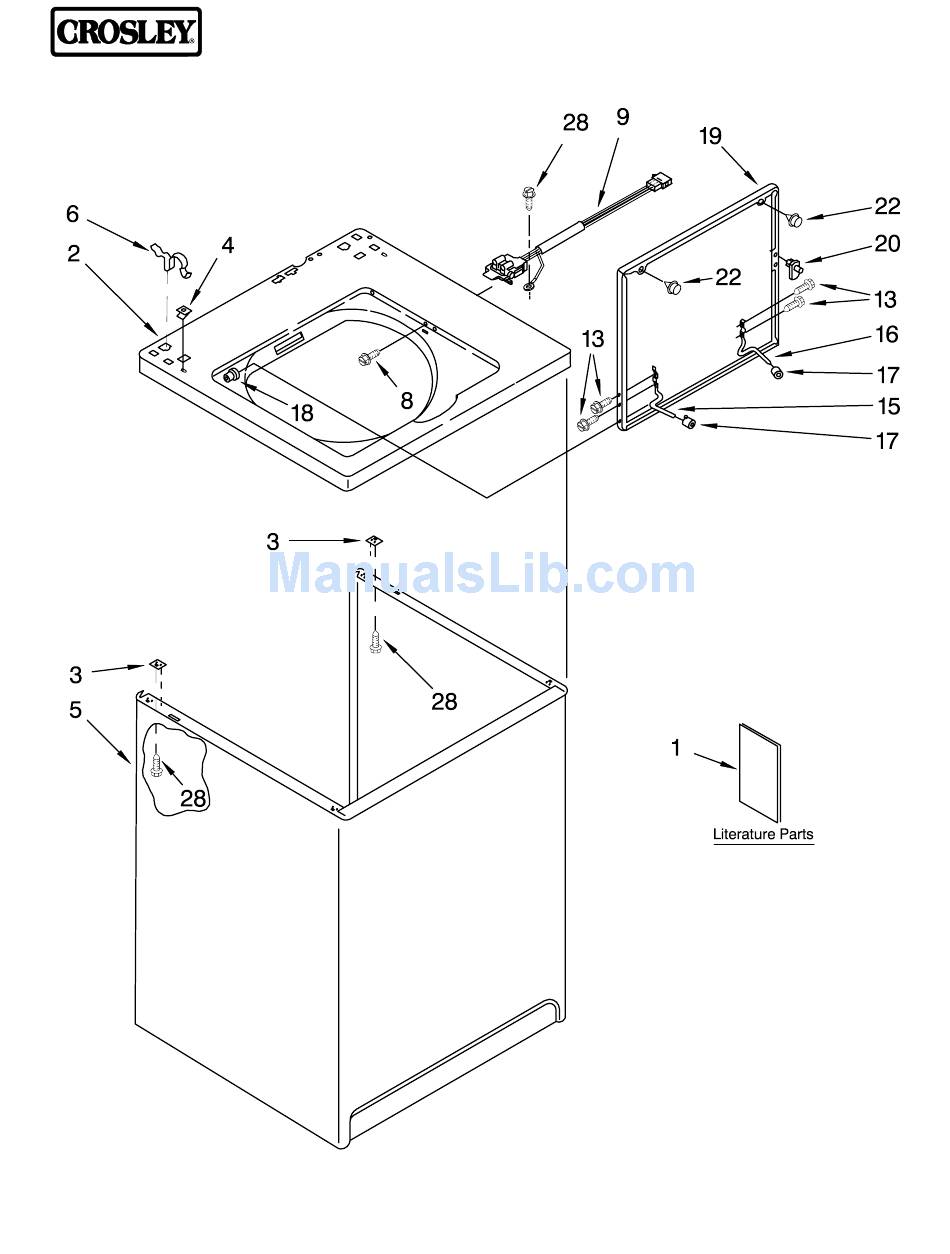

TOP AND CABINET PARTS AUTOMATIC WASHER For Model: BYCW6292W0 (White) Part No. 881643 7-99 Litho In U.S.A. (awm) - Page 2 TOP AND CABINET PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION Literature Parts LIT3360057 Installation Instructions LIT3953947 Use & Care Guide LIT3953867 Energy Guide LIT3948359 Wiring Diagram Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS LIT4313896 Manual (Washer) 3949310 Top 62750 Spacer, Cabinet To...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Model: BYCW6292W0 (White) 881643... - Page 4 CONTROL AND REAR PANEL PARTS For Model: BYCW6292W0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3976300 Washer, Water 3948357 Timer, Control 3363366 Clamp, Hose Inlet Hose (4) (60 Hz.) 660628 Clamp, Hose (1-1/16 x 5/8) (Motor Not A...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Model: BYCW6292W0 (White) 881643... - Page 6 AGITATOR, BASKET AND TUB PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION 3355758 Cap, Agitator 358237 Screw & Washer (5-16-24 x 1) 3360611 Tub Ring & Gasket 3359586 Gasket, Tub Ring 387868 Balance Ring 387867 Clip, Balance Ring (8) 21366 Nut, Spanner 8271639 Basket &...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Model: BYCW6292W0 (White) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388951 Brake & Drive 3357334 Screw, Gearcase Tube (Complete) To Base (3) (Refer to Page 11 62611 Plate, Motor For Further Mount To... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION 3387485 Screw, Bracket Mounting (10-16 x 5/8) (6) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Model: BYCW6292W0 (White) WH2G 881643... - Page 10 WIRING HARNESS PARTS For Model: BYCW6292W0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3348075 Block, Disconnect 3349557 Clip, Harness 3349494 Connector, Etc (Motor 3 Speed) 388498 Clip, Harness 60687 Connector, Relay (Use Term. 94613 3347812 Clip, Harness (Use Term.308569)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION 388951 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) -
Page 12: Gearcase Parts
GEARCASE PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion 389387... -
Page 13: Water System Parts
WATER SYSTEM PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031 Drain Protector (Not Included) -
Page 14: Miscellaneous Parts
MISCELLANEOUS PARTS For Model: BYCW6292W0 (White) Illus. Part DESCRIPTION 3976263 Miscellaneous Parts Bag 3976300 Washer, Inlet Hose (1-1/16 x 5/8) (4) 3359452 Nut, Lock (3/8-16) 389102 Foot, Front (2) 3366912 Clamp, Hose OPTIONAL PARTS (NOT INCLUDED) Illus. Part Illus. Part Illus.
