SERVICE MANUAL
Ver 1.0 2002. 10
Revision History
Revision History
Link
Link
SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
PRINTED WIRING BOARDS
PRINTED WIRING BOARDS
• For ADJUSTMENTS (SECTION 6), refer to SERVICE MANUAL, ADJ (992999751.pdf).
• For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (992999741.pdf).
• Reference No. search on printed wiring boards is available.
The information that is not described in this Service Manual is described
in the LEVEL 2 Service Manual.
When repairing, use this manual together with LEVEL 2 Service Manual.
Contents of LEVEL 2 Service Manual
1. SERVICE NOTE
2. DISASSEMBLY
3. BLOCK DIAGRAMS
4. PRINTED WIRING BOARDS
AND SCHEMATIC DIAGRAMS
5. REPAIR PARTS LIST
DSC-F77/FX77

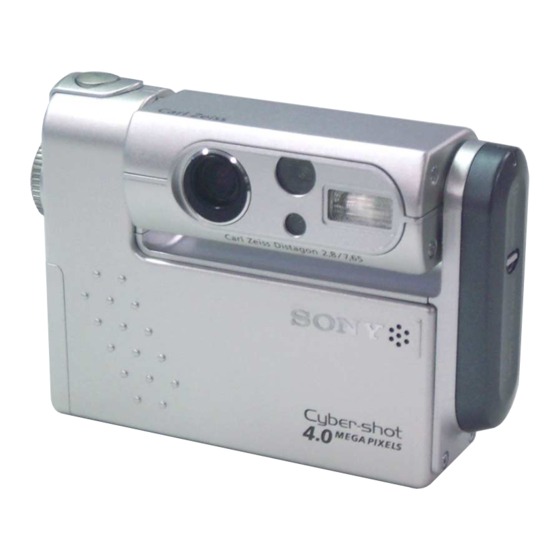

Photo: DSC-FX77
OVERALL
POWER
CD-415 BOARD, ST-78 BOARD, KK-
29 BOARD, FP-585 FLEXIBLE,
FP-586 FLEXIBLE, CONTROL
SWITCH BLOCK
EXPLODED VIEWS
ELECTRICAL PARTS LIST
Hong Kong Model
REPAIR PARTS LIST
REPAIR PARTS LIST
DIGITAL STILL CAMERA
3
LEVEL
AEP Model
UK Model
Japanese Model
DSC-F77/FX77
E Model
Australian Model
Chinese Model
Tourist Model
DSC-F77
