Page 1: Instruction Manual

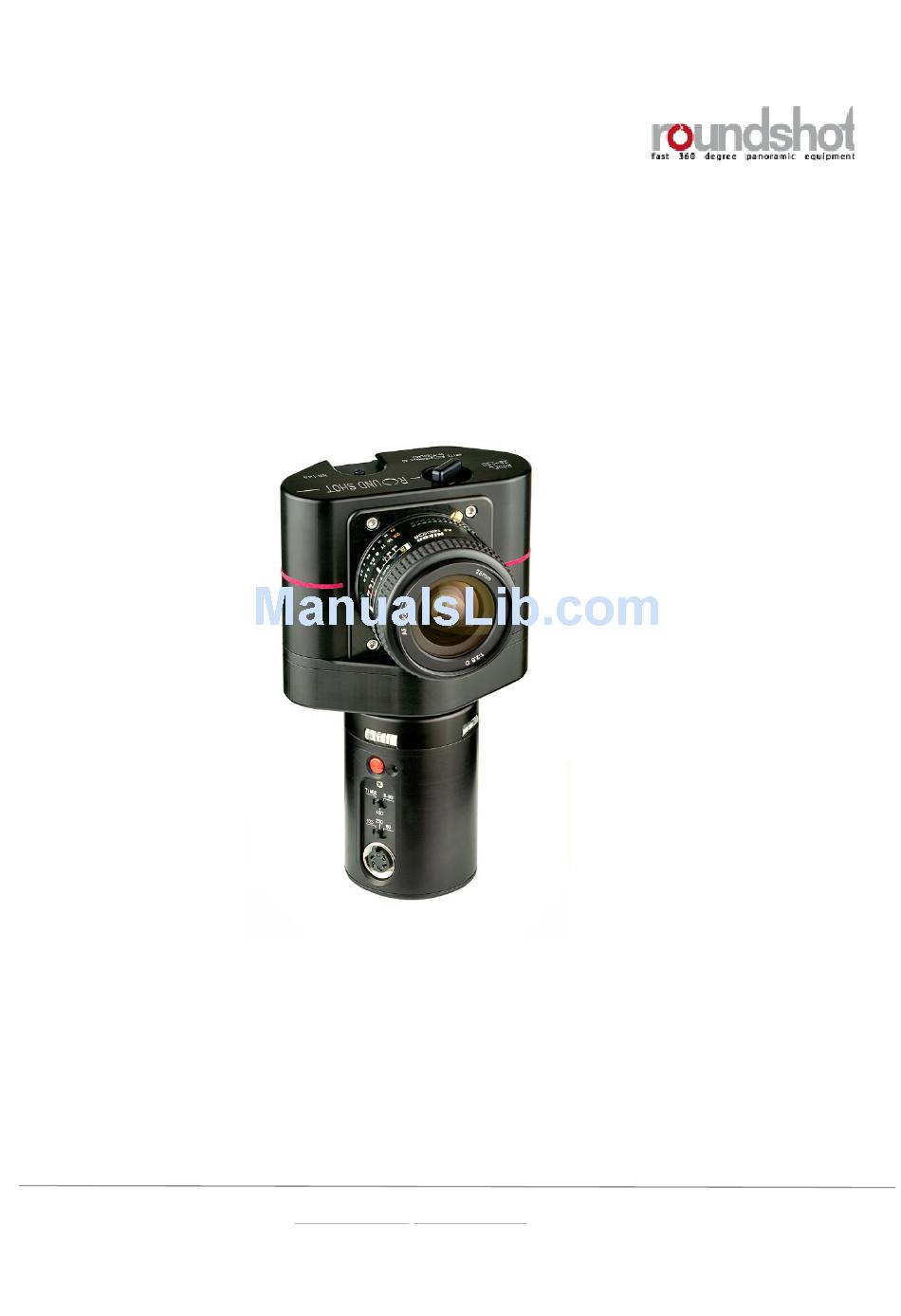

Instruction Manual Roundshot 28-220 Outdoor © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 0 Technical changes reserved, Status: 4.2007... -
Page 2: Table Of Contents
3.4 Maintenance 3.5 Return of equipment / recycling 4. Technical Data © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 1 Technical changes reserved, Status: 4.2007... -
Page 3: System Overview
Film pressure plate Exposure slit Film plane and drum for film transport © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 2 Technical changes reserved, Status: 4.2007... -
Page 4: Accessories
Ideal accessory for secure storage and transport of your Case) equipment © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 3 Technical changes reserved, Status: 4.2007... -
Page 5: Functioning Of The Camera
To remove lens: press lens button (3) in while at the same time moving the lens clockwise. (Contax: press from above inwards) © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 4 Technical changes reserved, Status: 4.2007... -
Page 6: Viewfinder
The corresponding point in space is the upper Lower margin of image margin of the image. © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 5 Technical changes reserved, Status: 4.2007... -
Page 7: Control And Functions
- Middle position: Shutter time 1/250 - Right position: Shutter time 1/60 © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 6 Technical changes reserved, Status: 4.2007... -
Page 8: Battery Status
2.4 Battery status The model 28-220 Outdoor has no battery status indicator. With a complete power load up to 100 films can be exposed, depending on speed of operation and temperature. To load the battery connect the camera to a power source with the universal speed charger unit. -
Page 9: Calibration With Water Bubble Indicators
After film development choose optimum distance setting and mark this value on the lens. © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 8 Technical changes reserved, Status: 4.2007... -
Page 10: Tips And Resources
3.3 Length of film and number of panoramas per film The number of possible shots with the 28-220 Outdoor camera are displayed in the following table. We recommend using a larger degree of the panorama than actually necessary (for instance 450° for a 360° shot). This allows to choose the best section of the image later. -
Page 11: Maintenance
3.5 Return of equipment / recycling Your Roundshot product and the accessories are produced from highest quality materials and parts and will provide you continued pleasure. Should you nevertheless want to dispose of your Roundshot equipment one day, it should not be placed in normal waste. -
Page 12: Technical Data
Possible further accessories Telrad viewfinder, quick adapter, cable for external release, waterproof case © by Seitz Phototechnik AG, Hauptstr. 14, 8512 Lustdorf, Switzerland Phone: +41 52 376 3353, Fax: +41 52 376 3305, seitz@roundshot.ch, www.roundshot.ch Page 11 Technical changes reserved, Status: 4.2007...
