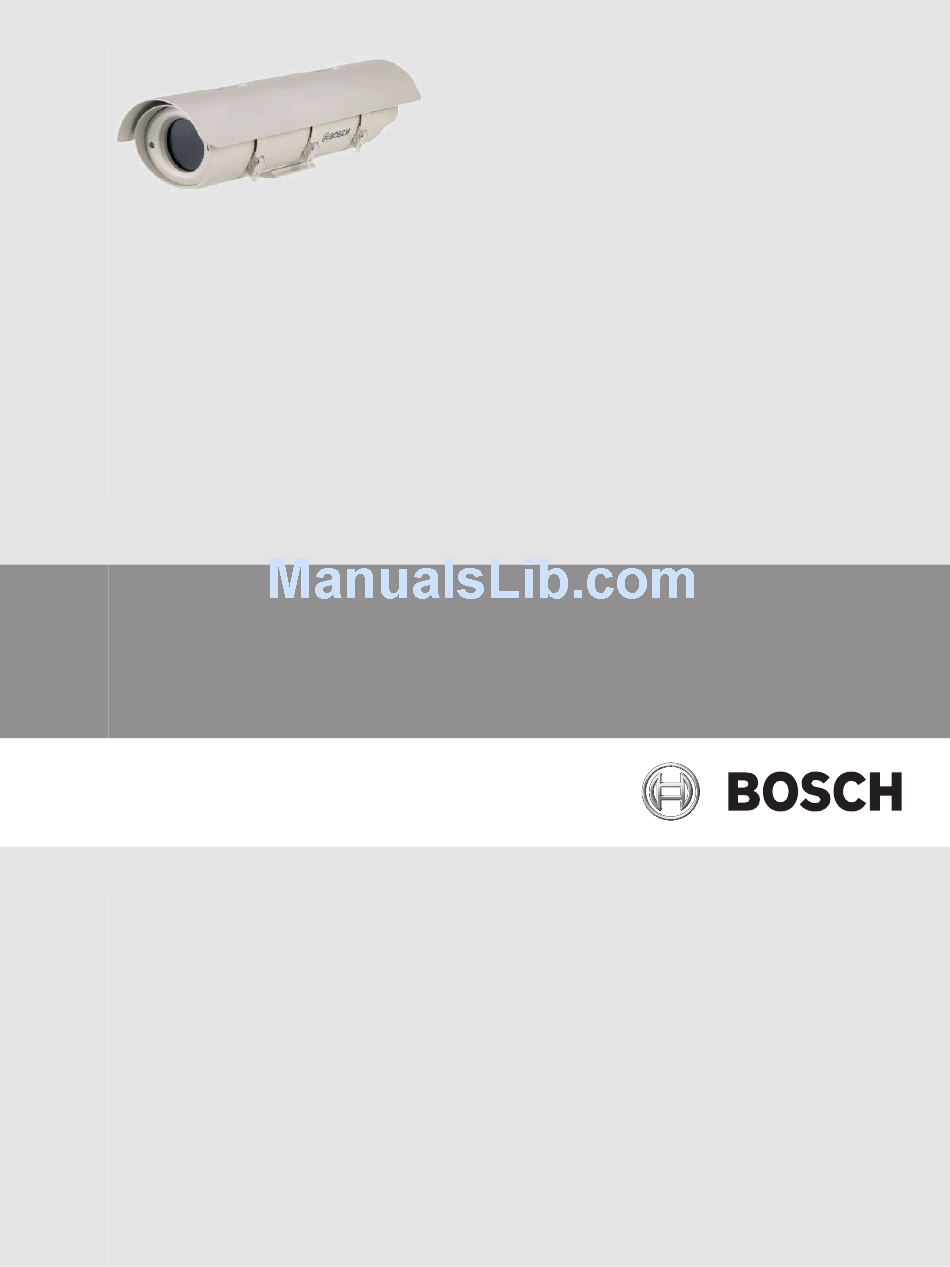

- Page 1 UHI/UHO Series Camera Housing UHx (UHI, UHO) Operation Manual...
-
Page 3: Table Of Contents
Video coax connection Lens wiring Connection - UHO-HBPS-11, -51 | UHO-HPS-51 Camera/lens wiring Video coax connection Operation Final assembly and Sunshield installation Final assembly Sunshield installation Maintenance Fuse replacement Exploded view Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... -
Page 4: Safety
10% or 21.6-26.4 VAC. User-supplied wiring must comply with local electrical codes (Class 2 power levels). Do not ground the supply at the terminals or at the unit's power supply terminals. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. -
Page 5: Safety Precautions
16. Attachments, changes, or modifications - Only use attachments/accessories specified by the manufacturer. Any change to or modification of the equipment not expressly approved by Bosch could void the warranty or, in the case of an authorization agreement, authority to operate the equipment. -
Page 6: Important Notices
Please dispose of these units at an environmentally compatible recycling facility, in line with European Directive 2002/96/EC. Environmental statement - Bosch has a strong commitment to the environment. This unit has been designed to respect the environment as much as possible. - Page 7 UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT. Copyright This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
- Page 8 Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user guide and the product described.
- Page 9 Interference Problems (Comment identifier et résoudre les problèmes d’interférences de radio et de télévision). Cette brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418...
-
Page 10: Customer Support And Service
| Safety UHI/UHO Series Camera Housing Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Repair Center Telephone: 800-566-2283 Fax: 800-366-1329 E-mail: repair@us.bosch.com... -
Page 11: Unpacking
Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. – Do not use this product if any component appears to be damaged. Please contact Bosch Security Systems in the event of damaged goods. –... -
Page 12: Tools Required
| Unpacking UHI/UHO Series Camera Housing Tools required – Small flat blade screwdriver – Phillips screwdriver (#1) – Adjustable wrench – Wire cutter/stripper/crimper tool 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. -
Page 13: Description
Voltage 198 to 254 VAC / 40 W 198 to 254 VAC / 45 W range / power Camera 230 VAC voltage ratings Table 3.4: Outdoor 230 volt units Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... -
Page 14: Installation
Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), ® and all applicable local codes. Bosch Security Systems, Inc. accepts no liability for any damages or losses caused by incorrect or improper installation. Caution! These units must be properly and securely mounted to a supporting structure capable of sustaining the unit weight. -
Page 15: Input Power Cord
Lens control cable Cable type Jacketed multiconductor cable Cable diameter (outer) 4.6 mm to 7.9 mm (0.18 in. to 0.31 in.) Cable shape Round Cable shield Overall Conductors 4 and 8 Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... -
Page 16: Housing Mounting
Open the cover by unlatching the three latches on the side of the housing. If the optional tamper-resistant screws have been installed, use the supplied wrench to remove the screws before opening the latches. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. -
Page 17: Camera/Lens Installation
Figure 4.3: Spacers for mounting zoom lens and camera Figure 4.4: Optional camera tray type A for fixed lense camera Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... - Page 18 Slide the entire assembly forward approximately 5 mm (0.2 in.) from the front of the window. Install screws into the appropriate holes. Figure 4.5: Sliding camera/lens tary assembly into slot 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc.
-
Page 19: Connection - Most Models
5.1.3 Feed-through Wiring Use feed-through mounts to feed cabling through the foot of the housing. Prior to mounting the camera, remove the two dome plugs located inside the housing. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... -
Page 20: Power Connections
Route the power cable through the fitting in the rear cap or through one of the feed- through fittings in the foot. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. - Page 21 Reattach the ground connections in the order shown in the figure below. Figure 5.2: Safety grounding Lock washer Flat washer External ground lug External ground post Notice! Install the external ground in accordance with the NEC/CEC requirements. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418...
- Page 22 Strip no less than 6 mm (0.25 in.) and no more than 8 mm (0.31 in.) of insulation away from the wire. Ensure not to nick the wires. Connect these wires to the connectors provided on the terminal block. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc.
- Page 23 Power connection Green G (safety ground) Note: The drawing layout / the installation wiring diagram is in accordance with the NEC, ANSI/NFPA 70 for indicating recommended locations and wiring methods. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418...
-
Page 24: Video Coax Connection
Sealants that release acetic acid may harm camera electronics. Use of drip loops is recommended on the wiring outside of the rear end cap. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. - Page 25 If using a pan/tilt with a feed-through cable, insert the camera/lens function cable through the left fitting at the rear of the housing. Wire the required functions. For correct plug connection, see the specification on the lens cord. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418...
-
Page 26: Connection - Uho-Hbps-11, -51 | Uho-Hps-51
Be sure not to nick the wires. Insert the power cord through the back shell assembly and strain relief. See the figure below. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. - Page 27 Connect the power input cable to the screw terminals on the provided mating connector. See the table below. Pin Function Harness wire color AC neutral Blue AC live Brown No Connection Do not use Ground Green/yellow Table 6.1: 4-pin wiring connections Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418...
-
Page 28: Video Coax Connection
A video connection is provided on the rear of the housing. Connect video cable to the housing using a BNC connector. An internal video connection is provided. Connect the BNC cable to the camera. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. -
Page 29: Operation
These housings require no operational adjustments other than camera/lens adjustments. Verify operation of the camera and lens before final assembly. Adjust the camera focus and iris as necessary. See camera installation manual. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... -
Page 30: Final Assembly And Sunshield Installation
Tighten the screws to lock the sunshade into position. If the sunshield is removed or not installed, plug the two screw holes with the hole plugs supplied with the housing hardware kit. 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. -
Page 31: Maintenance
Camera voltage Fuse rating 24 VAC 4 A, 250 VAC 120 VAC 2 A, 250 VAC 230 VAC 2 A, 250 VAC There is a spare fuse inside the housing. Bosch Security Systems, Inc. Operation Manual 2014.05 | 4.0 | F.01U.167.418... -
Page 32: Exploded View
| Exploded view UHI/UHO Series Camera Housing Exploded view Figure 10.1: Exploded view 2014.05 | 4.0 | F.01U.167.418 Operation Manual Bosch Security Systems, Inc. - Page 33 (XDF01) 24 VAC (JRP24) 120 VAC (JRP12) 230 VAC (JRP23) Bottom cover plus latches, Bracket for UHI series (FZ001) 4 pin version (XD4P1) Bracket + PCB/24 VAC heater, no blower (FZP24) Bracket + PCB/24 VAC heater, incl. blower (FPF24)
- Page 36 Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH 850 Greenfield Road Robert-Bosch-Ring 5 Lancaster, PA, 17601 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Security Systems, Inc., 2014...
