Please read through this manual to familiarize yourself with your new ampliﬁ er. Should your PowerBass Auto-

Sound mobile ampliﬁ er ever require service, you will need to have the original dated receipt.

ASA SERIES CLASS D AMPLIFIER

Owners Manual

ASA3-600.1D

ASA3-1000.1D

ASA3-1500.1D

Table of Contents

Summary of Contents for PowerBass ASA3-600.1D

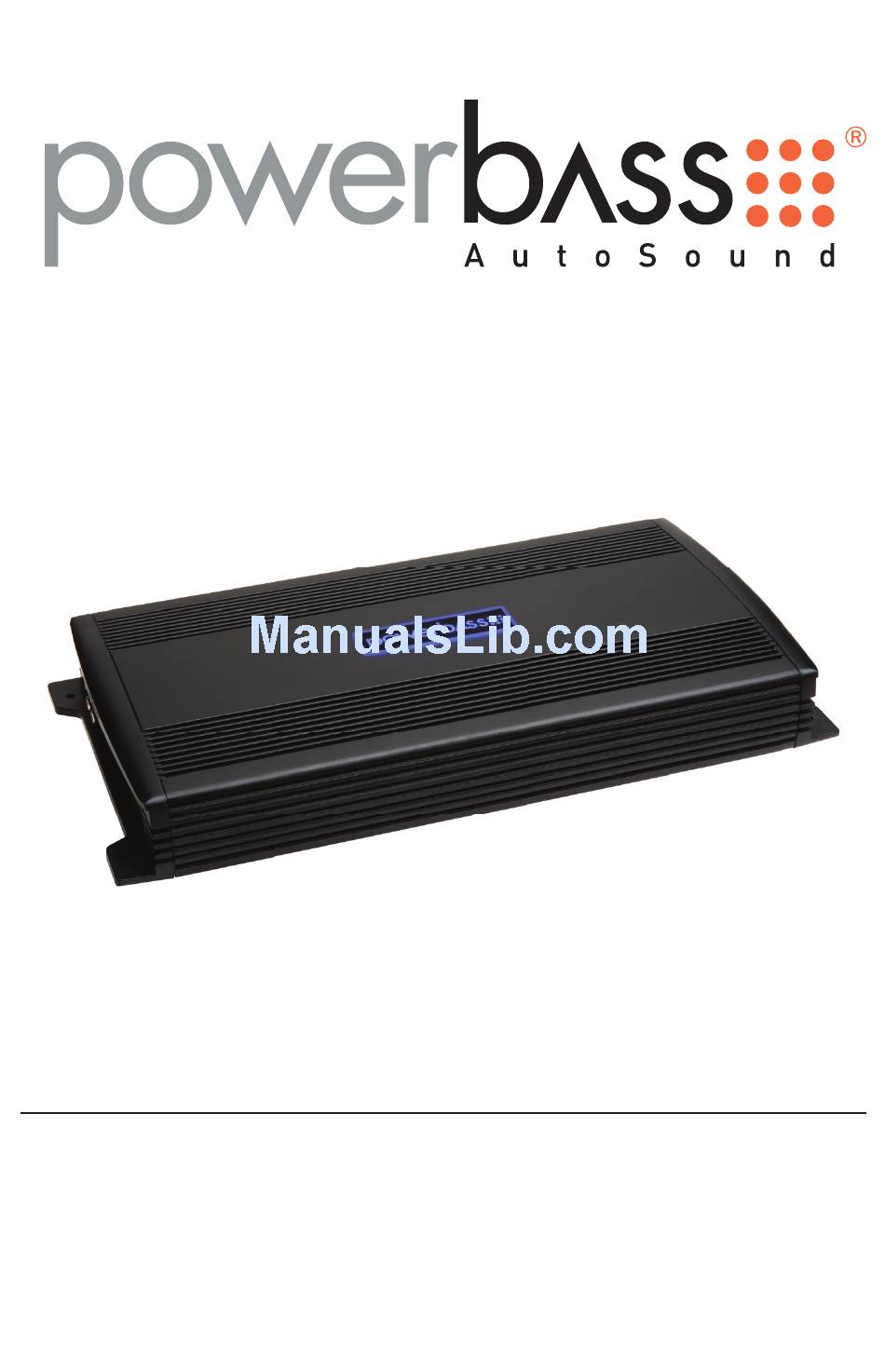

Page 1: Owners Manual
ASA SERIES CLASS D AMPLIFIER Owners Manual Please read through this manual to familiarize yourself with your new ampliﬁ er. Should your PowerBass Auto- Sound mobile ampliﬁ er ever require service, you will need to have the original dated receipt.
Page 2: Class D Amplifiers
In the interest of safety, PowerBass USA highly recommends listening at lower volume...
Page 3: Technical Features
Dual Link Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum) INSTALLATION EXPERIENCE Installation of PowerBass mobile amplifiers requires detailed knowledge of electronics wiring and proper speaker impedance. We strongly recommend installation by an authorized PowerBass dealer. This Own- ers Manual only provides general installation and operation instructions. If you have any reservations about your installation skills, please contact your local PowerBass dealer for assistance.
Page 4: Installation Precautions
MOUNTING THE AMPLIFIER Fig.1 Mounting Amplifier Due to the high power output of the PowerBass Autosound Class D amplifiers, considerable heat may be produced when the unit is in operation. For this reason the amplifier should be mounted in a location which will allow air to circulate freely.
Page 5: Mounting Location
The floor of the trunk, under a seat, or on the back of the rear seat. For alternate installation locations, please consult your authorized PowerBass Dealer. NOTE: Do not use a drill with driver bit to mount the amplifier. Excessive force could cause the plastic mounting feet to crack.
Page 6: Control Panel Layout
CONTROL PANEL LAYOUT Fig.2 Panel Layout 1. POWER/STATUS Indicator The BLUE L.E.D. lights up when the power is on. This L.E.D. turns RED constantly or flashes when the built-in protection circuitry is activated. This indicates a problem with the system in relation to the amplifier (see Troubleshooting Tips page 21).
Page 7 10. BRIDGED CONNECTION Port (RJ45 Jack) For linking two of the same model PowerBass Autosound Class D amps together. Connect the INPUT of the MASTER to a suitable source via a standard telephone wire with RJ45 modular connectors to the jack on the SLAVE amplifier.
Page 8 16. REM (Remote Input Terminal) All PowerBass AutoSound amplifiers can be turned on by applying 12 volts to this terminal. This can be found on the rear of the source unit in the form of a remote output. If this is not available you can wire to the ACC position on the key.
Page 9 Your PowerBass Autosound Class D amp will draw large levels of current, so use the largest gauge power/ ground cable as possible. Using too small of power cable can result in unnecessary over-heating of the amplifier, distortion at high volume levels and might even cause the thermal protection circuitry to shut-off the amplifier.
Page 10 BATT+ (Power) This amplifier should be wired directly to the vehicle battery using the appropriate size cable. Start at the vehicle battery and run the power cable through to the amplifier. Avoid running the power cable over engine components and near heater cores. The use of an inline fuse or circuit breaker is a must; this will prevent the risk of a potential fire caused by a short in your power cable.
Page 11 Insert the stripped (bare) portion of the wire into the terminal and tighten the screw securely. FUSE REQUIREMENTS While the panel on your PowerBass amplifier incorporates one or more fuses, these do nothing to protect the vehicle from a dangerous short circuit. It is absolutely vital that the main power lead to the amplifier(s) in the system be fused within 18-inches (45cm) of the connection to the vehicle battery.
Page 12: Rca Interconnect Wiring
RCA INTERCONNECT WIRING Fig.5 Low Level Input using RCA Choose the correct length and style of RCA interconnects for your needs. Always use high quality RCA audio cables (not supplied) for signal connections—those with multiple layers of shielding or a twisted pair variety for better noise rejection.
Page 13: Set-Up Adjustments
SET UP ADJUSTMENTS Input GAIN Adjustment GAIN Fig.6 GAIN Control This control allows you to match the input level of the amplifier to the output level of your head unit. Matching the input can be accomplished in four simple steps: Make sure that the remote level control is not plugged in until after the master gain control is set.
Page 14 Fig.10 Connection with RJ45 Jack REMOTE LEVEL Controller Connection Your PowerBass Autosound Class D amp includes a Remote Level control module. It uses standard telephone wire and telephone RJ-45 connectors. To connect the Remote Level Control to the amplifier, simply insert one end of the telephone plug into the REMOTE LEVEL port.
Page 15 SPEAKER WIRING AND CONFIGURATIONS Speaker Load Keep in mind your PowerBass Autosound Class D amp is a high power amplifier and not a high current amplifier. In other words it requires a minimum impedance of 1 ohm. If you are unsure of calculating impedance loads please consult your Authorized PowerBass Autosound Dealer before damaging your amplifier.
Page 16 Speaker Output Configurations 1. A SINGLE VOICE COIL SUBWOOFER SPEAKER Fig.11 A Single Voice Coil Subwoofer (1~4 ohm) 2. TWO SINGLE VOICE COIL SUBWOOFER SPEAKERS (Note: Don’t connect speaker impedance under 2 ohms) Fig.12 Two 4 ohm Subwoofers with Single Voice Coil...
Page 17 Class D model amplifiers. Improper wiring can cause severe damage to BOTH the woofer and the amplifier. Detailed wiring diagrams are supplied with all PowerBass woofers. IF YOU ARE NOT EXPERIENCED OR UNCOMFORTABLE READING THE WIRING DIAGRAMS CONSULT YOUR AUTHORIZED...
Page 18 4. DUAL LINK AMP TO AMP BRIDGED CONNECTION You can connect two of the same model number ASA3 Series amplifiers and double the output power into a minimum 2-ohm load (do not mix two different model amplifiers or trouble will occur). IMPORTANT –...
Page 19 MASTER AMP SIDE PANEL SLAVE AMP SIDE PANEL Fig.15 Dual Link Speaker connection (minimum 2 ohm load) SPEAKER CONNECTION FOR BRIDGING TWO AMPS The mono woofer must be connected between the speaker (+) terminals of the two amplifiers and use at least #12 gauge speaker wiring as shown above.
Page 20: Recommended Wire Sizes
Miscellaneous: ______________________________________________________ This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. © Copyright 2014 PowerBass USA, Inc.
Page 21: Troubleshooting Tips
NOTE: If the Status L.E.D. is activated and glows RED with no speakers connected to the amplifier, and all the power connections are correct, this would indicate an internal problem with the ampli- fier. Contact PowerBass USA or your local dealer.
Page 22 SPECIFICATIONS FOR AUTOSOUND D CLASS AMPLIFIERS PowerBass Autosound Class D Models ASA3-600.1D ASA3-1000.1D ASA3-1500.1D Power Output @ 14.4 VDC Input • 4 Ohms RMS at THD 0.5% 200W x 1 400W x 1 500W x 1 • 2 Ohms RMS at THD 0.5%...
Page 23 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
Page 24 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
