ATTENDANT OPERATED WHEEL LOCKS
FOR 2000,4000 RECLINER WHEELCHAIRS -
KIT NUMBERS 7400036 AND 7400037
NOTE: Check ALL parts for shipping damage. In case
of shipping damage, DO NOT use. Contact Carrier/
Dealer for further instruction.
SAFETY SUMMARY
The following recommendations are made for safe in-
stallation and adjustment of the Attendant Operated
Wheel Locks:
GENERAL WARNINGS
DO NOT install or use this equipment without
first reading and understanding this instruction
sheet. If you are unable to understand the Warn-
ings, Cautions or Instructions, contact a health-
care professional, dealer or technical person-
nel before attempting to install this equipment
- otherwise, injury or damage may occur.
DO NOT attempt to stop a moving wheelchair
with the wheel locks. WHEEL LOCKS ARE NOT
BRAKES.
INSTALLATION WARNING
After making adjustments and BEFORE use,
make sure all attaching hardware is securely
tightened.
REPLACING THE ATTENDANT
OPERATED WHEEL LOCKS

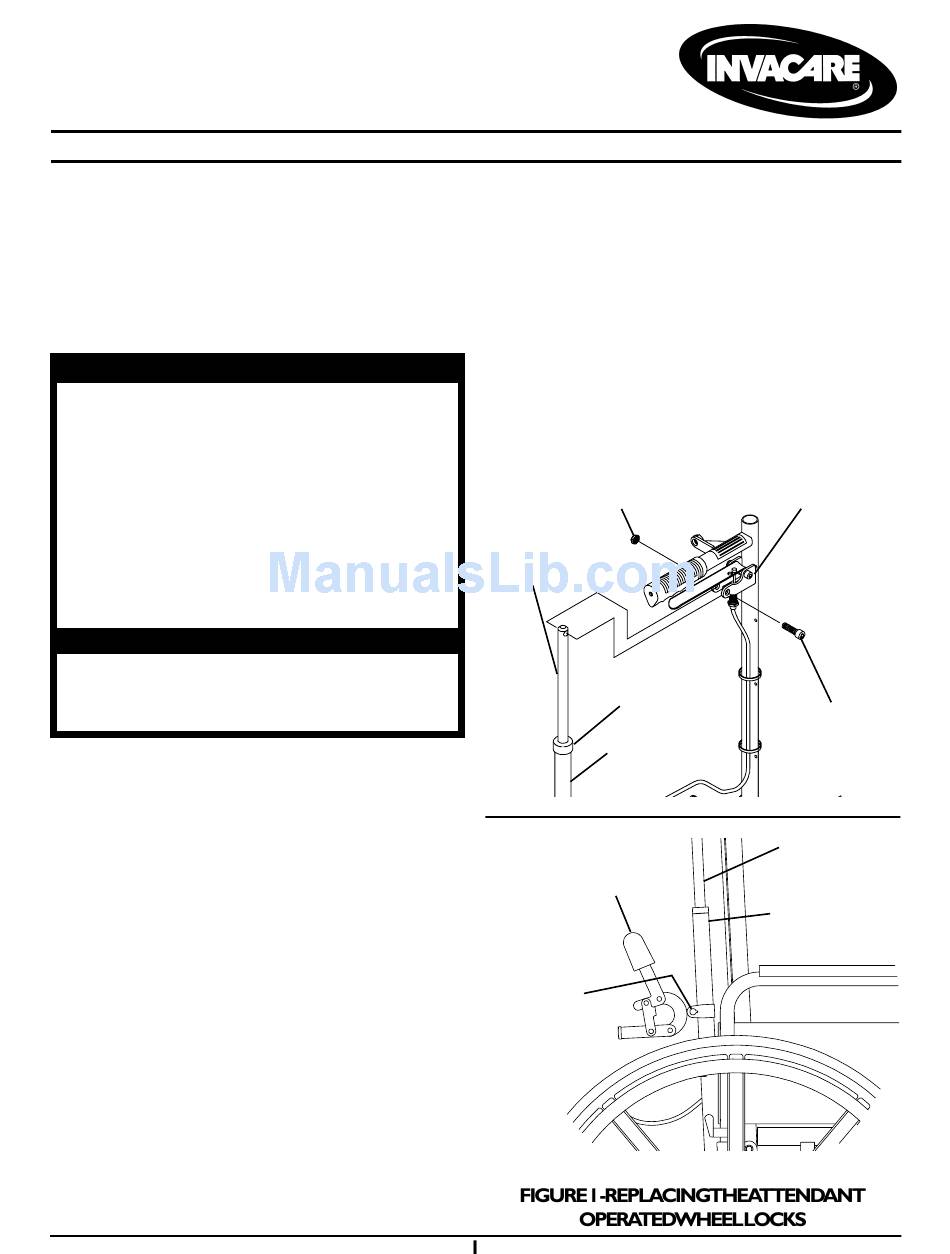

(FIGURE 1)
NOTE: Refer to INSTALLATION WARNING in the
SAFETY SUMMARY in this instruction sheet.
1. Remove the mounting screw and locknut that se-
cures the locking rod to the back tube mounting
bracket.
2. Slide anti-rattle up and off of locking rod.
3. Perform one (1) of the following:
a. If converting from Patient Operated Wheel
Locks, proceed to STEP 6.
b. If replacing current Attendant Operated Wheel
Locks, continue with STEP 4.
4. Loosen the locknut that secures the attendant op-
erated wheel lock to the recliner tube.
5. Slide the existing attendant operated wheel lock
up and off of the locking rod.
Installation, Assembly and Operating Instructions
6. Slide the NEW attendant operated wheel lock
down locking rod and onto the recliner tube.
7. Reposition the anti-rattle on top of recliner tube.
8. Resecure the locking rod to the back tube mount-
ing bracket with the existing mounting screw and
locknut. Securely tighten.
9. Adjust the Attendant Operated Wheel Lock. Re-
fer to ADJUSTING THE ATTENDANT OPER-
ATED WHEEL LOCKS in this instruction sheet.
10. Repeat STEPS 1-9 for opposite wheel lock, if nec-
essary.
Locknut
(STEPS 1,8)
Locking Rod
(STEPS 1,2,5,6,8)
Anti-Rattle
(STEPS 1,7)
Recliner Tube
(STEPS 4,6,7)
Attendant Operated
Wheel Lock
(STEPS 4-6)
Locknut
(STEP 4)
BackTube
Mounting
Bracket
(STEPS 1,8)
Mounting
Screw
(STEPS 1,8)
Locking Rod
(STEPS 1,2,
5,6,8)
Recliner Tube
(STEPS 4,6,7)
