Invacare 91-2 Assembly, Installation And Operating Instructions

Shower Chairs
Assembly, Installation and Operating Instructions
NOTE: Check ALL parts for shipping damage. If shipping damage is noted, DO NOT use. Contact carrier/dealer for further instruction.
• DO NOT install or use this equipment without first reading and understanding these instructions. If you are unable to
understand the Warnings, Cautions or Instructions, contact a healthcare professional, dealer or technical personnel
before attempting to use this equipment - otherwise, injury or damage may occur.
• All four leg tips MUST be in contact with shower/tub floor at all times.
• ALWAYS inspect the shower chair to ensure that it is properly positioned and stable before using. DO NOT use if
shower chair is wobbly or unstable.
• Ensure that the snap buttons fully protrude through their respective adjustment holes.
• Check leg tips for rips, tears, cracks or wear. If any of these conditions exist, replace leg tips IMMEDIATELY.
• Users with limited physical capabilities should be supervised or assisted when using the shower chair.
• The shower chair is not to be used as a transfer bench, transfer device or climbing device.
• Exercise caution when assembling the chair to avoid pinching.
• After ANY adjustments, repair or service and BEFORE use, make sure that all attaching hardware and parts are secure.
• Ensure that all four chair legs are adjusted to the same height, and that all height adjustment buttons protrude fully
through adjustment holes before use.
• ALWAYS observe the weight limit on the labeling of your product. Check that all labels are present and legible. Replace
if necessary.
• Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accesso-
ries designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invac-
are products.
Shower Chair Models
MODEL DESCRIPTION
91-2 Shower Chair
96-2 Shower Chair with Back
9981 Folding Shower Chair with Back
9785-1 Bariatric Shower Chair with Back
9785-2 Bariatric Shower Chair with Back
Assembling the Shower Chair
NOTE: Not all procedures apply to all chair types. Refer to the chair type
to verify if the procedure applies before attempting any procedure.
NOTE: For this procedure, refer to FIGURE 1.
• For models 96‐2 (DETAIL "A") or 9785‐1 and 9785‐2 (DETAIL "B"):
1. Put the shower chair on its side on a flat, stable surface.
2. Press the snap buttons on the back support tubes and slide the
back support tubes into the back support brackets on the leg
frame until both snap buttons are fully engaged inside the
holes in the back support brackets.
NOTE: Two audible "clicks" will be heard.
Installing/Adjusting the Leg Extensions
NOTE: For this procedure, refer to FIGURE 1 and FIGURE 2.
1. Install the leg extension onto the leg (FIGURE 1).
2. Press the snap button and slide leg extension up or down to
desired adjustment hole (FIGURE 2).
3. Ensure the snap button protrudes fully through the adjustment
holes of the leg extension.
NOTE: There will be an audible click when the snap button fully engages.
4. Repeat STEPS 1 ‐ 3 for the other legs.
NOTE: Make sure that all four legs are adjusted to the same height.
For more information regarding Invacare products, parts, and services, please visit www.invacare.com
Part No 1145752
SAVE THESE INSTRUCTIONS
WARNING
ACCESSORIES WARNING
WEIGHT LIMITATION
315 lb (143 kg)
315 lb (143 kg)
250 lb (114 kg)
700 lb (318 kg)
700 lb (318 kg)
DETAIL "A" - MODEL 91-2 AND 96-2
Back Support Tubes
Leg
DETAIL "B" - MODEL 9785-1 AND 9785-2
Back Support Tubes
Back Support

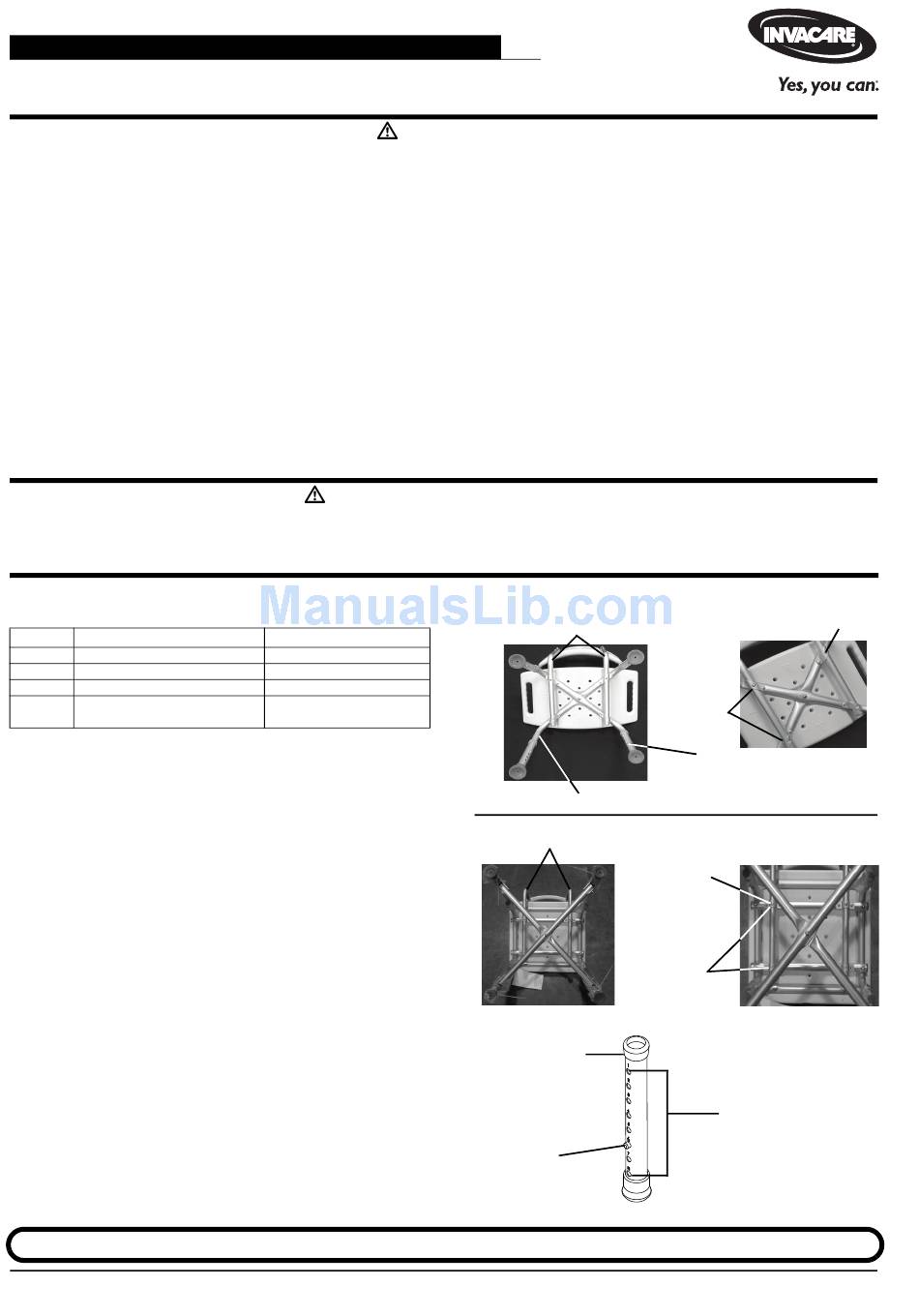

FIGURE 1 Assembling the Shower Chair
Leg Extension
Snap Button
FIGURE 2 Installing/Adjusting the Leg Extensions
1
Snap Button
Back Support
Brackets
Leg
Extension
Snap Button
Brackets
Height Adjustment
Holes
Shower Chairs
