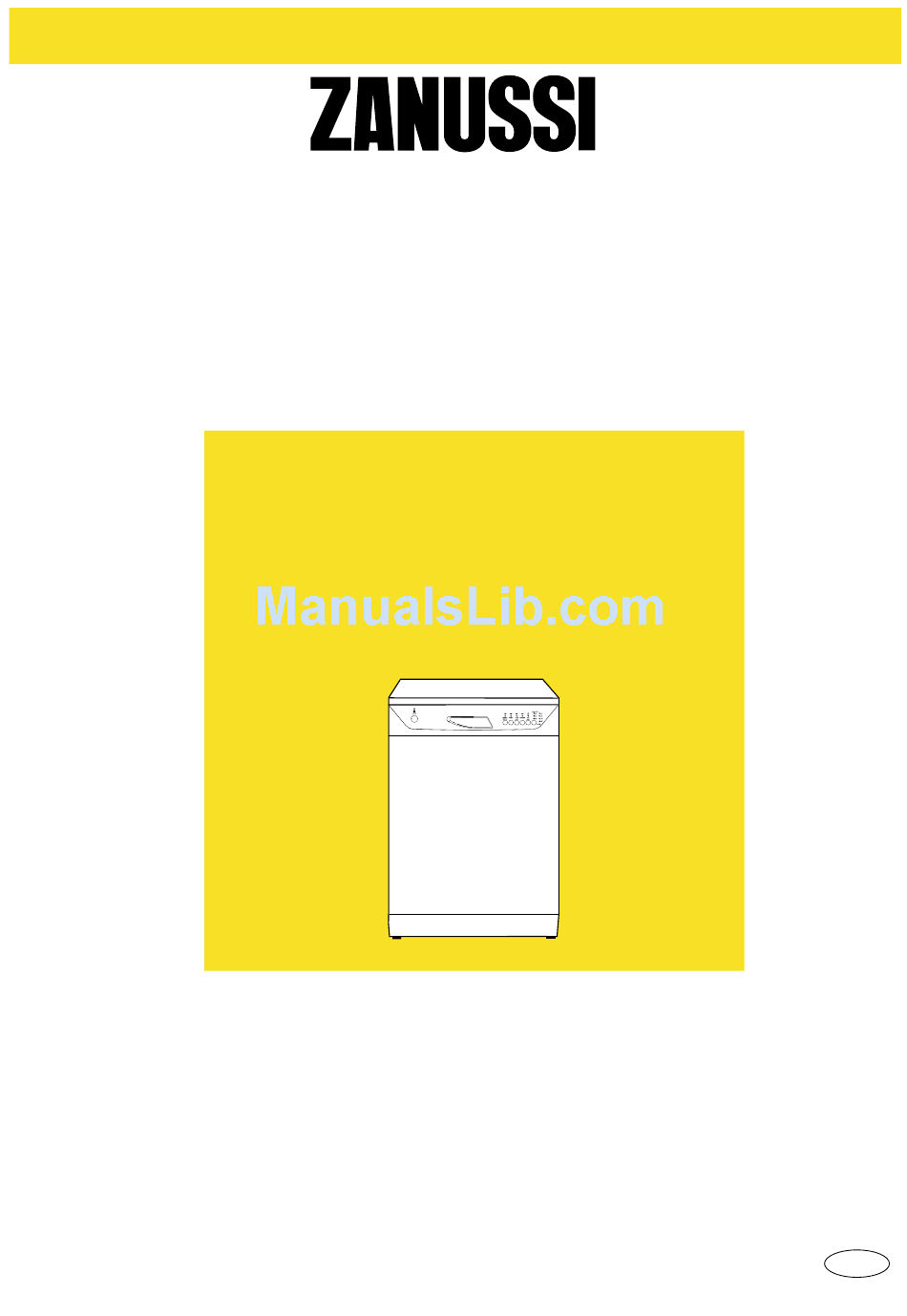

- Page 1 DISHWASHER DE 6744 DE 6744 S INSTRUCTION BOOK 152977 28/1...
-
Page 2: Table Of Contents
Contents For the user For the installer Important safety information Installation instructions Water supply connections Description of the appliance Water outlet hose connection Electrical connection The control panel Adjusting the worktop Before use Fitting under a counter Setting the water softener Levelling Rinse aid Using your appliance... -
Page 3: Important Safety Information
Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 4: Description Of The Appliance
Description of the appliance IN78 Levelling spacers 10. Lower spray arm Upper basket stop 11. Upper spray arm Salt container 12. "SID" detergent dispenser (Super Intensity Dispenser) Large filter 13. Upper basket Detergent dispenser 14. Worktop Control panel Rating plate Rinse aid dispenser Central filter... -
Page 5: The Control Panel
The control panel 1. ON-OFF indicator light 7. Indicator lights Phase indicator lights 2. ON-OFF push button Washing phase illuminates when the washing phase is running 3. Door handle Drying phase illuminates when the drying phase is running 4. Programme selection push End of programme illuminates when the washing programme buttons... -
Page 6: Before Use
Before use Before using your dishwasher for the first time: 1. Ensure that the electrical and water connections comply with the installation instructions 2. Remove all packaging from inside the appliance 3. Set the water softener 4. Pour 1 litre of water inside the salt container and then fill with salt 5. - Page 7 The current level is indicated by the number of flashes made by the INTENSIVE SID 80 indicator light, that alternates 5 seconds off with a number of flashes, this for about 60 seconds. Example: 1 flash = level 1 2 flashes = level 2 3 flashes = level 3 4 flashes = level 4 5 flashes = level 5...
-
Page 8: Filling With Salt
Filling with salt Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. -
Page 9: Rinse Aid
Rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting. -
Page 10: Using Your Appliance
Using your appliance Loading your appliance Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance. Do not load very small items which can fall through the baskets. Open the door and slide out the baskets to load the UI48 dishes. -
Page 11: The Cutlery Basket
The cutlery basket Long bladed knives stored in an upright position are a potential hazard. These items should only be placed in the removable knife basket. Take care when loading or unloading sharp items such as knives. Removable knife basket Long and/or sharp items of cutlery such as carving knives must be placed horizontally in the UI53... -
Page 12: Adjusting The Height Of The Upper Basket
In case that plates are loaded in the upper basket: load them starting from the rear positions of the basket; tilting them slightly forwards and avoiding the front positions near the door. US71 Adjusting the height of the upper basket If washing very large plates (over 27 cm and up to 32 cm in diameter) you can load them in the lower basket after moving the upper basket to the higher position. -
Page 13: Use Of Detergent
Use of detergent Only use detergents specifically designed for use in dishwashers. We recommend the use of Finish detergents which are available in the following options: Finish Double Action Tablets. Each tablet has the exact amount of detergent required, simply place in the dispenser. -
Page 14: Hints And Tips
Hints and tips To save energy Items not suitable for dishwashers Place dishes in the machine immediately after every The following items should not be washed in the meal and wait until the dishwasher is full before dishwasher (unless they are sold as dishwasher washing. -
Page 15: Washing Programmes
Washing programmes Type of load Degree of soil Required Recommended Cycle quantity of detergent push buttons description wash prewash Hot prewash ON-OFF Heavy soil. Main wash up to 70°C 70° Crockery, cutlery, 20 g 10 g 1 cold rinse 1 hot rinse INTENSIVE SID 80 INTENSIVE SID 80 pots and pans... -
Page 16: Operating Sequence
Operating sequence Check the filters 8a. Setting and starting the programme without DELAY Ensure they are clean and properly positioned (see "Maintenance and cleaning"). START Press the push button corresponding to the required programme: the indicator light Press the ON-OFF push corresponding to the programme illuminates button and the phase indicator lights for that... - Page 17 During the countdown the only indicator lights Empty the lower basket first and then the upper illuminated are the programme light and the one; this will avoid water dripping from the light of the number of hours to the start of the upper basket onto the dishes in the lower one.
-
Page 18: Maintenance And Cleaning
Maintenance and cleaning Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash without dishes using detergent. -
Page 19: External Cleaning
Check that the SID is not clogged with detergent residue. If necessary rinse it under running water after having removed it from the basket by twisting it anticlockwise and pulling it upwards. Fasten it back onto the support by turning it clockwise. -
Page 20: Something Not Working
Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. The dishwasher is fitted with a number of alarm systems which can help you to quickly determine the cause of any problems. -
Page 21: Protection Against Flooding
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door (see picture). Protection against flooding Prod.No. -
Page 22: Hints For Test Centres
Hints for test centres Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser. Test standard EN 50242 Reference programme: ECONOMY 50° Load: 12 standard place settings Rinse aid selector: position 5 Detergent dosage :... -
Page 23: Installation Instructions
Installation instructions Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. Remove all packaging before positioning the machine. -
Page 24: Water Outlet Hose Connection
Water outlet hose connection The end of the drain hose can be connected in the following ways: 1. To the sink outlet spigot, securing it if necessary with a clip. 2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm. The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher. -
Page 25: Electrical Connection
Electrical connection This appliance must be earthed. The manufacturer declines any responsibility should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted. -
Page 26: Adjusting The Worktop
Fitting under a counter (kitchen worktop or sink) By removing the machine’s worktop, you can install it under a close fitting sink unit or a pre-existing top, providing the dimensions of the recess correspond to those shown in the picture. Proceed as follows: Remove the machine’s worktop by unscrewing the two rear retaining screws, pull from the front and... - Page 28 From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
