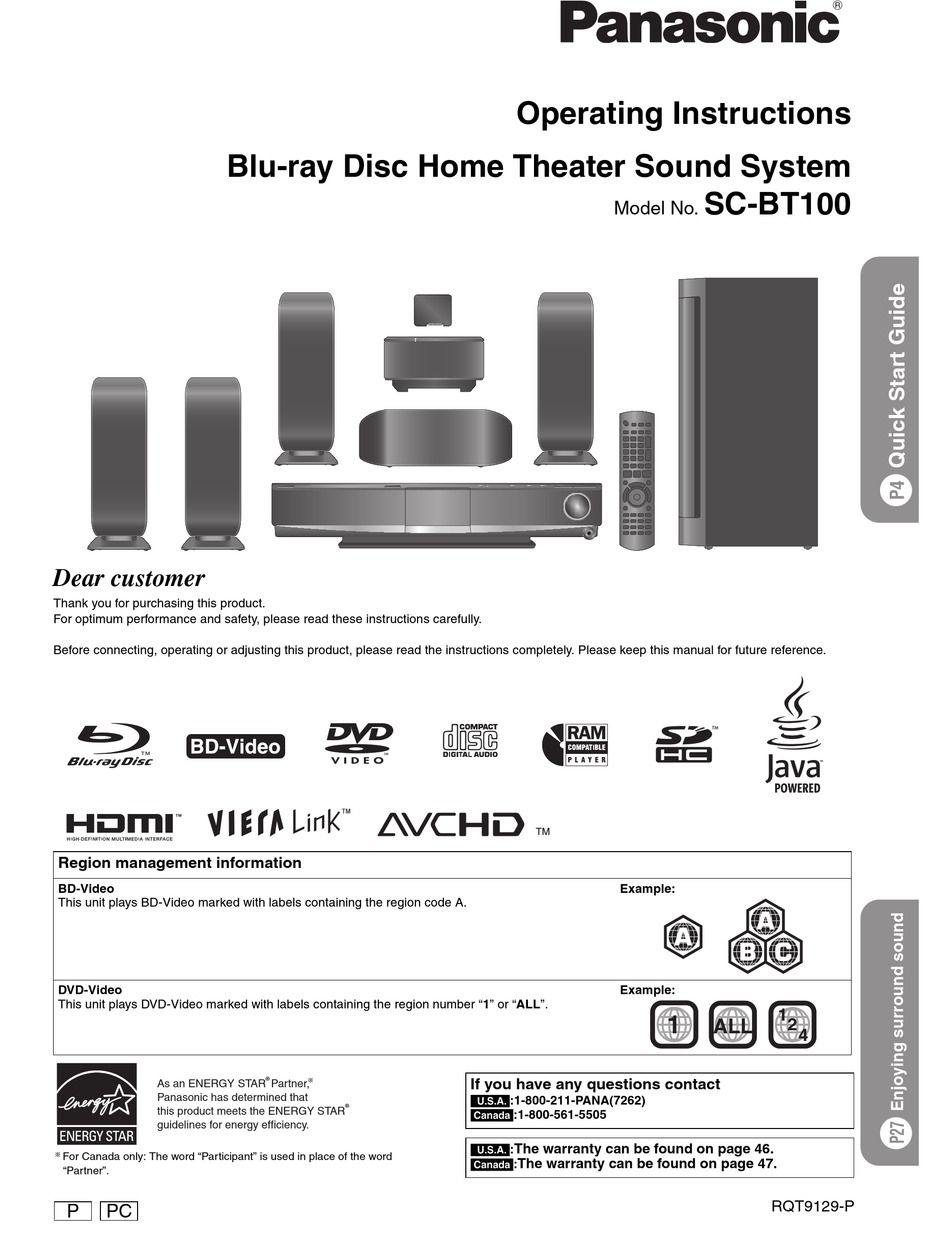

Blu-ray Disc Home Theater Sound System
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.
Region management information
BD-Video
This unit plays BD-Video marked with labels containing the region code A.
DVD-Video
This unit plays DVD-Video marked with labels containing the region number "1" or "ALL".
As an ENERGY STAR Partner,
Panasonic has determined that
this product meets the ENERGY STAR
guidelines for energy efficiency.
For Canada only: The word "Participant" is used in place of the word
"Partner".
P
PC
®
®

Operating Instructions

Model No.
Example:
Example:
If you have any questions contact
[[U.S.A.]:1-800-211-PANA(7262)
[Canada]:1-800-561-5505
The warranty can be found on page 46.
[[U.S.A.]:
The warranty can be found on page 47.
[Canada]:
SC-BT100
1
1
2
ALL
4
RQT9129-P
