Summary of Contents for Flymo Chevron 34C

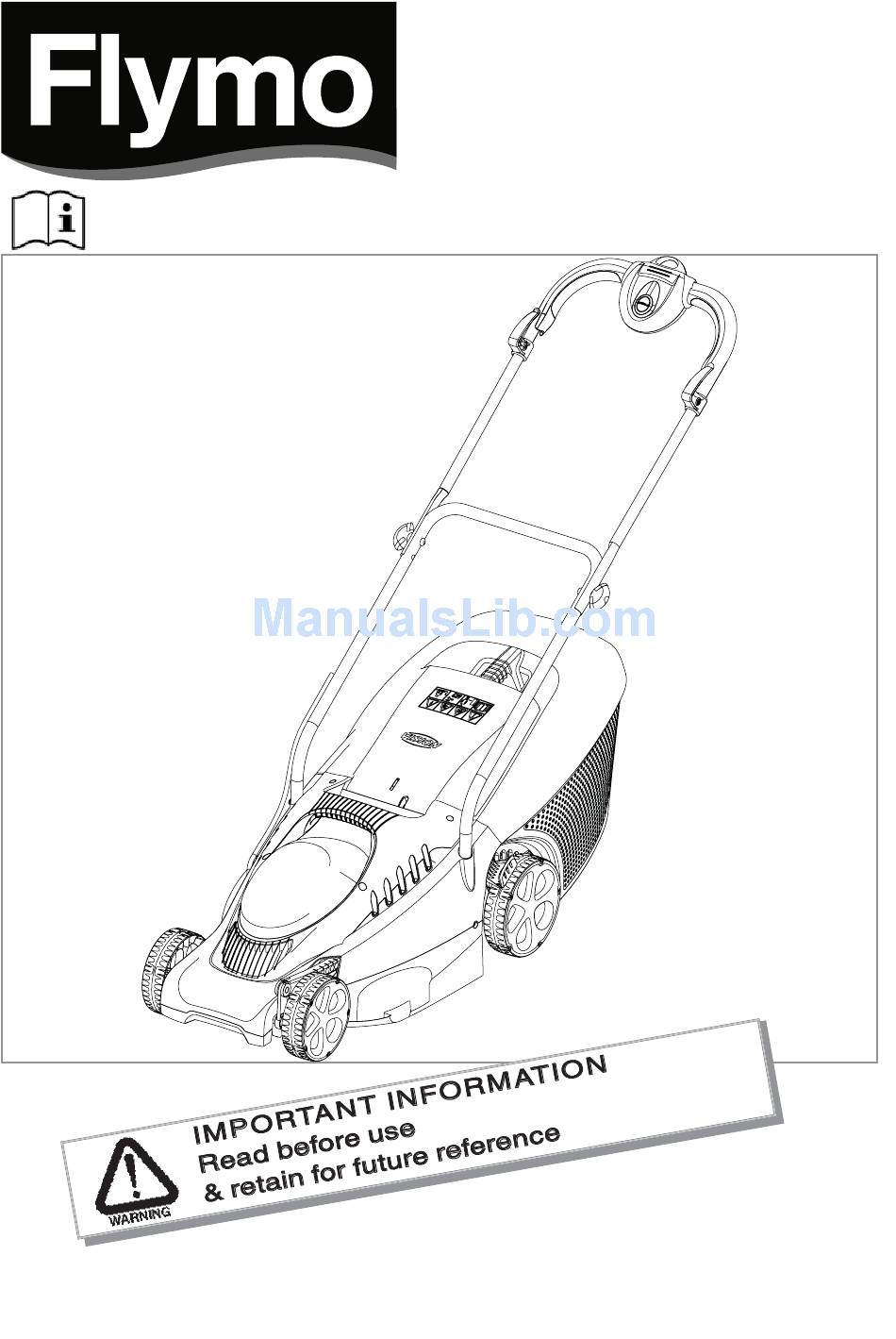

- Page 1 ® Chevron 34C Chevron 34VC Original Instructions...
-
Page 2: Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT:- Husqvarna Australia PTY Ltd Customer Service Department direct:- Telephone : 024352 7400 Husqvarna New Zealand Ltd. Customer Service Department direct:- Telephone : 9920 2410... - Page 3 2. Keep all nuts, bolts and screws tight to be sure the lawnmower is in safe working condition. 14. Flymo Products are double insulated to EN60335. Under no circumstance should an earth be connected 3. Check the grassbox frequently for wear or deterioration.
-
Page 4: Assembly Instructions
Assembly Instructions When received from the Manufacturer, the wheels are in a raised position. Do not switch on the product before removing from the raised posi- tion into position 5. Assembly of Lower Handles to Deck 1. Insert lower handles into the deck and push down (B). 2. -
Page 5: Cutting Height Adjustment
Grassbox Fitting Fully Assembled Grassbox to Lawnmower. Lift safety flap (G1) Make sure the discharge chute is clean and free from debris (G2) Locate fully assembled grassbox onto 2 location points (G3) at the rear of the deck as illustrated in pic. -
Page 6: Starting And Stopping
Starting and Stopping To Start your Lawnmower To ensure you have a secure connection between the lawnmower and the extension cable we strongly recom- mend you use the following method of attaching the cable: 1. Plug the short connection lead into the socket of the extension cable. -
Page 7: Removing And Fitting The Blade
Removing and Fitting the Blade Switch off, wait until the blade has stopped rotating and blade bolt disconnect from the mains electricity supply BEFORE at- blade tempting to remove or refit the blade. washer Always handle the blade with care - sharp edges could cause injury. -
Page 8: Fault Finding Hints
Fault Finding Hints Fails to Operate Excessive Vibration 1. Is the correct Starting procedure being followed? See ‘To 1. Disconnect from the mains electricity supply. Start your Lawnmower’ 2. Check that the blade is fitted correctly? 2. Is the Power Turned On? 3. -
Page 9: Replacement Parts
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Copyright © 2010 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or un- registered trademarks of Flymo S.A...
