Summary of Contents for CDA ci971

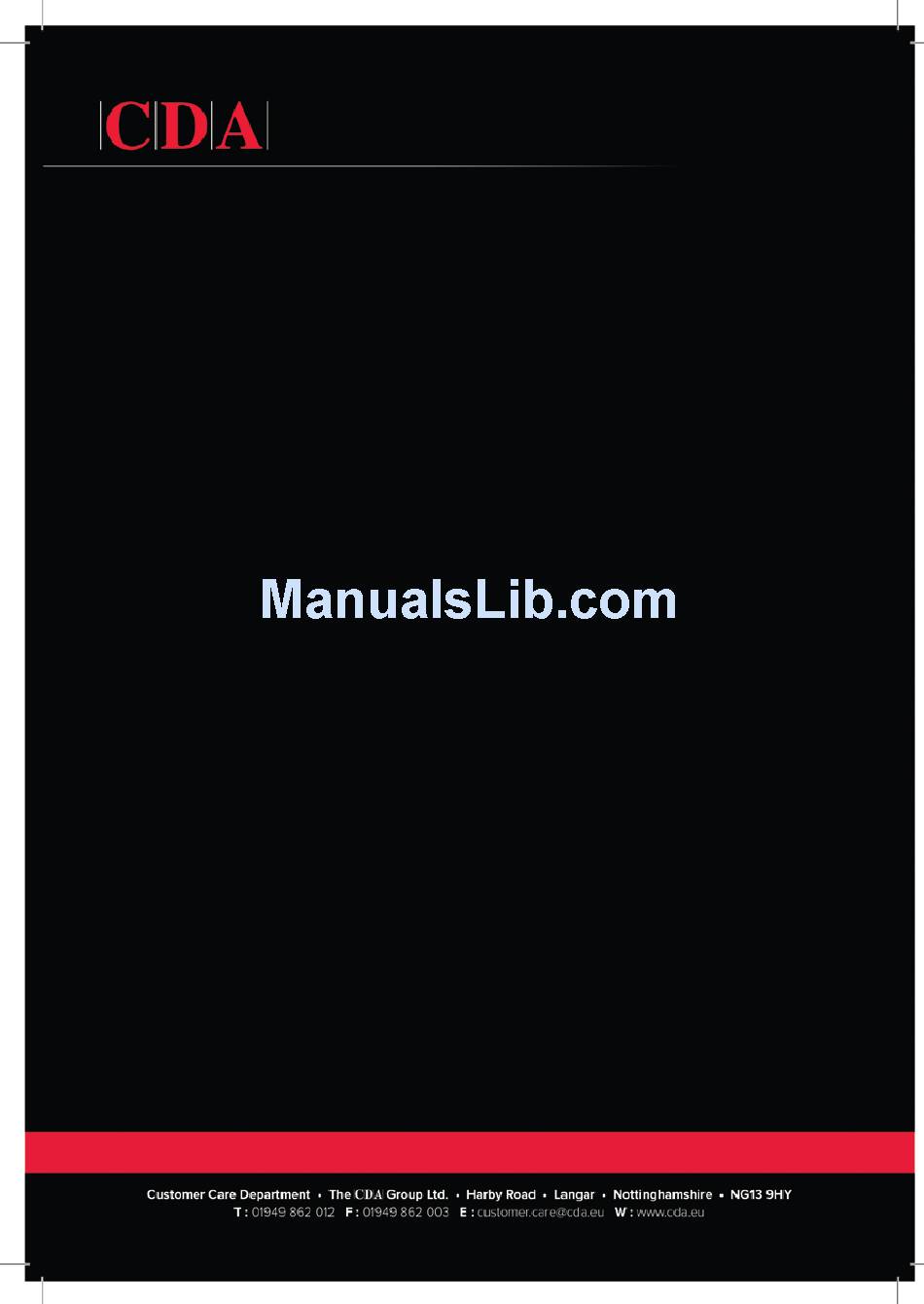

- Page 1 Washer Dryer 7 + 4kg 1400 Spin Manual for Installation, Use and Maintenance...
-
Page 2: Table Of Contents
Contents Contents ......................2 Important ......................3 Safety Warnings ....................4 Warnings ......................5 Recommendations ..................6 Before First Use ....................7 Control Panel ....................9 Opening the Door ..................10 Using the Appliance for Washing ............10 Child Lock ......................19 Opening the Appliance in an Emergency .......... -
Page 3: Important
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model... -
Page 4: Safety Warnings
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. -
Page 5: Warnings
• In case of any failure, first unplug the appliance and close the water tap. • Repair on this appliance should only be undertaken by suitably qualified personnel. • Keep the packing materials away from children to prevent risk of injury. •... -
Page 6: Recommendations
and earth connections meet the local regulations and/or other applicable regulations. Important: Ensure that the transit bolts have been removed prior to using the machine. Recommendations • Residues of detergent or softener left in the detergent drawer for long periods will dry and stick to the detergent drawer. -
Page 7: Before First Use
Before First Use When your washer dryer has been correctly installed, we recommend that you pre-clean the machine. This is to check that the installation, the connections and the drainage are all correct, and to thoroughly clean the inside of the washer dryer before any wash programmes are run. - Page 8 • We recommend loading the washer dryer to its full capacity for best water and energy efficiency. Whenever possible, we recommend that you wash garments of different sizes within the same wash programme. This improves the washing action and also aids the correct distribution of the garments in the drum when spin-drying, and the washer dryer will therefore be quieter.
-
Page 9: Control Panel
Control Panel Display: shows the settings (spin speed, cycle status, timer, child lock on/off, maximum recommended weight). The settings can be modified using the buttons underneath. Buttons: Spin speed selection Option selection Confirm option Delay timer Drying Start / Pause Programme selector... -
Page 10: Opening The Door
Opening the Door The appliance is fitted with a safety device which prevents the door from being opened while a programme is in progress. Check that all the water has been drained from the tank and the drum is at a standstill. Warning: If the washing programme is interrupted, it will be from 3 to 15 minutes before the door can be opened, depending on the temperature reached inside the appliance. - Page 11 Adding Detergents and Additives Your washer Dryer’s detergent dispenser has three compartments, marked with symbols: For prewash detergent For main wash detergent For fabric conditioner, starch or other additives. • The main wash detergent compartment has a tang allowing the use of liquid detergent.
- Page 12 desired effect with optimal detergent consumption. • On detergent packs the recommended dose is indicated for 4 levels of water hardness and for loads of 4-5 kg of washing with average dirt levels. Detergent Doses Laundry with Normal Dirt • Choose a programme without prewash. •...
- Page 13 Descalers • Descalers can be added to the prewash and main wash compartments as recommended by their manufacturers. • Place the detergent in the compartments first, followed by the descaler. Selecting the Washing Programme To switch on the appliance and select the programme, proceed as follows: Turn the “Programme Selector”...
- Page 14 Selecting and Confirming Options Options Option selection Confirm option Start / Pause The Option Selection button can be used to select the following options in sequence (from the top down): Prewash: Adds a stage before the main wash, lasting about 20 minutes at a temperature of 35°C.
- Page 15 Easy iron: Produces items which are less creased and easy to iron. Extra rinse: Adds a rinse to the selected washing programme. Flexi Time: Reduces the duration of the cycle. When selected (by pressing the “Confirm Option” button) the display shows one bar less and the cycle time will be reduced of about 20%.
- Page 16 Delay Timer Delay Timer Symbol Start / Pause Symbol Start / Pause Delay Timer Button The “Delay Timer” button can be pressed repeatedly to select the time after which the washing programme will end. The time left before the end of the cycle calculates the initial duration of the washing cycle, the settings made (temperature, spin speed and options) which may shorten or lengthen the cycle's initial duration, and the...
- Page 17 Starting the Wash Programme To start the washing programme (after making the settings you want) press the “Start/Pause” button. Once the cycle has started, the display shows the time remaining before the end of the cycle and the “Start/Pause” symbol on the display is constantly on. During the washing/drying programme, the symbols which identify the various phases light up: Cycle phase symbols:...
- Page 18 To change the washing programme, simply turn the “Programme Selector” knob to select the new programme; there is no need to set the appliance in pause status. The new cycle will be carried out completely, beginning from the start. If the tank had already been filled with water during the previous cycle, the water intake phase will be omitted from the new programme.
-
Page 19: Child Lock
Child Lock When this function is activated, changing options, temperature, spin speed and the washing/drying cycle is not possible while the cycle is in progress. Child Lock Symbol To activate the “Child Lock” function, press the “Option Selection” (1) button and hold it down. Also press the “Confirm Options”... -
Page 20: Opening The Appliance In An Emergency
Opening the Appliance in an Emergency In the event of a power failure, the door can be opened using the mechanical release, activated by means of the lever in the bottom of the appliance: Turn the “Programme Selector” knob to “Off” and disconnect the power supply plug from the socket. -
Page 21: Using The Appliance For Drying
Using the Appliance for Drying General During drying cycles, the water tap must be turned on and the drain hose correctly positioned. This appliance can be set to perform wash only, dry only and wash-and-dry programmes. In the wash-and-dry programme, the appliance switches from washing to drying automatically, with no need to use the controls (at the end of the wash) to obtain the complete cycle. - Page 22 been washed and spun-dried. • After drying particularly fluffy items such as new terry towels, the "Rinse" program should be carried out to ensure that any deposits left by the fabric are removed, and are not deposited on the clothes in the next wash. Important: Do not dry delicate fabrics that will not withstand a temperature of 60°C or any fabrics which will not withstand the selected temperature.
- Page 23 Drying Symbol Drying Button Whether drying will be at the normal temperature (90°C) or the delicate fabrics temperature (60°C) depends on the washing programme set previously. Once a drying time has been set, the symbol on the display flashes; it remains constantly on once the cycle enters the drying stage.
- Page 24 Note: • Since no washing programme has been set previously, there are no constraints on selection of the drying programme (normal or gentle). Remember that normal drying is recommended for cotton and coloureds, and gentle drying for synthetic and delicate items. •...
- Page 25 Clean Programme To keep the appliance operating at peak efficiency over time, it has a “Clean” programme for regular cleaning of the drying circuit to remove any fluff deposits. 1. After a given number of drying cycles, the “Clean” symbol lights up on the display to warn that this programme needs to be run.
-
Page 26: Programme Listing
Programme Listing Options Cottons Cold Normal 40° Normal 60° Normal 90° Normal Wool Cold 30° Rinse Spin Drying Programmes 90°... - Page 27 Detergent Compartments Delicate coloureds with light Cold wash, rinses and final spin at the selected speed dirt Delicate coloureds with Wash at 40°C, rinses and final spin at the selected speed normal dirt Tough coloureds with normal Wash at 60℃, rinses and final spin at the selected speed ...
-
Page 28: Care And Maintenance
Care and Maintenance Before beginning any care or maintenance, you should always disconnect the appliance from the electricity supply, and also turn off the water supply. If a programme has been run recently, wait for the water in the appliance to cool down to prevent risk of scalding. Cleaning the Outside of the Appliance •... - Page 29 Cleaning the Door Seal Check regularly that there are no paper clips, buttons, nails or pins in the folds of the door gasket. Cleaning the Drain Pump The drain pump only needs cleaning if the water is not being pumped out efficiently. This may happen if it has been blocked by buttons, brooches or similar objects.
- Page 30 • Clean the pump and remove any foreign bodies. • Also check the inside “E”, making sure that the impeller turns freely; any foreign bodies stuck in it must be removed. • Screw the cover back on the pump. • Secure the drain house by snapping the plug back into place "C".
- Page 31 Water intake filters There are filters on the tap side of the water inlet hose and at the ends of the water inlet valves. These filters prevent ingress of dirt or foreign objects into the machine through the water supply. These filters should be cleaned approximately once a year to ensure there is no interruption in the water supply to the machine.
-
Page 32: Practical Information
Practical Information Alcoholic Beverages: The stain should first be washed with cold water, then wiped with glycerine and water and be rinsed with water mixed with vinegar. Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96 degrees) mixed in 2 units of water and then washed with lukewarm water. - Page 33 Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%). Ink: Hold the stained area under cold water and wait until the inky water completely runs off.
-
Page 34: Troubleshooting
Suggested Action Door not closed properly: Try reclosing it. Aqua stop device tripped: Cut off power supply, turn off water tap and contact CDA Customer Care. Water not taken in for washing: See troubleshooting table below. Water not pumped out: See... -
Page 35: Troubleshooting Table
Troubleshooting Table Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact Customer Services. Problem Suggested Checks Appliance does not start Plug is properly connected to socket Door is securely closed “Start/Pause”... - Page 36 Problem Suggested Checks Appliance does not spin Anti-imbalance safety device tripped because laundry not evenly distributed in drum. If laundry is still wet at end of cycle, rearrange it in the drum by hand and repeat spin programme only “Start/Pause” button has been pressed Emptying water from drum In the event of a power blackout, or...
-
Page 37: Installation
Installation Transit bolts and plastic spacers, located at the rear of the appliance, must be removed prior to using the appliance to prevent damage. • Loosen the transit bolts using a 10mm spanner by turning them anticlockwise and then remove them. - Page 38 Leveling 1. On appliances with adjustable rear feet, note that the rear of the appliance (as supplied) rests on skids and not on the feet. 2. Before positioning the washer dryer, check that the rear feet are screwed fully in, to prevent damage as the appliance is shifted into position.
- Page 39 Connecting to the Mains Water Supply 1. Check that the water supply pressure is in the range: 0.1- 1.0MPa. With higher pressures, use a pressure reducer. 2. Connect the cold water supply hose (blue screw collar) to the cold water tap with ¾” gas threaded connector, taking care to tighten firmly to prevent leaks.
-
Page 40: Electrical Information
• After connecting the water supply, check to ensure there are no leaks. The drain hose must be securely fastened to the outlet to prevent any risk of the drain hose becoming detached and causing flooding. Once the appliance is connected to the water supply and the drain connection, ensure that the water inlet and drain hoses are not folded, twisted, crushed or elongated by stretching when moving the appliance into position. - Page 41 Important: Do not use the appliance without the fuse cover in position. How to Connect an Alternative Plug If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to prevent the risk of electric shock.
-
Page 42: International Washing Signs
International Washing Signs... - Page 43 NOTES:-...
- Page 44 brackets.
