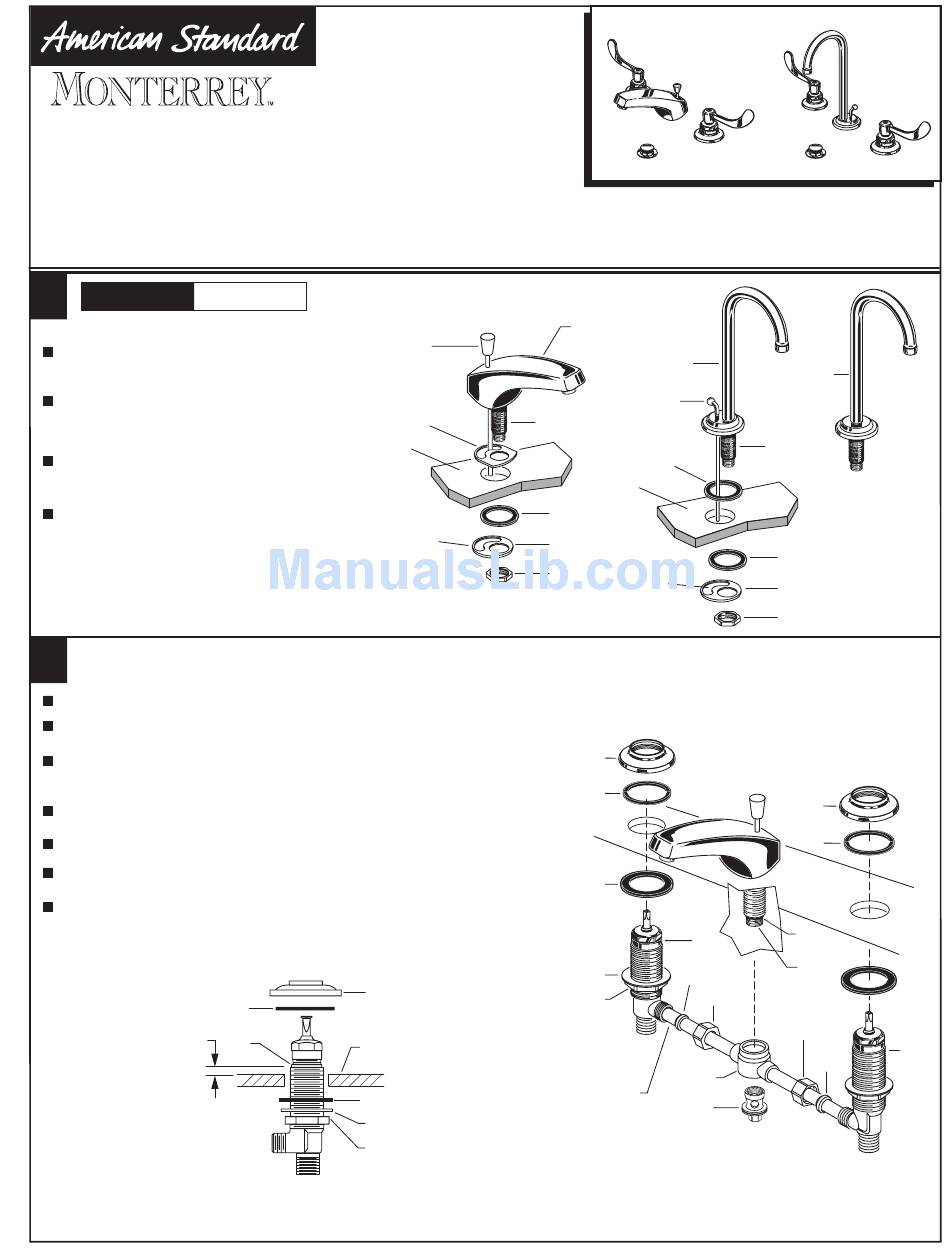

American Standard Monterrey 6500 Installation Instructions

SPREAD LAVATORY
FAUCETS
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
1
Turn off water at
CAUTION
main supply.
CONVENTIONAL OR GN SPOUT ASSEMBLY
Insert SPOUT SHANK (1, 1a) through
center hole of SINK, making sure
RUBBER GASKET (2, 2a) is properly positioned.
Assemble RUBBER WASHER (3),
RETAINER (4) and LOCKNUT (5) onto
threads of SPOUT SHANK (1, 1a) from
underside of SINK.
Align SPOUT and tighten LOCKNUT (5).
Be sure slot in BRASS WASHER (4) is
positioned to the rear as shown.
Insert LIFT ROD (6, 6a) through SPOUT
and slot of BRASS WASHER (4).
2
VALVE ASSEMBLY
Install LOCKNUTS (1), BRASS WASHERS (2) and RUBBER WASHERS (3) onto valve shanks.
Push TUBING (4) ends into VALVE (5) side outlets. Insert VALVES (5)
into mounting holes from underside of ledge.
Press TEE (6) onto SPOUT SHANK (7) making certain that the O-RING (8) is
properly seated on SHANK (7). Push COUPLING (9) into TEE (6) and
attach to SPOUT SHANK (7) and tighten.
Place RUBBER RING (11) into DECK ADAPTERS (10) and thread onto
valves until snug against internal stop.
Tighten LOCKNUT (1) to secure VALVE (5) position.
Slide FERRULE (13) and COUPLING NUT (14) to outlet of VALVE (5) and tighten
COUPLING NUT (14) firmly.
Connect HOT water supply to inlet of left VALVE and COLD water supply to inlet of
right VALVE using appropriate connector.
