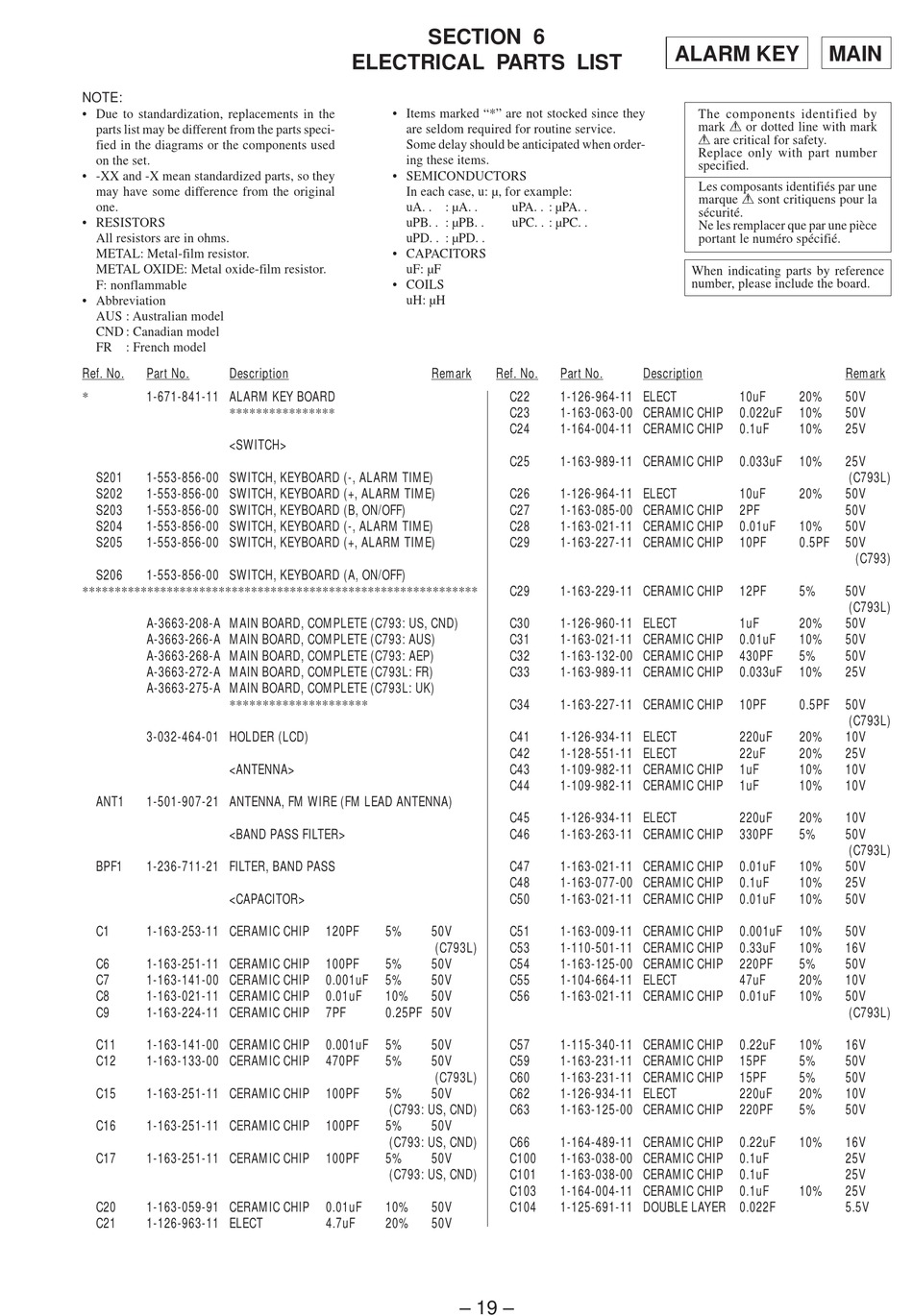

Electrical Parts List - Sony ICF-C793 Service Manual

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Abbreviation
AUS : Australian model
CND : Canadian model
FR : French model
Ref. No. Part No. Description
1-671-841-11 ALARM KEY BOARD
*
****************
<SWITCH>
S201 1-553-856-00 SWITCH, KEYBOARD (-, ALARM TIME)
S202 1-553-856-00 SWITCH, KEYBOARD (+, ALARM TIME)
S203 1-553-856-00 SWITCH, KEYBOARD (B, ON/OFF)
S204 1-553-856-00 SWITCH, KEYBOARD (-, ALARM TIME)
S205 1-553-856-00 SWITCH, KEYBOARD (+, ALARM TIME)
S206 1-553-856-00 SWITCH, KEYBOARD (A, ON/OFF)
*************************************************************
A-3663-208-A MAIN BOARD, COMPLETE (C793: US, CND)
A-3663-266-A MAIN BOARD, COMPLETE (C793: AUS)
A-3663-268-A MAIN BOARD, COMPLETE (C793: AEP)
A-3663-272-A MAIN BOARD, COMPLETE (C793L: FR)
A-3663-275-A MAIN BOARD, COMPLETE (C793L: UK)
*********************
3-032-464-01 HOLDER (LCD)
<ANTENNA>
ANT1 1-501-907-21 ANTENNA, FM WIRE (FM LEAD ANTENNA)
<BAND PASS FILTER>
BPF1 1-236-711-21 FILTER, BAND PASS
<CAPACITOR>
C1 1-163-253-11 CERAMIC CHIP
C6 1-163-251-11 CERAMIC CHIP
C7 1-163-141-00 CERAMIC CHIP
C8 1-163-021-11 CERAMIC CHIP
C9 1-163-224-11 CERAMIC CHIP
C11 1-163-141-00 CERAMIC CHIP
C12 1-163-133-00 CERAMIC CHIP
C15 1-163-251-11 CERAMIC CHIP
C16 1-163-251-11 CERAMIC CHIP
C17 1-163-251-11 CERAMIC CHIP
C20 1-163-059-91 CERAMIC CHIP
C21 1-126-963-11 ELECT
SECTION 6

ELECTRICAL PARTS LIST

• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. .
uPB. . : µPB. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
Remark Ref. No.
120PF 5% 50V
(C793L)
100PF 5% 50V
0.001uF 5% 50V
0.01uF 10% 50V
7PF 0.25PF 50V
0.001uF 5% 50V
470PF 5% 50V
(C793L)
100PF 5% 50V
(C793: US, CND)
100PF 5% 50V
(C793: US, CND)
100PF 5% 50V
(C793: US, CND)
0.01uF 10% 50V
4.7uF 20% 50V
– 19 –
ALARM KEY
uPA. . : µPA. .
uPC. . : µPC. .
Part No. Description
C22 1-126-964-11 ELECT
C23 1-163-063-00 CERAMIC CHIP
C24 1-164-004-11 CERAMIC CHIP
C25 1-163-989-11 CERAMIC CHIP
C26 1-126-964-11 ELECT
C27 1-163-085-00 CERAMIC CHIP
C28 1-163-021-11 CERAMIC CHIP
C29 1-163-227-11 CERAMIC CHIP
C29 1-163-229-11 CERAMIC CHIP
C30 1-126-960-11 ELECT
C31 1-163-021-11 CERAMIC CHIP
C32 1-163-132-00 CERAMIC CHIP
C33 1-163-989-11 CERAMIC CHIP
C34 1-163-227-11 CERAMIC CHIP
C41 1-126-934-11 ELECT
C42 1-128-551-11 ELECT
C43 1-109-982-11 CERAMIC CHIP
C44 1-109-982-11 CERAMIC CHIP
C45 1-126-934-11 ELECT
C46 1-163-263-11 CERAMIC CHIP
C47 1-163-021-11 CERAMIC CHIP
C48 1-163-077-00 CERAMIC CHIP
C50 1-163-021-11 CERAMIC CHIP
C51 1-163-009-11 CERAMIC CHIP
C53 1-110-501-11 CERAMIC CHIP
C54 1-163-125-00 CERAMIC CHIP
C55 1-104-664-11 ELECT
C56 1-163-021-11 CERAMIC CHIP
C57 1-115-340-11 CERAMIC CHIP
C59 1-163-231-11 CERAMIC CHIP
C60 1-163-231-11 CERAMIC CHIP
C62 1-126-934-11 ELECT
C63 1-163-125-00 CERAMIC CHIP
C66 1-164-489-11 CERAMIC CHIP
C100 1-163-038-00 CERAMIC CHIP
C101 1-163-038-00 CERAMIC CHIP
C103 1-164-004-11 CERAMIC CHIP
C104 1-125-691-11 DOUBLE LAYER 0.022F
MAIN
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Remark
10uF 20% 50V
0.022uF 10% 50V
0.1uF 10% 25V
0.033uF 10% 25V
(C793L)
10uF 20% 50V
2PF 50V
0.01uF 10% 50V
10PF 0.5PF 50V
(C793)
12PF 5% 50V
(C793L)
1uF 20% 50V
0.01uF 10% 50V
430PF 5% 50V
0.033uF 10% 25V
10PF 0.5PF 50V
(C793L)
220uF 20% 10V
22uF 20% 25V
1uF 10% 10V
1uF 10% 10V
220uF 20% 10V
330PF 5% 50V
(C793L)
0.01uF 10% 50V
0.1uF 10% 25V
0.01uF 10% 50V
0.001uF 10% 50V
0.33uF 10% 16V
220PF 5% 50V
47uF 20% 10V
0.01uF 10% 50V
(C793L)
0.22uF 10% 16V
15PF 5% 50V
15PF 5% 50V
220uF 20% 10V
220PF 5% 50V
0.22uF 10% 16V
0.1uF 25V
0.1uF 25V
0.1uF 10% 25V
5.5V
