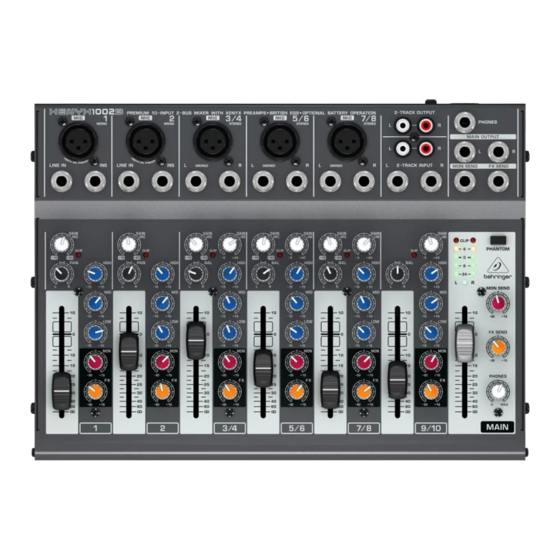

XENYX 1002B
Battery Powered
10 x 2 Mixer
Premium ultra-low noise analog
mixer with optional battery
operation
2 state-of-the-art XENYX Mic
Preamps comparable to stand-
alone boutique preamps
Neo-classic "British" 3-band EQs for
warm and musical sound
4 balanced, high-headroom stereo
inputs with 3 additional mic inputs
One post-fader FX send and one
pre-fader MON send per channel
for external FX devices and
monitor applications
Clip LEDs on all channels and
dedicated inserts on all mono
channels
Main output plus separate Phones
and CD/Tape outputs
Switchable phantom power for
condenser microphones
Long-wearing 60-mm logarithmic-
taper master fader and sealed
rotary controls
External power supply for noise-
free audio and superior transient
response
High-quality components and
exceptionally rugged construction
ensure long life
Conceived and designed by
BEHRINGER Germany
behringer.com
XENYX Mixer
Premium 10-Input 2-Bus Mixer with XENYX Preamps,
British EQs and Optional Battery Operation
State-of-the-Art Goes Portable
Whether you plug it into the wall or
power it via 9 V batteries, the XENYX
1002B comes equipped with many of
the features you've come to expect
from our larger mixers, including
XENYX mic preamps for amazing
sound quality, phantom power for use
with professional-grade condenser
mics, 2-Track inputs and outputs, and
60 mm faders. The four stereo channels
accept left/right or mono ¼" TRS/TR
inputs, and three of them also accom-
modate microphones (with separate
Trim controls). The compact XENYX
1002B mixer also features our highly
musical 3-band British EQ, plus an
FX and monitor send for each channel,
making it a must-have for any audio
toolkit.
