SY-6KL Quick Start Guide

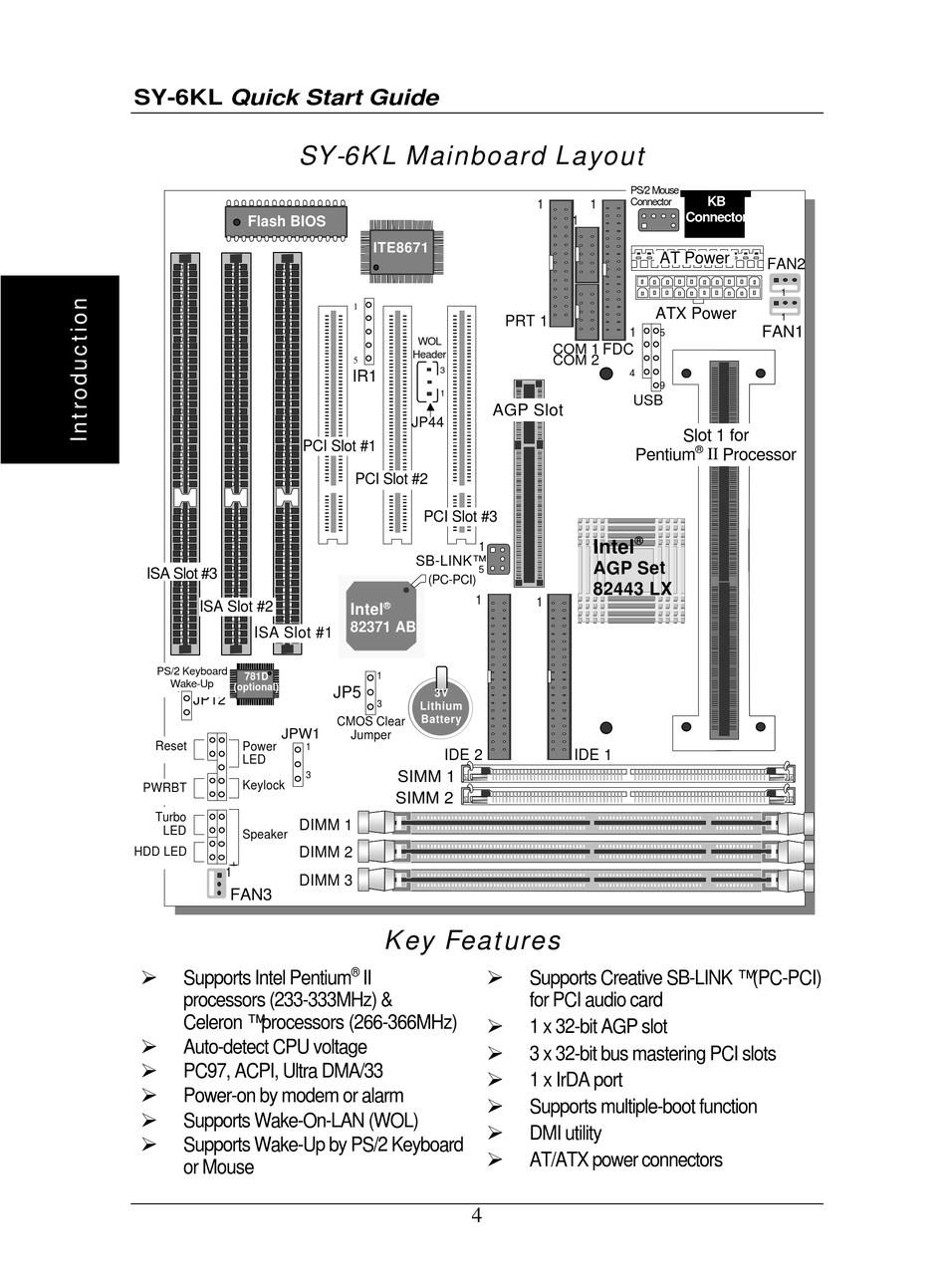

SY-6KL Mainboard Layout
Flash BIOS
PCI Slot #1
ISA Slot #3
ISA Slot #2
ISA Slot #1
PS/2 Keyboard
781D
Wake-Up
(optional)
Jumper
JP12
JPW1
Reset Power
1
LED
3
Keylock
PWRBT
_
Turbo
DIMM 1
LED
Speaker
HDD LED DIMM 2
+
1
DIMM 3
FAN3
Ø Supports Intel Pentium
processors (233-333MHz) &
Celeron ™ processors (266-366MHz)
Ø Auto-detect CPU voltage
PC97, ACPI, Ultra DMA/33
Ø
Ø Power-on by modem or alarm
Ø Supports Wake-On-LAN (WOL)
Ø Supports Wake-Up by PS/2 Keyboard
or Mouse
ITE8671
1
PRT 1
WOL
Header
5
3
IR1
1
AGP Slot
JP44
PCI Slot #2
PCI Slot #3
1
SB-LINK™
5
(PC-PCI)
1
®
Intel
82371 AB
1
JP5
3V
3
Lithium
Battery
CMOS Clear
Jumper
IDE 2
SIMM 1
SIMM 2

Key Features

®
II Ø
Ø
Ø
Ø
Ø
Ø
Ø
4
PS/2 Mouse
KB
Connector
1 1
Connector
1
AT Power
ATX Power
1
5
COM 1 FDC
COM 2
4
9
USB
Slot 1 for
®
Pentium II Processor
®
Intel
AGP Set
82443 LX
1
IDE 1
Supports Creative SB-LINK ™ (PC-PCI)
for PCI audio card
1 x 32-bit AGP slot
3 x 32-bit bus mastering PCI slots
1 x IrDA port
Supports multiple-boot function
DMI utility
AT/ATX power connectors
FAN2
1
1
FAN1
