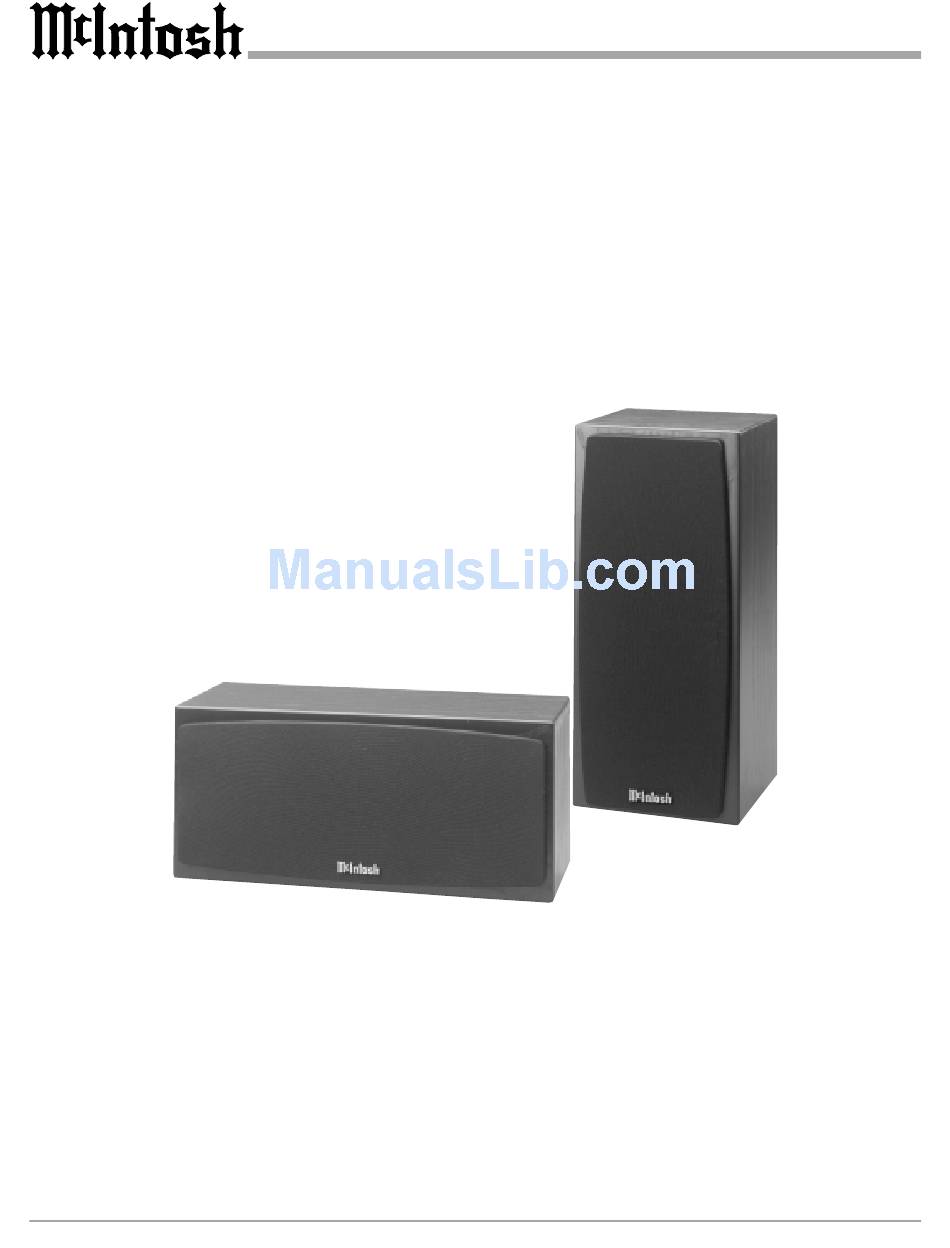

- Page 1 Owner’s Manual HT-5 Loudspeaker System HT-5 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
-
Page 2: Safety Instructions
8. Do not install near any heat sources such as radiators, McIntosh or have the same characteristics as the origi- heat registers, stoves, or other equipment (including nal part. Unauthorized substitutions may result in fire, amplifiers) that produce heat. -
Page 3: Table Of Contents
McIntosh products at: manual(s) for any component(s) connected to the HT-5 Loudspeaker. McIntosh Laboratory, Inc. 3. The HT-5 has built-in speaker protection in the form of two 2 Chambers Street automatic resetting solid-state devices as part of the Binghamton, New York 13903 crossover network. -
Page 4: Introduction
1 ments feature the patented LD/HP motor structure. This inch dome tweeter. The HT-5 is designed to work as a left design, when compared to conventional loudspeaker ele- or right (main) loudspeaker in a Music System or as a ments, reduces distortion significantly. -
Page 5: Ht-5 Dimensions
Dimensions HT-5 Dimensions The following dimensions can assist in determining the best location for your HT-5 Loudspeaker System. There is additional information on the next page pertaining to in- stalling the HT-5 into cabinets. Front View of HT-5 with Grille Removed... - Page 6 Dimensions Top View of HT-5 with Grille Top View of HT-5 with Grille Removed...
-
Page 7: Installation
Operation of the HT-5 without its grille is not between the listener and either loudspeaker. If the speakers recommended, as sound quality would be affected. -
Page 8: How To Connect
How to Connect How to Connect Speaker Connections The McIntosh HT-5 Loudspeaker System utilizes binding posts for speaker wire connections. Refer to figure 3. 1. Connect a loudspeaker cable from the black (negative -) loudspeaker binding post to the negative or common output terminal of one channel of the amplifier. -
Page 9: Front And Rear Views
Front and Rear Views 6-1/2 inch LD/HP Woofer/Midrange 1 inch Dome Tweeter 6-1/2 inch LD/HP Woofer Connecting Terminals... -
Page 10: Specifications
Specifications Specifications Driver Complement 6-1/2 inch Woofer 6-1/2 inch Woofer/Midrange 1 inch Dome Tweeter Impedance 4 ohms Nominal Frequency Response 80Hz - 20kHz + 2dB (Anechoic Response) Sensitivity 2.8V/1m, 86dB, SPL Crossover Frequency 1.5kHz Power Handling 200 Watts Maximum Dimensions 20.5 inches (51.25cm) Height, 9.25 inches (23.125cm) Width, 9 inches (22.5cm) Depth (including Grille) Finish... -
Page 11: Packing Instruction
Use the original shipping carton and interior parts only if they are all in good serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labo- ratory. - Page 12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 McIntosh Part No. 040735...
