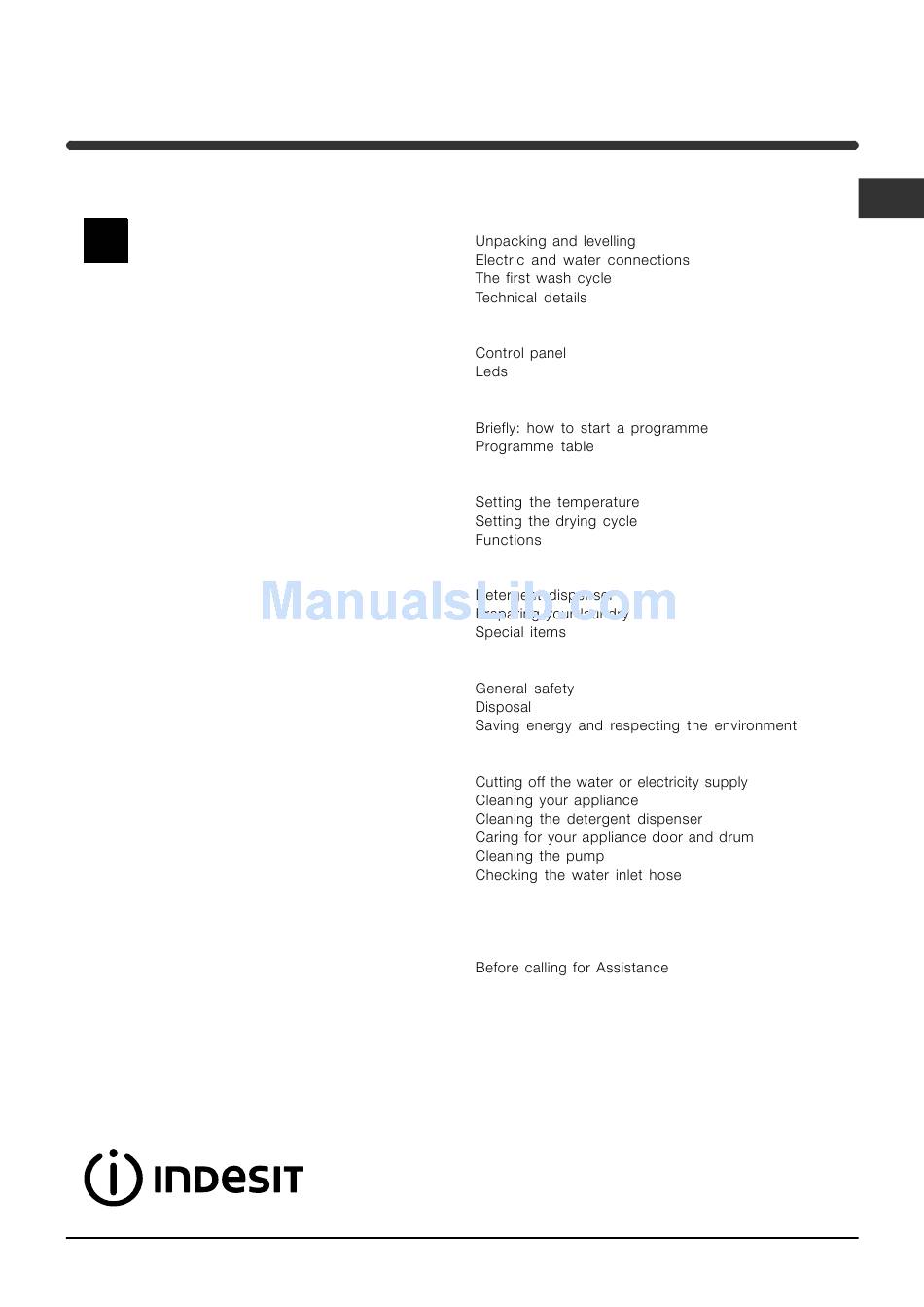

Instructions for use WASHER-DRYER Contents Installation, 30-31-32-33 English Washer-dryer description, 34-35 Starting and Programmes, 36 Personalisations, 37 WIDXL 86 Detergents and laundry, 38 Precautions and advice, 39 Care and maintenance, 40 Troubleshooting, 41 Service, 42...
Installation Electric and water connections Unpacking and levelling Connecting the water inlet hose Unpacking (see figure) (see figure) (see figure) Levelling (on the next page) (see figure)
Page 3
Connecting the drain hose Replacing the fuse: Removing the plug: (see figure) Disposing of the plug: Electric connection Green & Yellow Earth Blue Neutral Brown Live (see page 33) (see page 33)
The first wash cycle BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E) Disposing of the appliance: GREEN & YELLOW 13 ampere fuse BROWN CROSS-BAR BLUE CORD GRIP...
Technical details Model Dimensions Capacity Electric connections Water connections Spin speed Wash: Control Drying: programmes according to EN 50229 directive...
Washer-dryer description Control panel FUNCTION Leds ON-OFF/ DOOR ON-OFF LOCK PROGRAMME Detergent dispenser START/RESET TEMPERATURE DRYING Detergent dispenser: TEMPERATURE (see page 38). (see page 37) LEDS: START/RESET (see ON-OFF/DOOR LOCK page 35) (see page 35) DRYING (see page 37). ON/OFF FUNCTION PROGRAMME Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner...
Page 7
Leds Cycle phase under way: Delay set: (see page. 37) Function buttons ON-OFF/DOOR LOCK led: (see page 41)
Starting and Programmes Briefly: starting a programme (see page 38) (see page 37) (see page 37). Programme table C ycle D etergent Type of fabric and Drying Fabric Prog. Tem p. length D escription of wash cycle degree of soil Cycle softener (m inutes)
Personalisations Setting the temperature (see Programme table on page 36) The data contained in the Table of drying times table are purely indicative. Set the drying cycle Fabric Load type Max. type load (kg) Cup- Hanger Iron board Iron Hanger Cupboard (see table opposite) dry only...
Detergents and laundry Detergent dispenser Special items Curtains: Quilted coats and windbreakers: Wool: compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid) compartment 3: Additives (fabric softeners, etc.) Preparing your laundry How much does your laundry weigh?
Precautions and advice General safety Saving energy and respecting the environment Environmentally-friendly technology Saving on detergent, water, energy and time (see page 37) Disposal...
Care and maintenance Cutting off the water or electricity Cleaning the pump supply Cleaning your appliance (see figure) Cleaning the detergent dispenser (see figure) (see figure) Caring for your appliance door and drum Checking the water inlet hose...
Troubleshooting (see page 42) Possible causes/Solution: Problem The washer-dryer won't start. The wash cycle won't start. see page 37). The washer-dryer fails to load water. The washer-dryer continuously (see page 31) loads and unloads water. (see page 31) The washer-dryer does not (see page 36) drain or spin.
