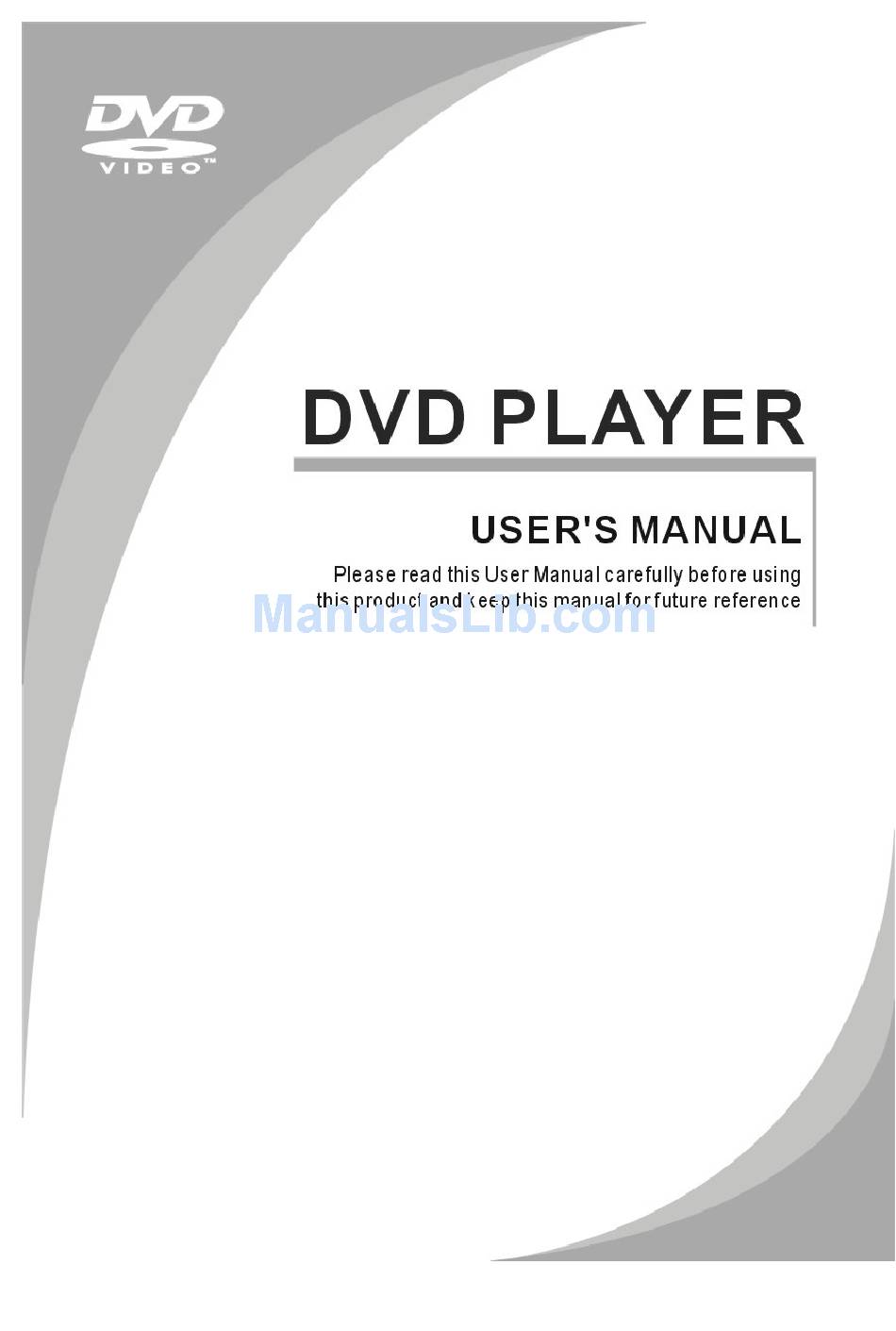

- Page 1 For information and support, www.lenco.eu...
-
Page 2: Table Of Contents
Content Introduction Important Safety Instructions ..................2 Caution ........................3 Features ........................3 Front Panel and Rear Panel Illustration ..............4 Remote Control ......................5 Connections ......................6 Advanced Features System setup ......................7 MP3/WMA/JPEG/MPEG4 playback ................10 Picture CD playback....................1 1 Card Reader, USB, Karaoke O ptional ..............11... -
Page 3: Important Safety Instructions
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. 8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Caution
Caution • Please use the original box and packing materials for safe transportation of this product. • It is normal for the cover and rear panel to become warm after the player has been operating for an extended period of time. •... -
Page 5: Front Panel And Rear Panel Illustration
Front Panel and Rear Panel Illustration Front Panel Back Panel 1. Power 9. Next Button 2. Tray Door 10. MIC 3. LED 11.USB Port 4. Sensor 12. 5.1CH Audio 5. Open/Close button output(FL,FR,SL,SR,CEN,SW) 6. Play/Pause Button 13.HDMI Output 7. Stop Button 14. -
Page 6: Remote Control
Remote Control 1. OPEN/CLOSE 14. NEXT 2. KARAOKE 15. MUTE 3. POWER 16. USB 4. 0-9 NUMBER KEY 17.GOTO 5. ZOOM/MENU 18.AUDIO/ANGLE 6. SUBTITLE/TITLE 19.REPEAT/ PROGRAM 7. SETUP 20. PLAY/PAUSE 8. UP 21. STOP 9. LEFT 22. RIGHT 10. DOWN 23. -
Page 7: Connections
Connections CONNECT DVD PLAYER TO TV SET WITH SCART SOCKET Use the SCART cable to connect DVD player and your TV. Set the [Video Out] to [Composite] or [ RGB]. CONNECT DVD PLAYER TO TV SET WITH HDMI CABLE Use the HDMI cable to connect DVD player and your TV. Set the [Video Out] to [HDMI]. -
Page 8: System Setup
SYSTEM SETUP MENU OPERATION Press the SETUP button on the remote control, the SETUP MENU will be displayed. Use the up/down buttons for up and down movement trough the menu Press RIGHT direction button to enter the submenu and press left direction button to go back to the previous menu. -
Page 9: Audio Setup
SYSTEM SETUP Aspect Ratio Use this option to select the aspect ratio. Notes: The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen. - Page 10 SYSTEM SETUP Down sampling Select down sampling function on or off. ON: System will down sampling rate for high sampling rate audio(more than 96K). OFF: Disable this function. Smart sound Select different music effect whiling listening music. RATING SETUP Select Rating in the setup menu, and display the Rating submenu: Parental Control Set the parental control feature of the player Note: Password is needed before setting Parental Control.
-
Page 11: Mp3/Wma/Jpeg/Mpeg4 Playback
MP3/WMA/JPEG/MPEG4 PLAYBACK The MP3/WMA/MPEG4 disc has such a directory structure as shown picture above. Press Direction key to choose the root directory and then press OK button to enter the sub directory. Use Direction keys to choose the desired track and press OK to play the selected file. To return to the upper menu, press Direction keys and choose press OK button to go back to the upper menu. -
Page 12: Picture Cd Playback
PICTURE CD PLAYBACK The PICTURE CD disc has such a directory structure structure as shown in the following picture. Press Direction key to choose the root directory and then press OK button to enter into the sub directory. Press Direction key to choose the desired picture and then press OK to open the picture. -
Page 13: Troubleshooting
Troubleshooting If you have any questions, please consult the troubleshooting guide below. NO PICTURE OR SOUND "BAD DISC" DISPLAYED • Ensure the power button is on. • Ensure the disc is not warped, damaged or deformed. • Ensure the power outlet is operational. •... -
Page 14: Specifications
Audio out Audio out level: 2Vrms -1/+0.2 Frequency response: 20Hz to 20kHz S/N ratio: >90dB Total harmonic distortion: <0.025% Accessories Remote Control x 1 User's Manual x 1 Note: Specifications are subject to change without notice. For information and support, www.lenco.eu...
