NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
DBR 90
Retain This
Manual for
Reference
06-25-01

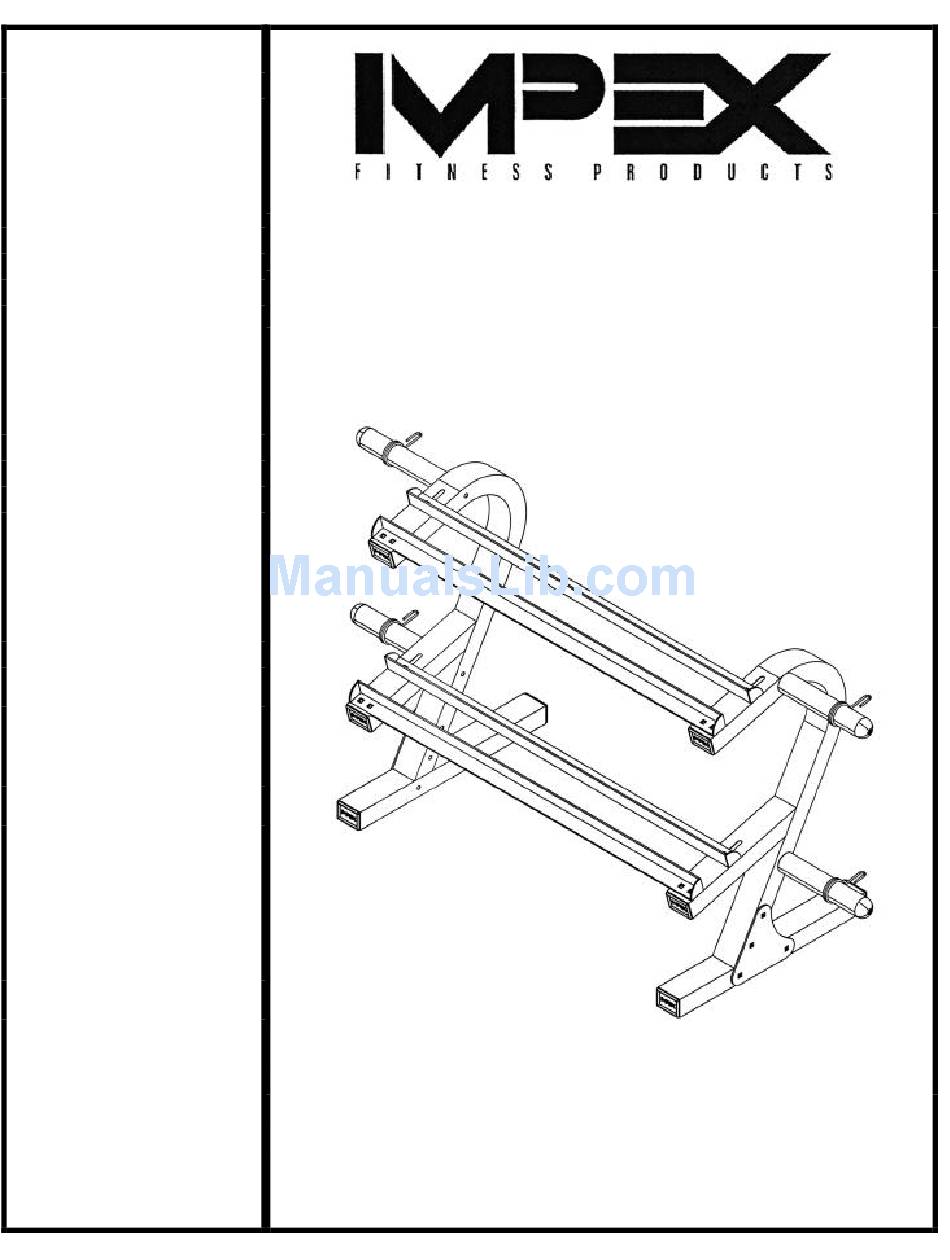

OWNER'S
MANUAL
POWERHOUSE
Bi-Level Dumbbell Rack
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
DBR 90
Advertisement
Related Manuals for Impex Powerhouse DBR 90
Summary of Contents for Impex Powerhouse DBR 90
- Page 1 Please read all instructions carefully before using this product Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model DBR 90 Retain This Manual for Reference 06-25-01 OWNER'S MANUAL POWERHOUSE Bi-Level Dumbbell Rack DBR 90 IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
-
Page 2: Table Of Contents
ORDERING PARTS...… BEFORE YOU BEGIN Thanks for selecting the POWERHOUSE Dumbbell Rack DBR90 by IMPEX FITNESS PRODUCTS. For your safety and benefit, we committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance fro our factory. -
Page 3: Important Safety Notices
THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTION Tools Required to Assemble the Machine: Two Adjustable Wrenches NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Left Upright Beam (#3) to the Stabilizer (#1). Secure it with a Bracket (#7), four M10 x 3 ¼”... - Page 6 STEP 2 (See Diagram 2) A.) Connect the two Uprights with one Fixed Rack (#4) on the top level. Align the holes then Secure them with two M10 x 2 ¾” Carriage Bolts (#11), each end of the Rack. Do not tighten the nuts and bolts yet. B.) Connect the two Uprights with one Adjustable Rack (#5) on the top level.
- Page 7 STEP 3 (See Diagram 3) A.) Connect the two Uprights with one Fixed Rack (#4) on the lower level. Align the holes then Secure them with two M10 x 2 ¾” Carriage Bolts (#11), each end of the Rack. Do not tighten the nuts and bolts yet. B.) Connect the two Uprights with one Adjustable Rack (#5) on the lower level.
- Page 8 STEP 4 (See Diagram 4) A.) Insert a Weight Plate Holders (#6) into the hole on the side of the Left Upright Beam. Secure it with a M10 x ¾” Allen Bolt (#9) and ¾” Washer (#12). B.) Slide an Olympic Sleeve (#16) onto the Holder. Attach a Spring Clip (#14) onto the Holder. C.) Repeat the above two steps to install the other three Posts.
-
Page 10: Parts List
Parts list KEY NO. DESCRIPTION Stabilizer Right Upright Beam Left Upright Beam Fixed Rack Adjustable Rack Weight Plate Holder Bracket Square End Cap M10 x ¾” Allen Bolt M10 x 3 ¼” Carriage Bolt M10 x 2 ¾” Carriage Bolt ¾”... -
Page 11: Warranty
No other warranty beyond that specifically set forth above is authorized by IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
