Summary of Contents for CDA FW951

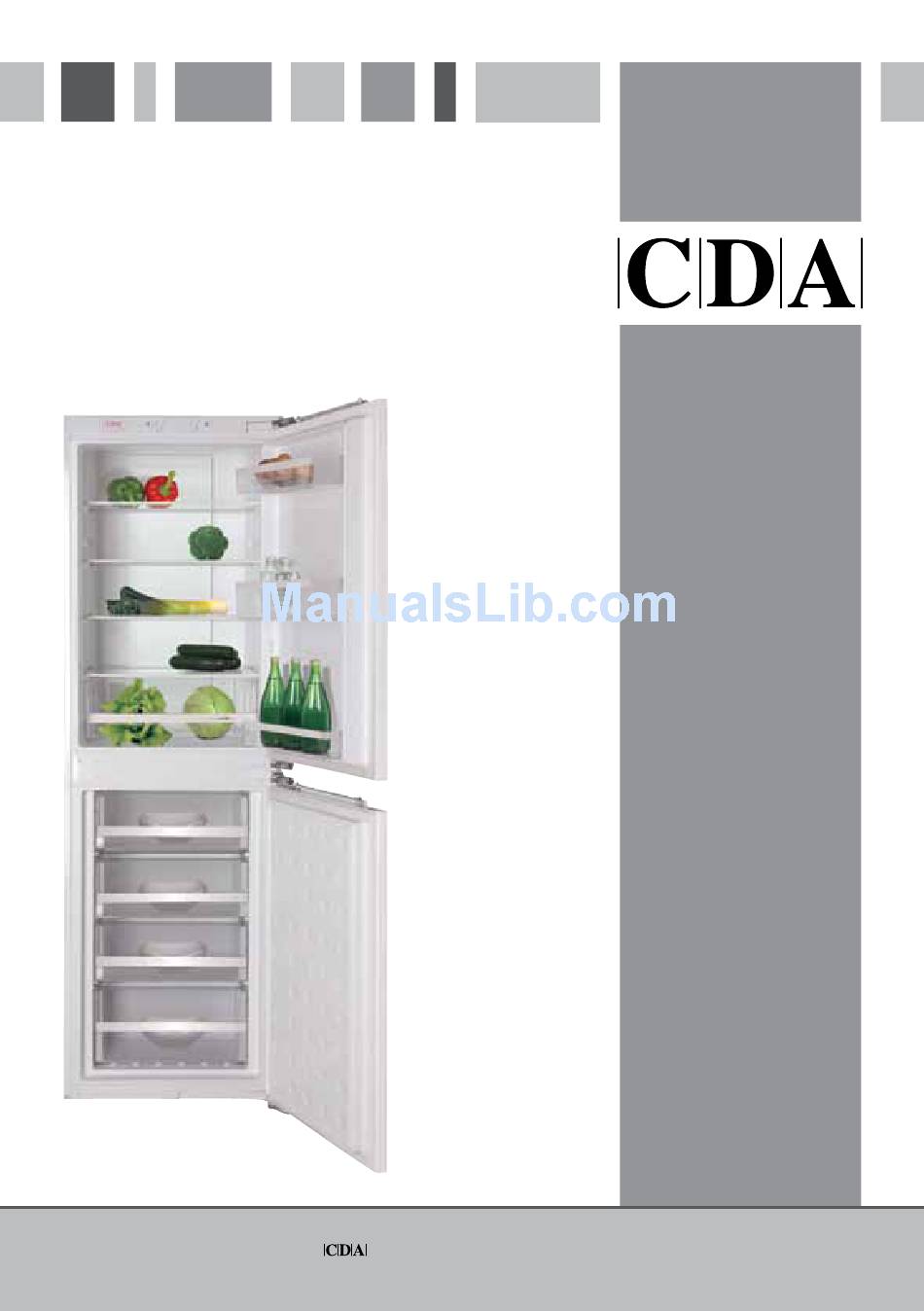

- Page 1 Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
-
Page 3: Before First Use
Important Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products. To prevent risk of fire, keep the appliance away from petrol or any other inflammables. - Page 4 Fridge • Never put liquids in the refrigerator uncovered. • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator. • Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
- Page 5 Storage The fridge section is for short term food storage. Although the temperature can be maintained between 0-10˚ C , extended periods of food storage is not recommended. As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.
-
Page 6: Control Panel
Control panel High High REF. FRZ. S.Cool S.Cool fig. 3 A. Power button To put the fridge freezer on standby press and hold the power button for approximately three seconds. The power light will flash. To start the compressor working again, press and hold the standby button for approximately three seconds until the power light stays lit. -
Page 7: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. Both fridge and freezer are frost free and as such this appliance is designed not to require defrosting. The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. -
Page 8: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working • Check there is power to the appliance. -
Page 9: Installation And Ventilation
Installation And Ventilation This appliance must never be installed close to heat sources, e.g. heating elements, cookers or in damp places. • To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance. •... - Page 10 Ventilation To ensure that the refrigerator functions correctly and to ensure long term reliability it is important that adequate ventilation is provided. Air must be allowed to enter the area under the cabinet and flow freely up the rear channel of the cabinet. The cabinet should also have an open top to ensure air can escape.
- Page 11 Fitting the product into the cabinet 1. Position the refrigerator in the cabinet, making sure the mains lead is not trapped and that the plug will be accessible after installation. 2. Ensure that the door gasket protector and the lower position adjusting plate are located against the cabinet walls (figure 10).
- Page 12 Fitting the cabinet fascia doors Upper fixing plate (Dismantling) First, fit the upper fascia by following the steps below. After fitting the upper fascia in the correct position, use the lower edge of the upper fascia as a guide for positioning the lower fascia (A distance between the two fascias when installed is normally between 2 and 4mm) and fit the lower fascia.
- Page 13 Adjusting the position of the fascia doors The position of the fascia doors can be made in all 3 axes by following the guide shown below (figure 18). If the range of adjustment detailed below is not enough then the refrigerator is not located correctly in the cabinet and/or the upper fascia fixing plates are incorrectly positioned.
- Page 14 Fitting the trims and cover pieces 1. Fit the decorative fixing plate covers (2 of) as shown in figure 2. Fit the upper fixing plate side covers (4 of) as shown in figure 3. Secure the refrigerator in position to the top cabinet shelf and fit the top support cover (figure 22).
-
Page 15: Electrical Information
Electrical information Warning! This appliance must be earthed. The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. Remove the fuse cover and fuse. 2. - Page 16 Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
