King Canada KCG-9000GE Instruction Manual

9000w gasoline generator with electric start and wheel kit
Hide thumbs

Advertisement

Table of Contents

9000W GASOLINE GENERATOR
WITH ELECTRIC START AND WHEEL KIT

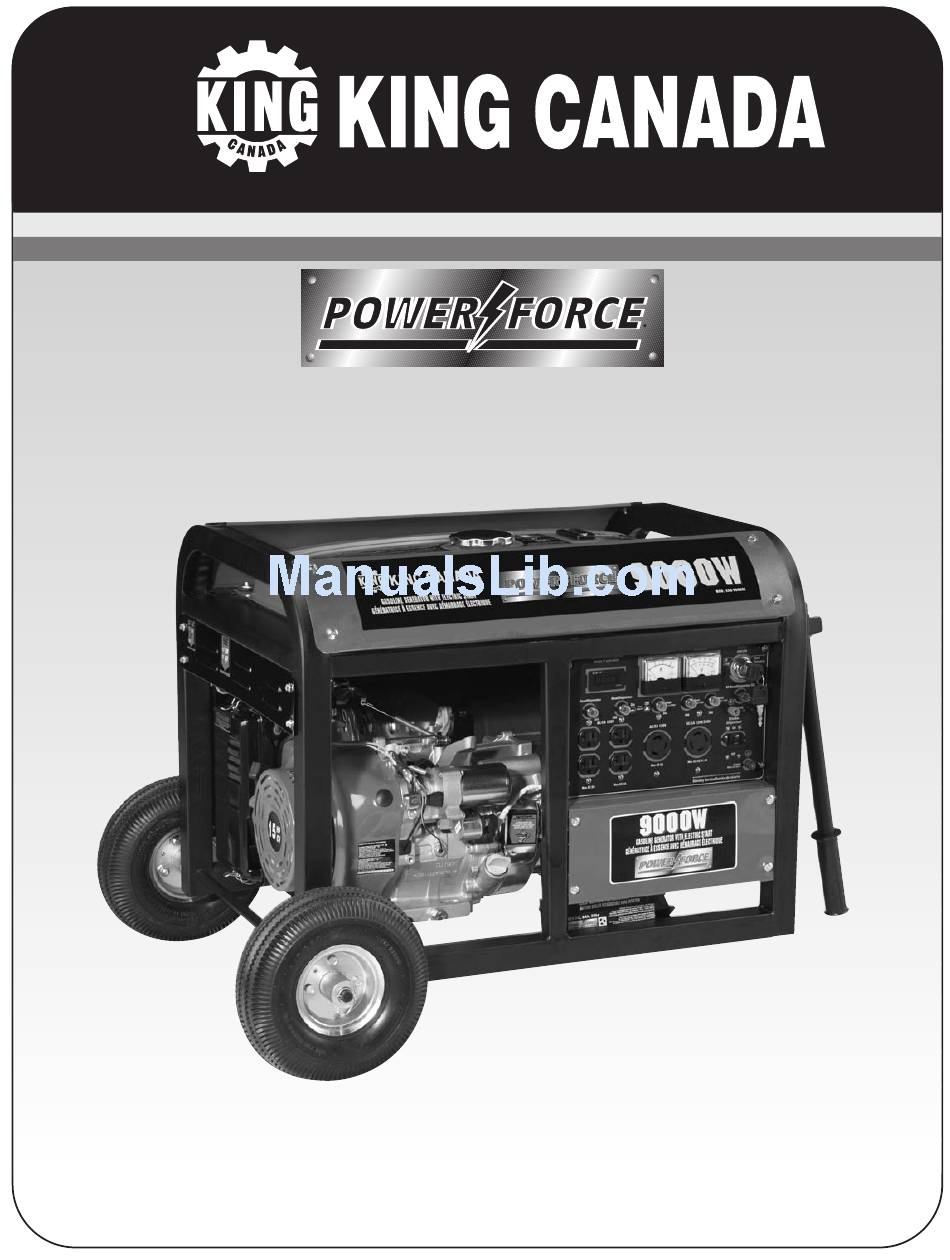

Read this manual. Do not attempt to operate this generator until you have read and understood the safety,
operation, and maintenance instructions
MODEL: KCG-9000GE
INSTRUCTION MANUAL
COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading

Related Manuals for King Canada KCG-9000GE

Summary of Contents for King Canada KCG-9000GE

  • Page 1 WITH ELECTRIC START AND WHEEL KIT Read this manual. Do not attempt to operate this generator until you have read and understood the safety, operation, and maintenance instructions MODEL: KCG-9000GE INSTRUCTION MANUAL COPYRIGHT © 2009 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

  • Page 2: Warranty And Service Information

    KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products. Shipping and handling charges may apply. If a defect is found, KING CANADA will either repair or replace the product.
  • Page 3 BASIC & SPECIFIC SAFETY PRECAUTIONS BE CAREFUL! KEEP FLAMMABLE DO NOT USE DO NOT USE IN DO NOT CONNECT TO IN YOUR HOUSE MATERIALS AWAY WET CONDITIONS HOUSEHOLD CIRCUIT WHEN REFUELING; STOP ENGINE! NO SMOKING! DO NOT SPILL GASOLINE! BASIC SAFETY INFORMATION touching the engine or muffler while they are still hot.

  • Page 4: Specific Safety Precautions

    SPECIFIC SAFETY PRECAUTIONS OPERATION OF GENERATOR IN RAIN, WET, ICY, OR FLOODED RISK OF BREATHING - INHALATION HAZARD CONDITIONS. Operate generator in clean, dry, well ventilated area. Never operate Water is an excellent conductor of electricity! Water which comes in unit in enclosed areas such as garages, basements, storage, sheds, or contact with electrically charged components can transmit electricity to in any location occupied by humans or animals.
  • Page 5 28. 12V DC Terminals. Operate 12V DC appliances or tools. key to ON, turn key further and hold until engine starts and release. Move switch to Off position to stop generator. MODEL KCG-9000GE Peak Wattage (starting) 9000W Running Wattage 7500W AC Outputs 6 (4x 120V- 62.5A)(1x 120V-62.5A)(1x120/240V- 62.5A/31.3A)
  • Page 6 ASSEMBLY WARNING! To prevent permanent damage to generator or any appliances, you MUST check oil level, fuel level, air cleaner filter and unplug any load from the generator before starting. ASSEMBLY Remove all the contents from the carton and proceed to the following assembly steps; Pivot handles and Support Brackets The pivot handles (A) Fig.1 get installed to the right side of the frame.

  • Page 7: Pre-Start Check

    PRE-START CHECK PRE-START CHECK WARNING! To prevent permanent damage to generator or any appliances, you MUST check oil level, fuel level, air cleaner filter and unplug any load from the generator before starting. OIL LEVEL WARNING! This generator has been shipped from the factory without oil or very little oil in the crankcase.

  • Page 8: Starting Procedures

    STARTING & STOPPING PROCEDURES STARTING PROCEDURES GROUNDING WARNING! BEFORE STARTING, YOUR GENERATOR MUST BE GROUNDED! Before operating make sure to ground the generator. A ground terminal identified by the ground symbol (Fig.8) can be found on the front control panel of the generator, attach a metal spike to a wire, attach the wire to the ground terminal and ground the metal spike into the earth.

  • Page 9: Electrical Connections

    Overloading the generator will cause power fluctuations and can damage equipment and appliances. King Canada will not be responsible for equipment damaged as a result of voltage surges, improper operation or improper installation of the generator.
  • Page 10 CONTROL PANEL & WATTAGE CALCULATIONS CONTROL PANEL RUNNING TIME DIGITAL METER The control panel contains a running time digital meter (A) Fig.12, this meter has 3 display modes. To toggle through the 3 modes, press the small mode button (B). Mode 1 indicates the running time in minutes (00:00), resets once the generator is turned off.

  • Page 11: Maintenance And Storage

    MAINTENANCE & STORAGE MAINTAINING YOUR GENERATOR Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 100 hours or 6 months after. To replace engine oil; 1) Loosen the oil gauge dipstick (A) Fig.13.

  • Page 12: Troubleshooting

    1. Electrical short in connected item. 1. Disconnect shorted load. down when loads are connected 2. Overloaded. 2. Reduce load. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.

This manual is also suitable for:

Kcg-10000ge
