Features:
4LSM-AV is a compact, durable, portable, running on rechargeable battery TFT LCD
Service 4"Monitor.
With built-in charger circuit, it can run on 6 x "AA" rechargeable battery, control panel
with Power Switch, Brightness Control, Color Control and Volume Control.
12V DC/600mA

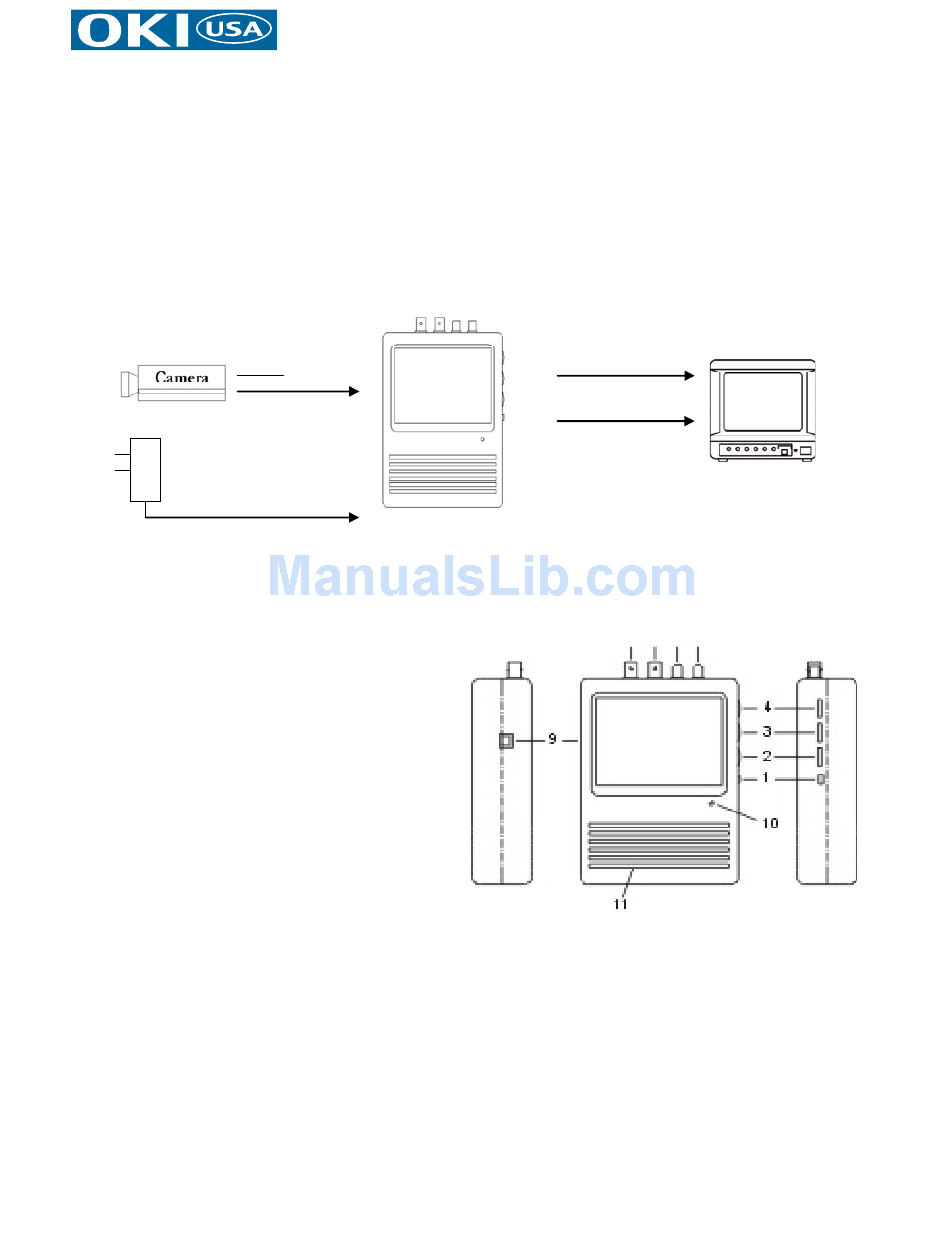

Functions:
1, Monitor Power
On / Off
3, Control Brightness
5, Audio Out
7, Video Out
9, DC 12V Input
10,Light
Green- Monitor is ON
Red- Batteries are under charging, the LED GO Off
when the batteries are full
Orange- Monitor is under charging
4" TFT LCD Service Monitor kit Included:
One 4" TFT LCD Monitor,
One Power Adaptor
One Leather Case
One Belt
Six "AA" Rechargeable Battery
Note: The charger adaptor is for purpose of charging, it cannot be used as a power source, and
the monitor will not work without Rechargeable battery.
4" TFT LCD Service Monitor
4LSM-AV
Operation Manual
Video
Audio
2, Volume
4, Color
6, Audio In
8, Video In
11, Speaker
www.okiusa.com
Video
Audio
