JVC Everio GZ-EZ555 User Manual

Hd memory camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

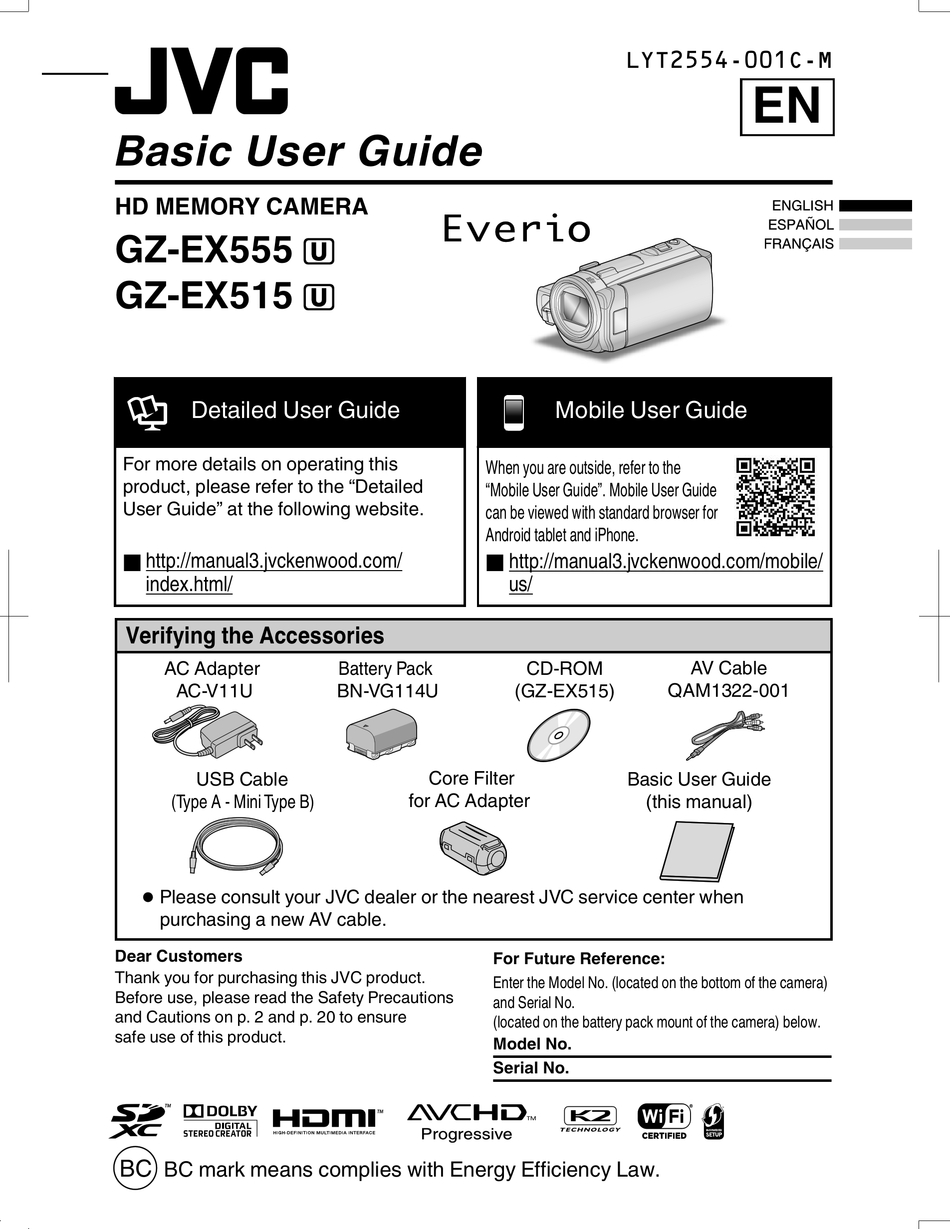

Verifying the Accessories

Basic User Guide(this manual)
AV Cable
AC Adapter
Battery Pack
CD-ROM
AC-V11U
BN-VG114U
(GZ-EX515)
QAM1322-001
Core Filter
USB Cable
Basic User Guide
(Type A - Mini Type B)
for AC Adapter
(this manual)
Please consult your JVC dealer or the nearest JVC service center when
purchasing a new AV cable.
BC
BC mark means complies with Energy Efficiency Law.
