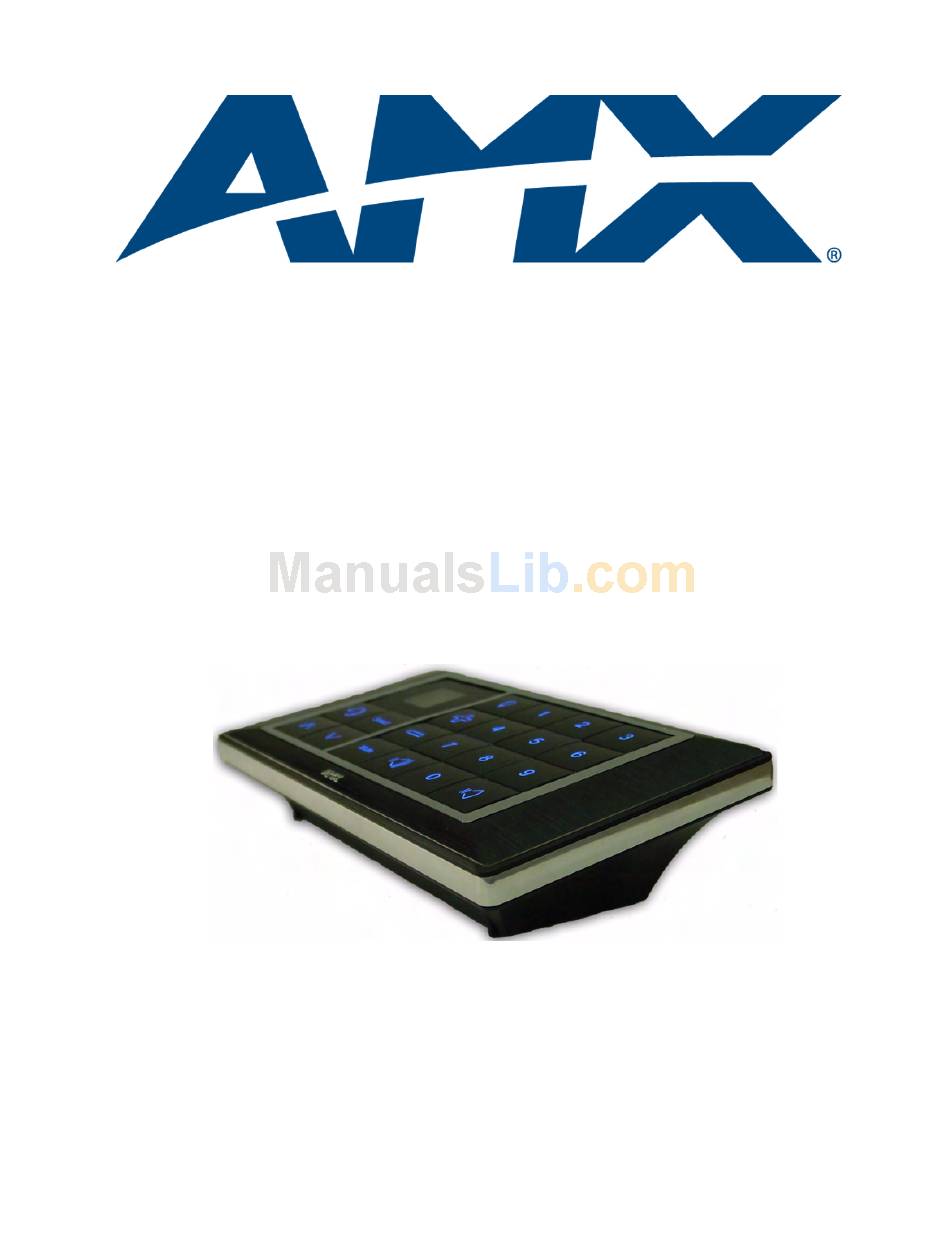

Page 1: Mio Attach
Operation/Reference Guide Mio Attaché Remote Keypad Device M i o Modero Key pad s L a s t R e v i s e d : 4 /4 / 2 0 0 8... - Page 2 AMX is not responsible for products returned without a valid RMA number. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party.
- Page 3 AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication.
-
Page 5: Table Of Contents
Table of Contents Overview ...1 Mio Attaché ... 1 Specifications ... 2 The Mio Attaché Wake Up State ... 3 Mio Attaché Docking Station... 3 Specifications ... 3 Installation ...5 Installing The Battery... 5 Charging The Attaché with the Provided Power Supply... 5 Charging The Attaché... - Page 6 Table of Contents Mio Attaché Remote Keypad Device...
-
Page 7: Overview
The Mio Attaché (FG5799-01)is a remote keypad device that enables control without the tether of wires; it uses both 38 and 455 KHz AMX IR frequencies. The Attaché also has an LCD fixed menu system that doubles as a button. -
Page 8: Specifications
Included Accessories Other AMX Equipment Lithium-ion. The charge time is approximately 3 hours from depleted. AMX 38 KHz/455 KHz IR • 100 feet at 38KHz • 40 feet at 455KHz • 270°horizontally from an axis extending from the end of the remote. -
Page 9: The Mio Attaché Wake Up State
The specifications for the Mio Attaché docking station are as follows: Mio Attaché Docking Station Specifications Dimensions (HWD) Weight Other AMX Products Mio Attaché Remote Keypad Device .94 (23.88 mm) x 9.63 (244.60 mm) x 5.53 (140.46 mm) 0.70 lbs (0.32 kg) •... - Page 10 Overview Mio Attaché Remote Keypad Device...
-
Page 11: Installation
Charging The Attaché with the Provided Power Supply The Mio Attaché can receive power for charging from an AMX PS4.4 power supply through a barrel-plug connector. When the battery is charging from complete depletion, it does a trickle charge where it starts gradually and ramps up to full charge. -
Page 12: Charging The Attaché With The Docking Station
Installation Charging The Attaché with the Docking Station The Mio Attaché can also receive power for charging from an optional Docking Station. When the battery is charging from complete depletion, the battery does a trickle charge where it starts gradually and ramps up to full charge. -
Page 13: Changing Buttons
In cases where the default button numbering is needed, the default may be accessed by creating a file for the keypad in KeypadBuilder. The default button numbering is: Default button numbering For more information, please see the KeypadBuilder Instruction Manual, available at www.amx.com. Mio Attaché Remote Keypad Device Installation... - Page 14 Installation Mio Attaché Remote Keypad Device...
-
Page 15: Programming The Attaché
The programming jack is used for communication between the device and KeypadBuilder. The programming jack uses a three-wire, 2.5 mm stereo jack, you can order the programming cable (FG10-817) from AMX if you do not currently possess one. The baud rate is 115200. -
Page 16: Setting The Ir Frequency
Programming The Attaché Setting The IR Frequency The Mio Attaché is set to the IR frequency 38KHz by default. Use the IRMODE Serial Command to change the frequency to 455KHz. To set the frequency to 455KHz: Establish a HyperTerminal session with your device. Send "IRMODE 455"... - Page 17 Serial Commands (Cont.) ^CFG Not Persistent @CST- IRMODE # SLEEP-# Mio Attaché Remote Keypad Device Combine/Uncombine adjacent buttons Syntax: "'^CFG- <command value>'" Variables: command value = (1= configuration ON, 0= configuration OFF). Example: "'^CFG-1'" Set the Key Pad to button combine mode Sets the display contrast for the device.
-
Page 18: Sending Firmware To The Mio Attaché
Programming The Attaché Sending Firmware to The Mio Attaché You need NetLinx studio to update firmware located on the Mio Attaché. To send firmware to the device: Open NetLinx Studio. Go to Tools > Firmware Transfers > Send to Axcess Device... This opens the Send to Axcess Dialog Window . - Page 19 Programming Mio Attaché Remote Keypad Device...
