MODEL: GDC16RWA / GDC18RWA
GDC18RBA

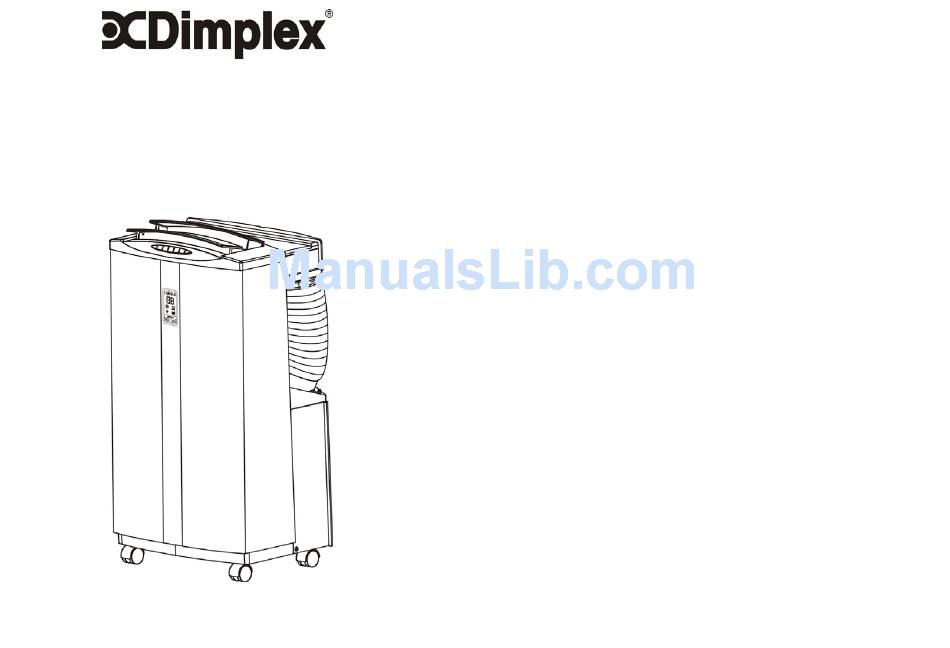

PORTABLE AIR CONDITIONER
INSTRUCTIONS FOR USE
VERY IMPORTANT！
Do not install or use your portable air conditioning unit
before carefully reading this instruction manual.
Please retain this manual for product warranty and future
reference
CAUTION！
1." DO NOT BLOCK VENTILATION "! Please ensure the inlet and outlet ventilation
is not blocked.
2. Always operate this unit on a horizontal surface to avoid water leakage.
3. Do not operate this unit in a corrosive environment.
4. This unit will only operate in an ambient temperature of 17~43 degrees Celsius.
5. Clean the air filter periodically to enjoy the most efficient cooling.
6. If you have turned the unit off, please wait at least 3 minutes before restarting.
This is to prevent any damage to the compressor.
7. This unit needs to be plugged into a 10 Amp power point. Please do not use
extension cords with this unit.
8. This unit is for indoor operation only.
9. Please ensure the adjustable air vent is open whilst in operation. The exhaust hose
and drain pipe must be extended to the closest window prior to use.
10. If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person.
11. The batteries from the remote control must be removed from the appliance
before it is scrapped and disposed of safely.
12. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
1
Advertisement
Table of Contents
Related Manuals for Dimplex GDC16RWA
Summary of Contents for Dimplex GDC16RWA
-
Page 1: Instructions For Use
VERY IMPORTANT！ Do not install or use your portable air conditioning unit before carefully reading this instruction manual. MODEL: GDC16RWA / GDC18RWA Please retain this manual for product warranty and future GDC18RBA reference PORTABLE AIR CONDITIONER CAUTION！ 1." DO NOT BLOCK VENTILATION "! Please ensure the inlet and outlet ventilation is not blocked. -
Page 2: Names Of The Parts
- 24 hour programmable timer that can be used with either the air conditioning or dehumidification setting - Unique sleep control function - Inverter technology (GDC16RWA, GDC18RWA, GDC18RBA) for fast 7. Cool inlet and efficient cooling 8. Cool air filter - Self evaporative system ensuring no drip tray or hose is required ... - Page 3 PUSH BUTTON SWITCHES & DESCRIPTION OF FUNCTION 5. L.E.D. DISPLAY Indicates the current room temperature or the timer setting. If the pre-set temperature is adjusted by the user the display will return back to room temperature automatically. Error Display E1: Indicates open circuit or short circuit in room temperature sensor. E2: Indicates open circuit or short circuit in evaporator temperature sensor.
-
Page 4: Remote Control Function
automatically. ℃ 3. If you press the “POWER” key before the timer is complete, the Note: Cooling function does not operate if the ambient temperature is over 43 set time will be cancelled and the unit will remain turned on. TIMER-OFF: Similarly the timer-off is used to turn the unit off REMOTE CONTROL FUNCTION automatically after the set time is over. -
Page 5: Maintenance
INSTALLATION Install the portable air conditioner in a flat and spacious location where the air inlets and outlets will not be blocked. A minimum clearance of 40cm from a wall or other obstacles should be kept (as depicted below). The appliance should not be used in the laundry. To remove the air filter, please follow the arrow direction and push the filter lightly, then take out the filter for cleaning. -
Page 6: Helpful Hints
Because the machine exerts hot air, please don’t operate it in a confined EXHAUST PIPE AND DRAIN PIPE place. Don’t place the machine in a sunlit corner otherwise the colours of the cabinet will fade. HELPFUL HINTS This unit is fitted with a special thermal cut off device. To remove the exhaust pipe, press down slightly and pull away from the ●... -
Page 7: Troubleshooting
To correct problems not mentioned in the table and/or if the recommended solutions fail to solve the problem, please contact an authorized service centre. Please contact Glen Dimplex for your nearest authorized service agent: Australia – 1300 556 816 New Zealand – (09) 274 8265... -
Page 8: Specifications
476W x 358D x 840H Net Weight 35KG 36KG If you have any issues with your unit, please contact Glen Dimplex for your nearest service agent. Proof of purchase is required at the time of service. Glen Dimplex Australasia Ltd...
