Summary of Contents for Sylvania SDVD8739

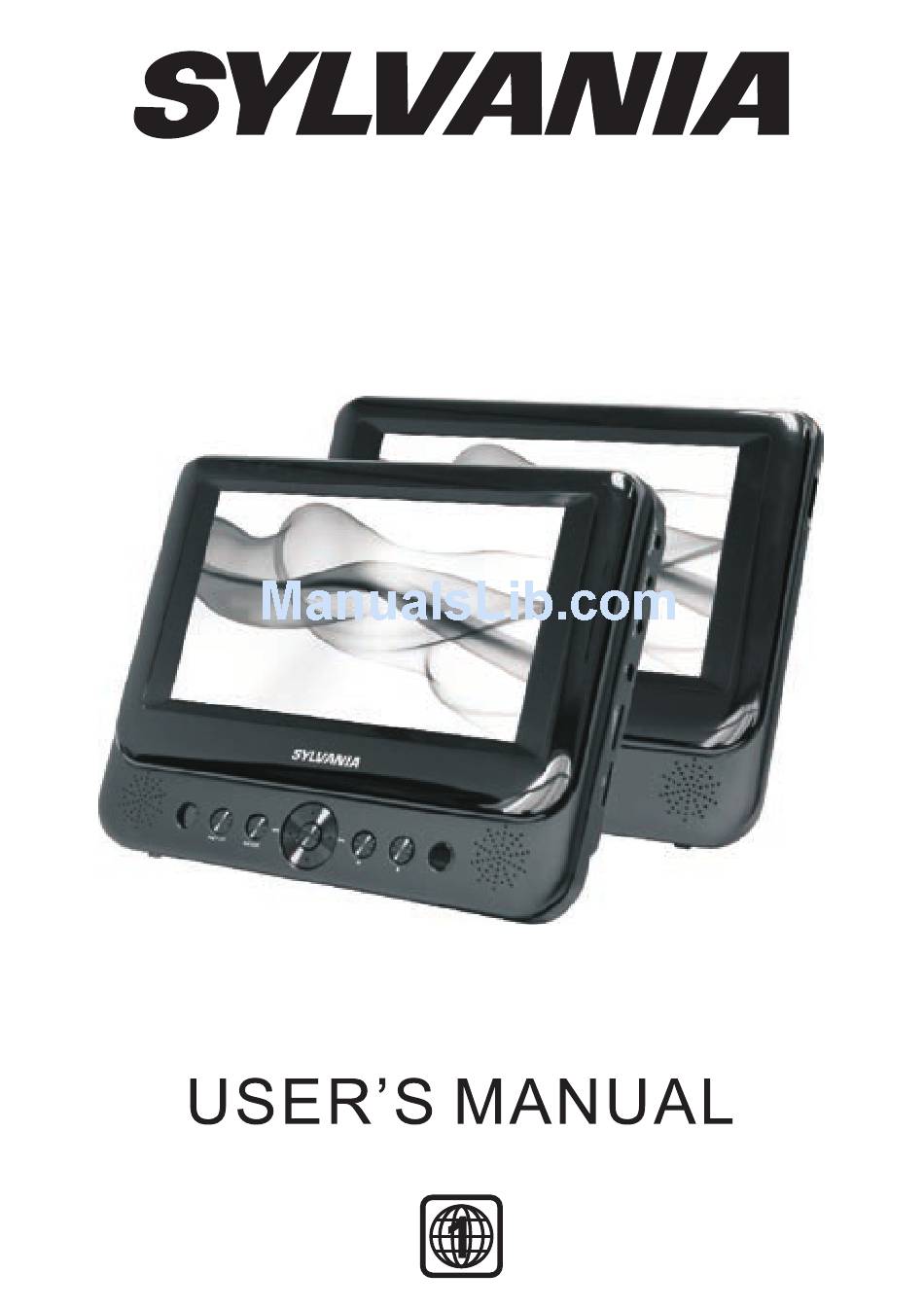

- Page 1 SDVD8739...
-
Page 2: Table Of Contents
Table Of Contents Safety Precaution Package Main Features Main Unit Controls System Connection The Remote Control Basic operation System Setup Specification Troubleshooting... -
Page 3: Safety Precaution
Safety Precaution Thank you for choosing our portable DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for later consultation. - Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 5: Package
Package 7'' LCD Monitor & DVD Player Remote Control with battery DC+Audio/Video Cable AC/DC Power Adapter Cigarette Lighter Adapter User Manual Earphone Mounting Straps Main Features High brightness color 7" LCD screen Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc. Built-in stereo speaker Support PAL/NTSC system Support Multi-language OSD, speed forward/backward,repeat function... -
Page 6: Main Unit Controls
Main Unit Controls 5 6 7 8 CLOSE 1. Open knob 9. DC IN 9-12V 2. Power ON/OFF switch 10. DC OUT 3. SETUP button 11. A V OUT 4. MODE button 12. Earphone jack 13. Volume knob 6.OK button (Function same as 14. - Page 7 Monitor View CLOSE 1. Power ON/OFF 4. AV IN 2. Volume knob 5. DC IN 9-12V 3. Earphone jack 6. Brightness Knob...
-
Page 8: System Connection
System Connection Powering And Installation Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the right of the machine, then plug the other end into the AC power receptacle. Please refer to the following illustration. AV OUT DC OUT If using car cigarette lighter adaptor to connect to the power: Plug one end of... -
Page 9: Connecting To The Monitor
Connecting To The Monitor The unit can also be connected to the external LCD monitor. Connect the unit to power by AC/DC adapter or cigarette lighter adapter. Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor by a DC/AV cable. - Page 10 In Car Installation 1. Fit the straps to the DVD Player / Monitor as required. Please install the units with strap A (long) and strap B (short) together. Turn the player around so the backs are facing you. Strap A through the unit from right clip first, then across the loop in Strap B, last Strap A through the unit left clip.
- Page 11 NOTE: Be sure to complete the installation then use SDVD8739 in the car. For SDVD8739 installation is recommended that the DVD Player is on the LEFT headrest, to ensure a neat cable run to the monitor, as shown below:...
-
Page 12: Connecting With External Speaker
Connecting With External Speaker The unit can be connected with external speaker. Please see the following illustration. AV OUT DC OUT AV CABLE Not supplied VIDEO IN AUDIO IN AMPLIFIER Left front Center speaker Right front speaker speaker SUBWOOFER Left rear speaker Right rear speaker Note: There is no 5.1 channel in the unit, however, after connecting to APM it is... -
Page 13: The Remote Control
The Remote Control 1. Number button 2. TITLE (To display title information) 3. AUDIO (To select audio language) 4. SETUP (To go to or exit setup menu) Previous/Next button (To go to previous/ next chapter or scene during playing) Fast forward/ backward button (To scan forward/backward at 2, 4, 8, 16, or 32 times ) -
Page 14: The Use Of Remote Control
The Use Of Remote Control Please put the battery into the remote control as per illustration below. CR2025 CR2025 When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres. -
Page 15: Basic Operation
Basic Operation MPEG4 SVCD Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3. 1. In the Source Mode, you can press " ", " ", to select and "ENTER" key to enter the source you want. 2. Open the disc door and insert a disc into the door with the label side facing 3. -
Page 16: Fast Forward And Fast Backward
Fast Forward And Fast Backward MPEG4 SVCD When playing disc of DVD, MPEG4, SVCD, VCD, CD, the unit can search forward or backward. 1. Press " ", the unit will search forward. Press it repeatedly ,the unit will play at 2, 4, 8, 16, 32 times of speed. - Page 17 Repeat Playing Of Favorite Scene MPEG4 SVCD When playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, user can repeatedly play a specific section. During playback, press "A-B" button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between A-B.
- Page 18 Zoom in/out 100% When playing disc of JPEG user can zoom in or zoom out the image. During playback, press Zoom button, the image 125% will be enlarged; press it again the image will be enlarged again; press it fifth time, the image will zoom out, press it repeatedly and the image will return to normal status.
- Page 19 Playing JPEG File In Data Disc 1. Place a JPEG disc into the tray, the unit will start reading and play. 2. Press "MENU" to browse JPEG files. 3. Press " " to select a JPEG file and press "ENTER" button to confirm. Note: you can press MENU to return to the folder list.
- Page 20 SD/MMC/USB Main Menu After Enter the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. You can select them by " " press "ENTER" key to confirm. Browser Mode Detail explanation please refer to P19 Photo Mode Detail explanation please refer to P19-20 Music Mode...
- Page 21 Browser Mode In the Browser Mode ,the system will show the list of file and folder. " ", " ", "ENTER" key: select and play " " : Enter the folder 00 00 03 43 001/008 " " : Quit the folder \Ctyy\ Note : if you want to return ..
- Page 22 When playing JPEG : 1. To rotate the picture counter-clockwise, press " "; Press " " to rotate the picture clockwise. 2. Press OSD button when viewing pictures, you can select different refresh mode as follows: from top to bottom from bottom to top from left side to right side from right side to left side...
-
Page 23: Music Mode
Music Mode In the Music Mode, the system will show the list of music file, like MP3 and so on. Press " ", " ", "ENTER", select and play. 128Kbps Press " " to fastward/ backward MP3 during playing. TRACK01 Press "... -
Page 24: System Setup
CD Ripping CD RIP During playing the CD/HDCD disc, Options Track you can enter CD Ripping function. Speed Normal Track 01 03:36 Track 02 03:36 Bitrate 128kbps By pressing subtitle button, DVD Track 03 03:36 Create Id3 Track 04 03:36 player will be able to change the Device USB 1... -
Page 25: General Setup Page
General Setup Page TV display: General Setup Enter this option, user can set screen display format (Nomal/PS, Nomal/LB, Wide) TV Display Wide Normal/PS The default is "Wide". Angle Mark Normal/LB Wide Note: OSD Lang Screen Saver The function depends on the display ratio with which the DVD disc is recorded. -
Page 26: Preference Page
Video Setup Page Video Setup TV Type NTSC TV Type: Quality NTSC Enter this option to select TV type Panel Quality (PAL, NTSC) The default is NTSC. :Move :Return :Entry Video Setup TV Type NTSC Quality Panel Quality Set the Video Quality of AV OUT :Move :Return :Entry... - Page 27 Preference Setup Subtitle Select your preferred language to show the Audio English subtitles on the screen. Subtitle French The default is OFF. Disc Menu German The subtitle languages depend on the Parental Italian information available on each disc, You can Default also change the subtitle language during playback by press the SUBTITLE button.
-
Page 28: Specification
Specification Compatible disc: DVD/VCD/CD/MP3/MPEG4 Signal system: PAL/NTSC Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 10 W Operating temperature: 0~40°C... -
Page 29: Troubleshooting
Troubleshooting PROBLEM SOLUTION Make sure the machine is connected properly. No sound or Make sure all cables are securely inserted into distorted sound the appropriate jacks. You can't advance through the opening credits Can't advance and warning information that appears at the beginning of movies because the disc is through a movie programmed to prohibit that action.
