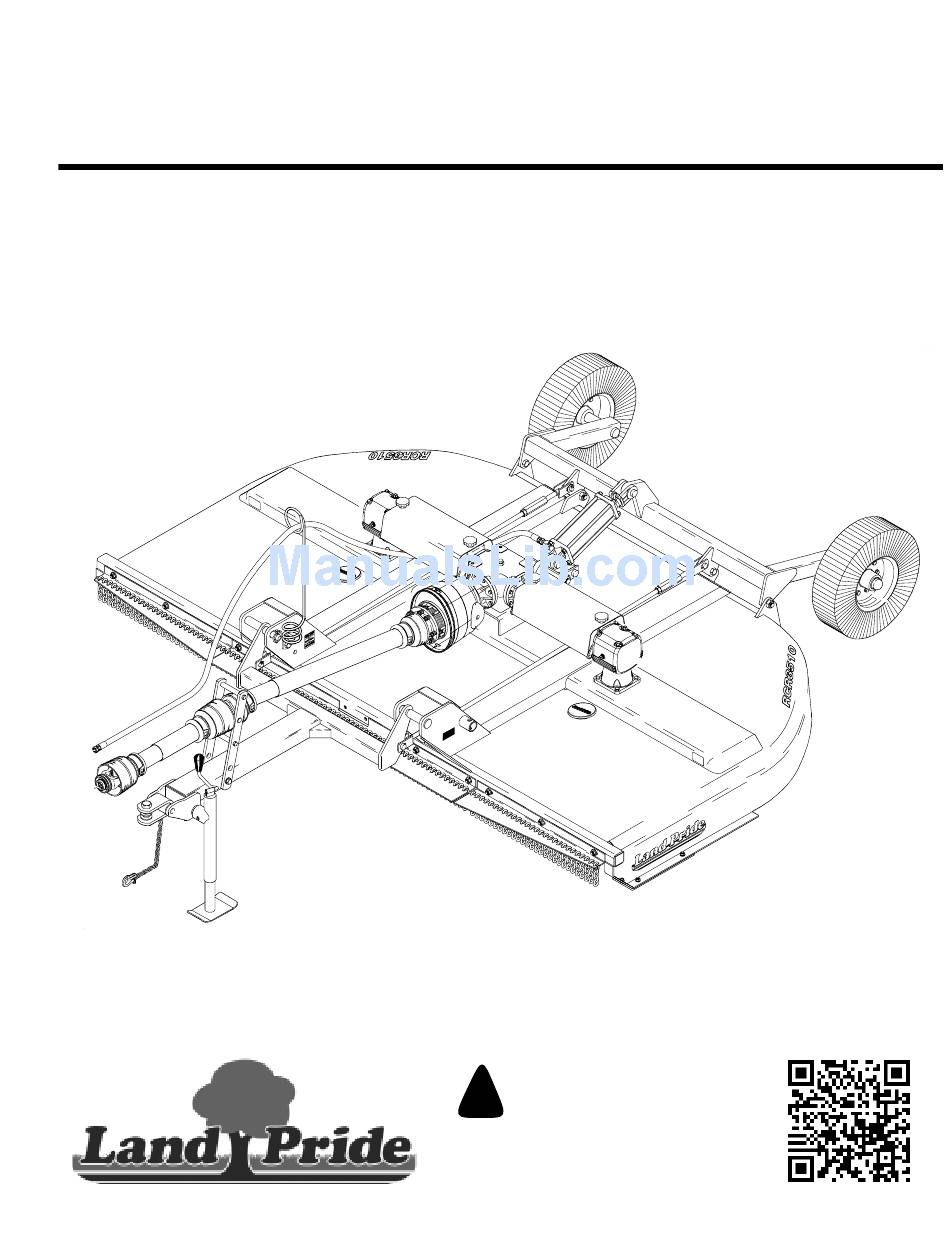

Rotary Cutters
RCR3596, RCRM3596, RCR3510 & RCRM3510
15998
Table of Contents
Read the Operator's Manual entirely. When you
!
see this symbol, the subsequent instructions and
warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Cover photo may show optional equipment
not supplied with standard unit.
© Copyright 2012
312-517M
Operator's Manual
8/15/12
Printed

Advertisement

Table of Contents
loading
