7

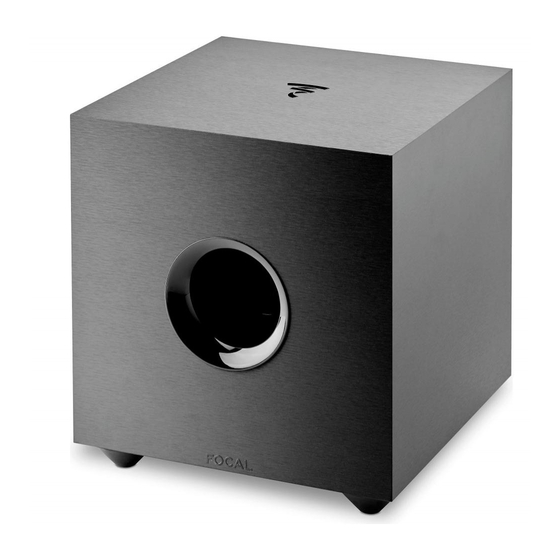

Thank you for purchasing the Cub active subwoofer
which has been designed to be used in a wide range of
audio system applications, stereo or multichannel.
It is ideally partnered with the matching Sib satellite
loudspeaker for a system that combines high performance
sound with elegance and discretion.
In order to gain the maximum performance from this
product it is essential that you read the following
instructions thoroughly. We advise you to keep this guide so that you can consult it
when needed.
Warning :
The active subwoofer should not be exposed to water or moisture.
Objects filled with water (such as fish tanks or plants pots) should not be placed
on the enclosure
Placement and connection:
• Placement:
Position Cub close to the front main speakers, ideally in-between them.
Cub was designed to work with a wide range of compact loudspeakers. We strongly
recommend the Focal-JMlab Sib whose performance guarantees a high level of sound
quality in stereo and home cinema configurations.

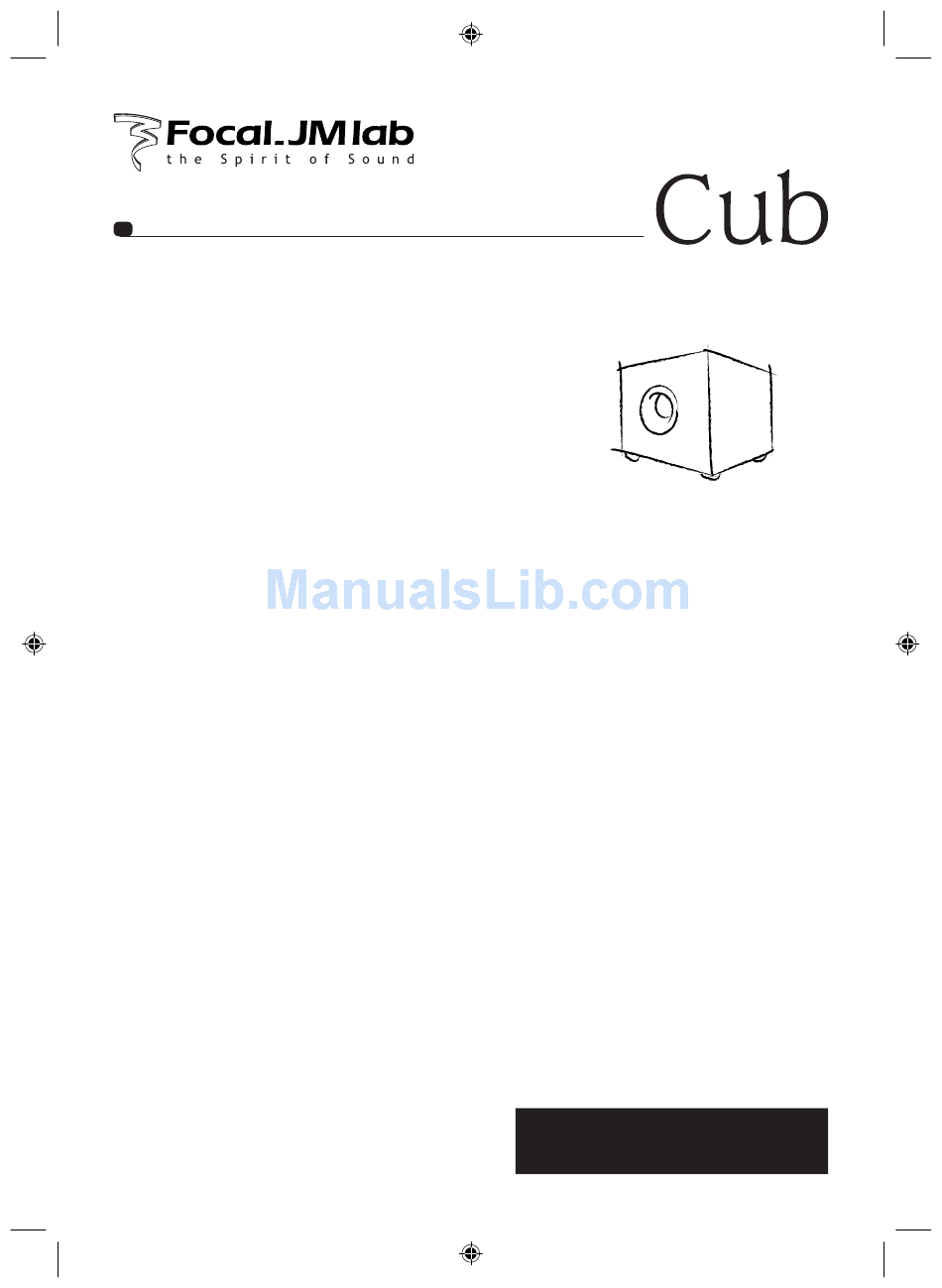

Cub
7
User manual
T
F
-JM
HE
OCAL
LAB
GUARANTEE
13
APPLIES IF PAGE
IS RETURNED TO US
10
WITHIN
DAYS OF PURCHASE
14/02/03, 11:43
ONLY
.
Advertisement
Related Manuals for Focal Cub
Summary of Contents for Focal Cub
-
Page 1: User Manual
• Placement: Position Cub close to the front main speakers, ideally in-between them. Cub was designed to work with a wide range of compact loudspeakers. We strongly recommend the Focal-JMlab Sib whose performance guarantees a high level of sound quality in stereo and home cinema configurations. - Page 2 In the case of high-level connection, Cub should be connected to the amplifier using a high quality pure copper cable of at least 1.5mm. Connect the “+” from the amplifier to the “+” on the Cub (red) and the “-” from the amplifier to the “-” of the Cub (black). 14/02/03, 11:43...
- Page 3 “STANDBY” automatically detects a music signal. Turn the “CROSSOVER” control three-quarters of the way to the right approximately 120Hz if you use the Focal-JMlab Sib Adjust the “VOLUME” setting to the desired level. Select the “PHASE” position that gives the most powerful bass.
-
Page 4: Operational Problems
User manual Operational problems The subwoofer produces no sound at The indicator light does not always- • • all. Check - in this order light up - Is the mains cable connected? - Check the mains fuse - if necessary - Is the wall-socket working? replace it with one of the same value. - Page 5 - Too high a level. Caution: When changing from 230V to 115V, the fuse value must be Focal-JMlab subwoofers are equipped changed. See the inscription on the with electronic protection that will cut the amplifier in case of overload amplifier panel.
-
Page 6: Specifications
T e l . 0 0 3 3 4 7 7 4 3 5 7 0 0 - F a x 0 0 3 3 4 7 7 3 7 6 5 8 7 - w w w . f o c a l - f r . c o m Due to constant technological advances, Focal-JMlab reserves its right to modify specifications without notice. Images may not conform exactly to specific product. ©Focal-JMlab-SC-030212/1...
