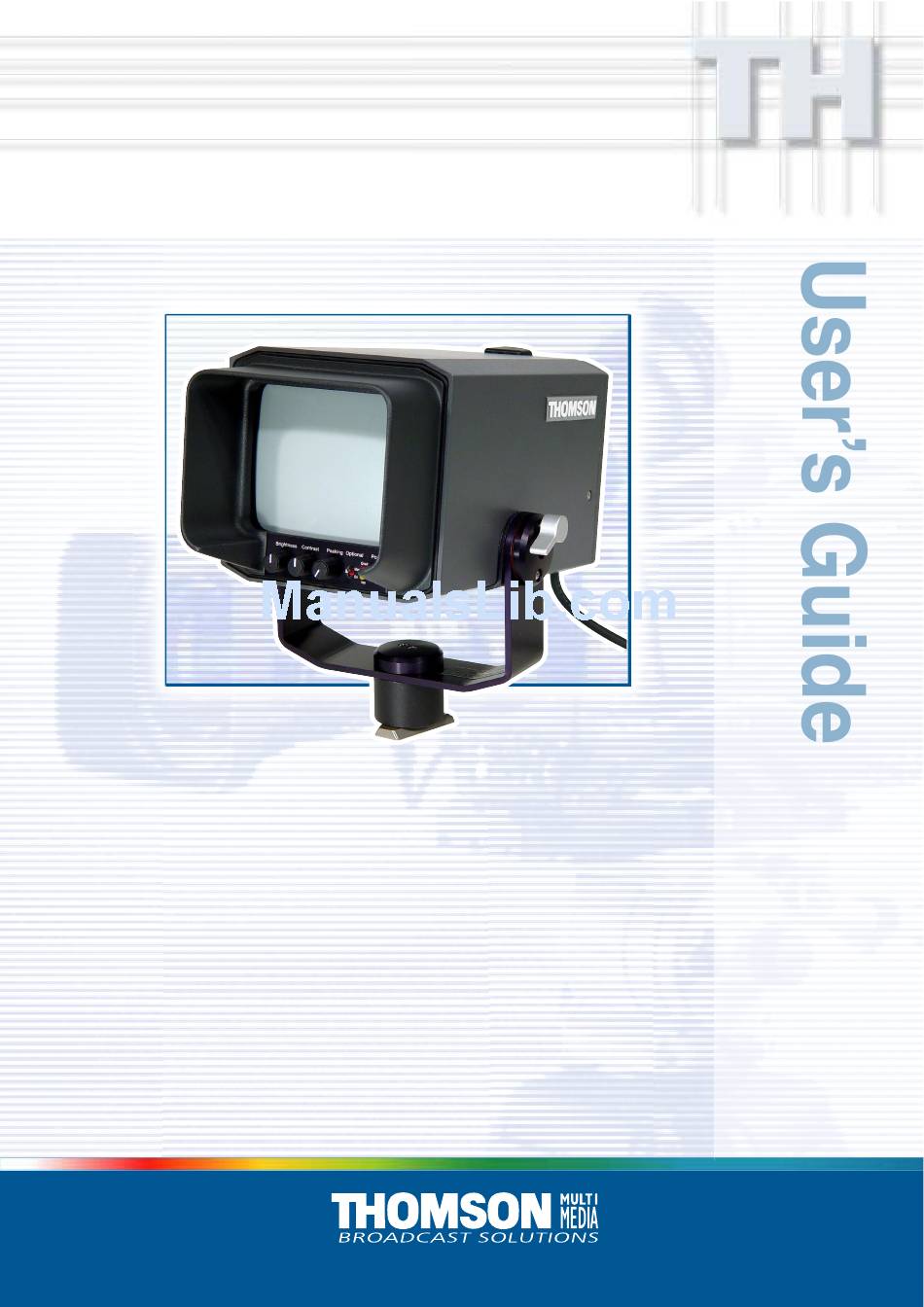

- Page 1 LDK 5310 LDK 5310 LDK 5310 LDK 5310 LDK 5310 5-inch SDTV Viewfinder 3922 496 48541 St.01...
-
Page 2: Declaration Of Conformity
Declaration of Conformity We, Thomson Broadcast Solutions Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands declare under our sole responsibility that this product is in compliance with the following standards: EN60065 : Safety EN55103-1 : EMC (Emission) EN55103-2 : EMC (Immunity) following the provisions of: a. -
Page 3: Table Of Contents
Electrical Drawings .......... 2-1 On Air Board ............2-2 Video Pre Amp /IIC Interface Board ....2-4 SMPS DC-DC Converter Board ......2-8 CRT Board ............2-12 Deflection Board ..........2-14 02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder... -
Page 4: Safety Instructions
It is strickly prohibited to short circuit the inner and outer shields of a triax cable used to connect a camera to a base station. User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4... - Page 5 • The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLACK. Ensure that your equipment is connected correctly - if you are in any doubt consult a qualified electrician. 02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
-
Page 6: About This Manual
If a unit is being returned to Thomson Multimedia Intended audience Broadcast Solutions for servicing, try to use the The manual is intended as a guide to those with a containers and materials of the original packaging. -
Page 7: Operating Instructions

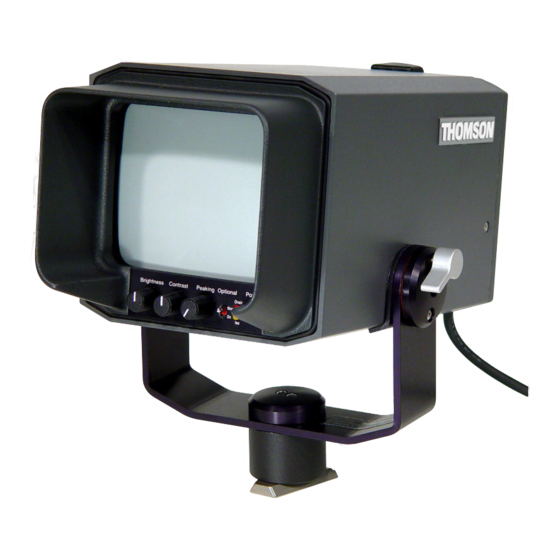

Operating Instructions The 5 inch viewfinder LDK 5310/00 is intended for use with LDK100 series cameras. Attaching the 5" viewfinder to the camera Caution Before connecting, make sure that the camera is switched off. a. Slide the top mount into the slot on the camera, until you hear it click into place. - Page 8 ISO indicator Lights to indicate that the camera is selected and ready to be switched on-air. Optional switch This switch is mounted on the viewfinder to allow future features to be incorporated. User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4...
-
Page 9: Connections
0-12dB at approx. 3.5MHz Black level stability Change of black level 1.5% with respect to white level Environmental conditions: Operating temp.: -20 to +45 °C Non-operating temp.: -25 to +70 °C Operating humidity: 02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder... - Page 10 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4...
-
Page 11: Electrical Drawings
Electrical Drawings Contents On Air Board ............2-2 CRT Board ............2-12 Video Pre Amp /IIC Interface Board ....2-4 Deflection Board ..........2-14 SMPS DC-DC Converter Board ......2-8 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder... - Page 12 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 13 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
- Page 14 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 15 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
- Page 16 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 17 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
- Page 18 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 19 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
- Page 20 2-10 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 21 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-11...
- Page 22 2-12 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 23 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-13...
- Page 24 2-14 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
- Page 25 Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-15...
- Page 26 2-16 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings...
-
Page 27: Mechanical Exploded Views
Section 3 Mechanical Exploded Views Contents Mech. 5-inch Viewfinder short ......3-2 5-inch Viewfinder ..........3-4 VF-Bracket-ASSY ..........3-3 Mecanical Exploded Views User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder... - Page 28 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Mecanical Exploded Views...
- Page 29 Mecanical Exploded Views User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
- Page 30 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Mecanical Exploded Views...
- Page 31 Section 4 Parts Lists Parts Lists User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder...
- Page 32 SERVICE PARTS LIST Item Description Code Number Item Description Code Number USER’S GUIDE LDK5310 BM618 ISOL MANCH M3 OD75 NYLON 3922 450 05001 RINGCORE TN23/14/7 4C65 3922 450 04781 BM701 ON-AIR-LENS 3922 400 09311 FERRITE CORE D14.5 D8.4 X 5.5 3922 450 04791 BM702 LED-SEAL...
-
Page 33: Mech.5Inch Viewfinder Short
SERVICE PARTS LIST Item Description Code Number FRONT 5INCH VF REVISED 3922 402 04242 3922 407 26752 EXTRUSION 3922 404 24101 RAIL 3922 404 24161 742T CSK SCR STL ST M3X6 5322 502 14498 744T CSK SCR STL ST M3X12 2522 203 04026 products market with "s"... -
Page 34: Vf-Bracket-Assy
SERVICE PARTS LIST Item Description Code Number V-BLOCK 5322 466 10936 VF SHAFT 3922 404 29041 VF SPRING CAP 3922 404 29051 SPRING POWEL ST BLK. 3X8 5322 529 50221 VF BRACKET 3922 404 29061 5322 401 11147 STANDOFF M3X10 2531 499 05013 PE SHRINK SL BL RNF 1/8INCH WASHER... - Page 35 SERVICE PARTS LIST Item Description Code Number C702 MKTPHI P 10N 10% 2E 250V 2222 370 35103 D701 BZX79-C10 DIODE DO-35 4822 130 61219 J701 HDR L 1E 4P ANGLED GOLD/BROWN 3922 450 04641 LD701 LED 5MM HI-BRI TOSHIBA 3922 450 05301 LD702 LED 5MM HI-BRI TOSHIBA 3922 450 05301...
- Page 36 SERVICE PARTS LIST Item Description Code Number Item Description Code Number MULTIFUSE 4A/30V 3922 450 04761 D510 DIOPHI P FAST SOD80C S 4822 230 80466 C401 NP0PHI P 100P 10% 1206 100V 2222 863 13101 D511 BAV99 DIODE SOT-23 9332 153 70215 C402 NP0PHI P 560P 5% 1206 63V 2222 863 12561...
- Page 37 SERVICE PARTS LIST Item Description Code Number R515 RC2PHI P 330K 1% 1206 2322 724 53304 R516 RC2PHI P 220K 1% 1206 S 2322 724 52204 R517 RC2PHI P 1M 1% 1206 S 2322 724 51005 R518 RC2PHI P 33K 1% 1206 S 2322 724 53303 R519 RC2PHI P 560E 1% 1206 S...
- Page 38 SERVICE PARTS LIST Item Description Code Number Item Description Code Number FUSE T630MA TR5 WICKMANN 3922 450 04451 P104 POTMETER 10K SFERNICE 10% 2340 200 35103 FERRITE CORE ON WIRE 2UH 3922 450 04801 RC2PHI P 10K0 1% 1206 S 2322 724 51003 X7RPHI P 100N 10% 1206 63V 2222 591 16641...
- Page 39 SERVICE PARTS LIST Item Description Code Number Item Description Code Number R118 RC2PHI P 4K70 1% 1206 S 2322 724 54702 T104 TRAPHI P SMSIG TO92 C 4822 130 44246 R119 RC2PHI P 4K70 1% 1206 S 2322 724 54702 T105 TRANSISTOR PH2369 4822 130 41594...
- Page 40 SERVICE PARTS LIST Item Description Code Number C301 MKTPHI P 100N 10% 2E 100V 2222 370 85104 C302 MKTPHI P 100N 10% 2E 100V 2222 370 85104 C303 ELCPHI P 22U 20% 1E4 100V 2222 135 89229 C304 MKTPHI P 100N 10% 2E 63V 2222 370 75104 C305 KERPHI P 4N7 10% 2E 100V...
- Page 41 SERVICE PARTS LIST Item Description Code Number Item Description Code Number C201 ELCPHI P 150UF 20% 2E 16V 2222 036 55151 C302 MKTPHI P 100N 10% 2E 100V 2222 370 85104 C202 ELCPHI P 220U 20% 2E 16V 2222 135 25221 C303 ELCPHI P 22U 20% 1E4 100V 2222 135 89229...
- Page 42 SERVICE PARTS LIST Item Description Code Number Item Description Code Number Q302 TRANSISTOR BC556 TO92 4822 130 40989 R262 RC2PHI P 91K00 1% 1206 S 2322 724 59103 R200 RC2PHI P 220E 1% 1206 S 2322 724 52201 R263 RC2PHI P 390K 1% 1206 2322 724 53904 R201 RC2PHI P 2M2 1% 1206 S...
- Page 43 SERVICE PARTS LIST Item Description Code Number T218 TRAPHI P SMSIG SOT 2 1206 4822 130 42614 T219 TRAPHI P SMSIG SOT 23 S 5322 130 60123 T220 TRANSISTOR VN2406L 3922 450 05311 T221 TRAPHI P SMSIG T092 C 5322 130 44864 T223 TRAPHI P SMSIG SOT 23 S 5322 130 62802...
