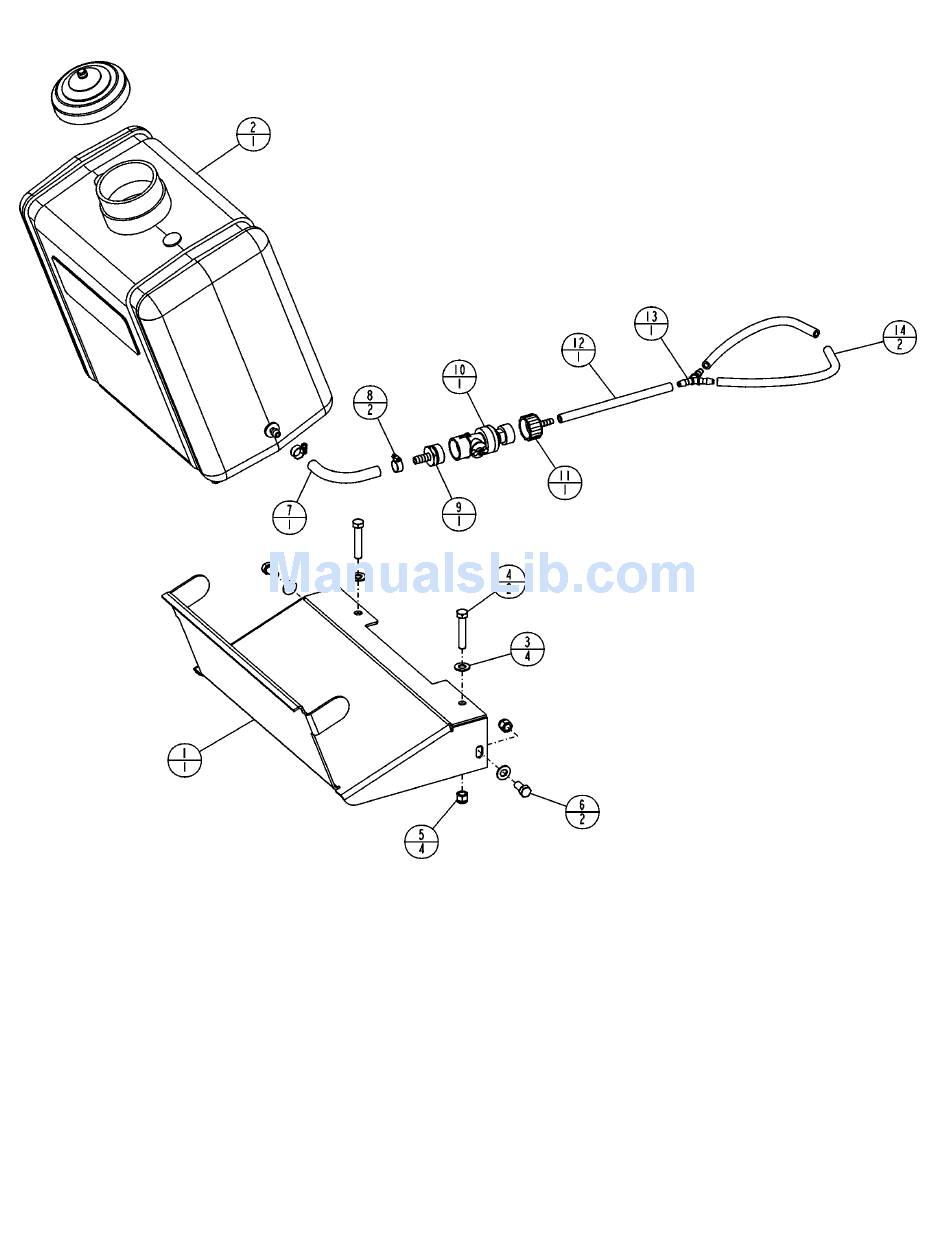

Diagram 10 – Kit, Water Tank (174957)
BILL OF MATERIAL
INDEX P/N DESCRIPTION
1 196035 Bracket, Water Tank
2 174648 Water Tank (w/cap), 7 Gallon
3 020764 Washer, Flat .375 SAE
4 020509 Capscrew, Hex Hd .375-16UNC x 2.00
5 020199 Locknut, Fiber .375-16UNC
6 020322 Capscrew, Hex Hd .375-16UNC x .75
7 139722 Hose, 3/8 ID x 4.4
8 020049 Hose Clamp, Worm Drive
9 174016 Fitting, Hose Barb 3/8 ID x 3/4 Male
10 174741 Kit: Quick Disconnect Garden Hose w/Valve
11 196037 Fitting, 3/4 FGH SWV x 1/4 HB Nylon
12 187667 Hose, 1/4 ID x 7in
13 196038 Fitting, 1/4 Y Nylon LP
14 187667 Hose, 1/4 ID x 9in
38
QTY
1
1
4
2
4
2
1
2
1
1
1
1
1
2
