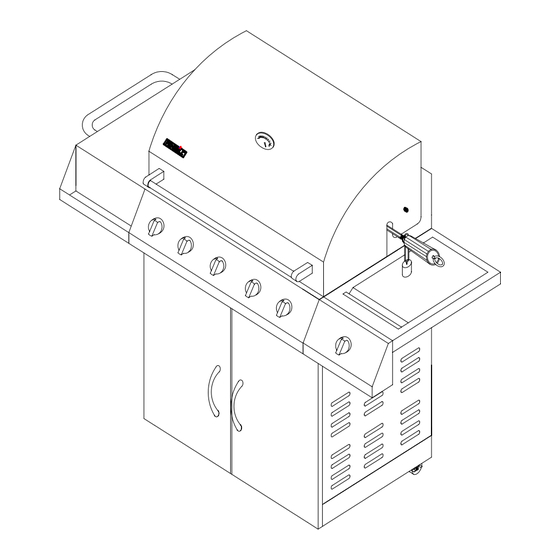

- Page 1 STAINLESS STEEL GAS GRILL USE AND CARE GUIDE MODEL NO:720-0324 ® FOR OUTDOOR USE ONLY PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE.
-
Page 2: Table Of Contents
MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not found on other grills, we recommend that you read this entire booklet before your first use. Keep it in a handy place as it has answers to questions that may occur during future use. -
Page 3: Precaution
PRECAUTIONS FOR YOUR SAFETY CALIFORNIA PROPOSITION 65-WARNING If you smell gas: The burning of gas fuel generates some by-products, Shut off gas to the appliance. which are on the list of substances, which are known by Extinguish any open flames. the State of California to cause cancer or reproductive harm. - Page 4 PRECAUTIONS DO NOT STORE ITEMS THAT ATTRACT CHILDEN Moist or damp potholders on hot surfaces may cause AROUND OR BELOW THE GRILL OR IN THE CART. burns from steam. Do not use a towel or bulky cloth in NEVER ALLOW CHILDREN TO CRAWL INSIDE OF place of potholders.
-
Page 5: Placement Of The Grill
PRECAUTIONS Do not use the grill for cooking excessively fatty This stainless steel grill is designed for optimum meats or products which promote flare-ups. Do not performance without the use of briquettes. Do not place operate the grill under unprotected combustible briquettes on the radiant as this will block off the area construction. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS PLEASE READ THE INSTRUCTIONS THROUGHLY AND FOLLOW STEP BY STEP. HARDWARE PACK DESCRIPTION SPECIFICATION QUANTITY TRUSS HEAD SCREW 1/4”X10MM 4PCS SPLIT LOCK 1/4” 4PCS TRUSS HEAD SCREW 5/32”X10MM 9PCS SPLIT LOCK 5/32” 9PCS TRUSS HEAD SCREW 1/4” X15MM 49PCS SPLIT LOCK 1/4”... - Page 7 ASSEMBLY INSTRUCTIONS STEP 2: Use 6 pcs of truss head screw( ) and 6 pcs of split lock (pack C), to 1/4”x15mm Screw the left and right side panels to the bottom panel as shown figure below. When installing the right and left panel, the flat side must face outside. Pack C STEP 3: Assemble back panel to bottom panel with 3 pieces of truss head screw(1/4”x15mm ) and 3pieces of 1/4”...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4: Assemble the two side panels with 2 pcs of truss head screw (1/4”x15mm)and 2 pieces split lock (pack C) to the back panel. Pack C Step 5: Assemble the leg of clapboard with 2pcs of truss head 5 /32”x10mm screw and 2pcs split lock (pack B ) to the bottom panel as shown figure below.
- Page 9 ASSEMBLY INSTRUCTIONS 5/32”x10mm truss head screw and 2pcs of split lock Step 6: Assemble the clapboard with 2pcs of (Pack B) to the leg as shown figure below. Pack B STEP 7:Assemble the cart frame with 4 pieces of 1/4”x15mm truss head screw and 4 pieces of split lock(pack C) to the side panels as shown figure below.
- Page 10 ASSEMBLY INSTRUCTIONS 5/32”x10mm screw and 2pcs split lock(pack B) to screw the Step 8:Use 2pcs of truss head Individual panel to the back panel as shown figure below. Pack B Step 9: Fix the individual panel with 2pcs of 5/32”x10mm truss head screw and 2pcs split lock(pack B) to the cart frame as shown figure below.
- Page 11 ASSEMBLY INSTRUCTIONS Step10: A: Assemble the left door: To insert the door in the hole of extended metal piece at the grill bottom;press the hinge on the top of the door to insert it into the hole on upper extended metal piece as shown figure below..
- Page 12 ASSEMBLY INSTRUCTIONS STEP 12: Insert the upper portion of grill onto the cart from top as shown figure below. Caution!The firebox is heavy,and we recommend two or more people to lift up firebox.
- Page 13 ASSEMBLY INSTRUCTIONS Step 13: Open the lid ,take out the cooking grid first, screw tighten the fire box with 3pcs of 5/32”x10mm truss head screw and 3pcs split lock(pack B) to the back panel. Then use 4pcs of 1/4”x15mm truss head (Pack C)and 4pcs of split lock to screw the fire box to the side panels.
- Page 14 ASSEMBLY INSTRUCTIONS STEP 14 :A: Assembly the side shelf with 6 truss head 1/4”x15mm screw with 6 split lock (pack C) to the left panel as shown figure below. B: Assemble the side burner with 6 truss head 1/4”x15mm screw with 6 split lock (pack C) to the right panel.
- Page 15 ASSEMBLY INSTRUCTIONS Step:15 Side burner valve assembly: Step 1: Insert valve assembly through side Step 2: Remove 4(four) screw&split lock panel from the “U” brackets on the side (Side panel, right) burner. Step 3: Insert valve stem assembly into burner Step 4: Insert valve stem assembly into tube.
- Page 16 ASSEMBLY INSTRUCTIONS Step 5: Replace “U” brackets with 4(four) Step 6: Align & tighten knob seat &valve Screws( DO NOT TIGHTEN) stem with 2(two)screws&split lock Note:(Make sure hose is not bent) as shown below. Valve Stem Knob Seat Step 7;Tighten all 4(four) screws on the “U” Step 8: Place knob on valve stem and secure brackets on the burner, then connect with the wrench tool.
- Page 17 ASSEMBLY INSTRUCTIONS Step 16: Hang up the 4 utensil hook into the holes in the side shelf. Step 17: Assemble the push bar with 2pcs of 1/4”x15mm screw with 2 split lock (pack C) to the Side shelf.
- Page 18 ASSEMBLY INSTRUCTIONS Step 18: Assemble the motor bracket with 2pcs of truss head 2 pieces of 1/4”x10mm screw and 2 pieces of split lock (pack A) the left side shelf.Then assemble the rotisserie kit as shown figure below. Pack A...
- Page 19 ASSEMBLY INSTRUCTIONS Step 19:Put the gas tank into the gas tank pull-out tray. Then tighten up the gas tank retention bolt. 1.With hand attach propane gas tank to regulator inlet fitting by turning the regulator clockwise until tight as shown in figure below. 2.LP gas cylinder must be fitted with a listed overfill prevention device(OPD) .
- Page 20 ASSEMBLY INSTRUCTIONS Step 20:To lock and unlock the liquid propane gas cylinder tray,press the gas cylinder Tray’s top button A to lock.Press the side button B to unlock.
- Page 21 ASSEMBLY INSTRUCTIONS STEP 21: Your grill is ready to use!
-
Page 22: Gas Hook-Up
GAS HOOK-UP NEVER CONNECT AN UNREGULATED GAS QCC1 in the standard for compressed gas cylinder SUPPLY LINE TO THE APPLIANCE. USE THE valve outlet and inlet connection ANSI/CGA-V-1. REGULATOR/HOSE ASSEMBLY SUPPLIED. Manifold pressure: (operating): 10” water column This is a liquid propane configured grill. Do not (W.C.), (non-operating): 11.2”... - Page 23 GAS HOOK-UP valve, hand tighten the nut clockwise to a complete To disconnect L.P. gas cylinder: stop. Do not use a wrench to tighten. Use of a 1. Turn the burner valves off. wrench may damage the quick coupling nut and result in a hazardous condition.
-
Page 24: Leak Testing
LEAK TESTING GAS FLOW CHECK Check all gas supply fittings for leaks before each use. It is handy to keep a spray bottle of soapy water Each grill burner is tested and adjusted at the factory near the shut-off valve of the gas supply line. Spray prior to shipment;... -
Page 25: Operation Instructions
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND USING ROTIS Kit ROTISSERIE The rotisserie motor is capable of turning up to a 12lb. Each main burner is rated at 10,000 Btu/hr. The main cut of meat or poultry. The motor slides onto the grill burners encompass the entire cooking area and stainless steel motor mount. -
Page 26: Grill Lighting Instructions
OPERATING INSTRUCTIONS WARNING: Keep the rotisserie motor electric cord away ELECTRICAL GROUNDING INSTRUCTIONS: This from the heated surfaces of the grill. When appliance (rotisserie motor) is equipped with a plug and not in use remove and store the motor in a should be plugged directly into a properly grounded dry location. -
Page 27: Using Side Burner
GRILL LIGHTING INSTRUCTIONS FLAME CHARACTERISTICS If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to Check for proper burner flame characteristics. Each dissipate. Keep your face and hands as far away from burner is adjusted prior to shipment;... -
Page 28: Care And Maintenance
USING SIDE BURNER control knob to “OFF”. If the smell of gas is detected counterclockwise to “HI”. Move your hand immediately and the igniter is not functioning, immediately turn the once the burner is lit. Rotate the control knob to the control knob “OFF”. -
Page 29: Lighting Illustration
LIGHTING ILLUSTRATION Main & Side Burner Lighting Illustration Step 1. Make sure the Lid is open Step 2. Push and turn one of main or side burner knobs to HI position Step 3. You may need 3 or 4 trials to light the burner. - Page 30 FLAME ILLUSTRATION Approximate 1 1/2 “ Flame Height...
-
Page 31: To Match Light The Grill
TO MATCH LIGHT THE GRILL If the burner will not light after several attempts then the burner can be match lit. If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. -
Page 32: Care And Maintenance
CARE AND MAINTENANCE scraper. Clear any clogged ports with a straightened straightened paper clip. Never enlarge the burner ports. paper clip. Never use a wooden toothpick as it may Never use a wooden toothpick as it may break off the break off and clog the port. - Page 33 TROUBLE SHOOTING CHECK LIST PROBLEMS WHAT TO DO Grill won’t light when the Check to see if LP tank is empty. control knob is rotated. Clean wire(s) and/or electrode by rubbing with alcohol and clean swab. Wipe with dry cloth. Make sure the wire is connected to electrode assembly.
-
Page 34: Enlarge View
ENLARGED VIEW... -
Page 35: Parts List
MODEL 720-0324 PARTS LIST REF# DESCRIPTION Q’TY REF# DESCRIPTION Main Lid Door handle Heat Indicator Bottom panel Name Plate 3"caster with brake Heat Insulating Spacer Tank Slide Bracket Main Lid Handle Assembly Tank Slide Assembly Rotisserie Motor Gas Tank Tray... -
Page 36: Ordering Parts
To obtain replacement parts, contact the dealer from which products was purchased. If dealer service is not available, contact: Nexgrill Industries, Inc. customer service 1-800-913-8999 or fax 1- 909-598-1545. GRILL HINTS... -
Page 37: Grill Cooking Chart
GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS FLAME SIZE TIME AND TIPS VEGETABLES Slice. Dot with butter or margarine. Wrap in heavy-duty foil. Fresh Grill, turning occasionally. Beets Medium 12 to 20 minutes Carrots Grill, turning once. Brush occasionally Turnips with melted butter or margarine. - Page 38 Rib eye, WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS FLAME SIZE TIME AND TIPS Tenderloin, Porterhouse, T-Bone, Sirloin Remove excess fat from edge. Slash remaining fat at 2-inch Rare 1 inch High 8 to 14 minutes intervals. Grill, turning once. 1-1/2 inch High 11 to 18 minutes...
- Page 39 Place skin side up. Grill, turning and brushing frequently with melted butter, Low or Broiler/fryer 2 to 3 pounds 1 to 1-1/2 hours margarine, oil or marinade. Halved or Medium 40 to 60 minutes Quartered well-done Breasts well-done Medium 30 to 45 minutes WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS...
-
Page 40: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS BBQ SALMON TANGY SEAFOOD KABOBS Half hour before cooking, turn the burner to the grill on full. Drain seafood reserving 1 lb. Large shrimp, shelled & deveined 2 large salmon steaks marinade. On each of twelve 10” skewers, ¾... - Page 41 GRILL RECIPE SUGGESTIONS Preheat grill. Combine cheese, condensed Pound flank steak to ¼ inch thickness or In blender, process 1/3 c. water, onion, soy soup, milk, BBQ sauce, oregano, salt and flatten chicken breasts. Mix oil, lime juice sauce, 2 tsp. oil and the next 8 ingredients pepper in a large mixing bowl.
- Page 42 GRILL RECIPE SUGGESTIONS CHICKEN TANDOORI STYLE the rack and to its center, penetrate the minutes. Cook for approximately 3 hours. second rib with the pointed end of the spit The basting sauce combined with turkey 8 large chicken thighs or drumsticks and push it between the meat.
-
Page 43: Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage resulting from any of the following: negligent use or misuse of the product, use on improper fuel/gas supply, use contrary to operating instructions, or alteration by any person other than our factory service center.
