Onkyo CS-N755 Specifications

2012 NEW PRODUCT RELEASE

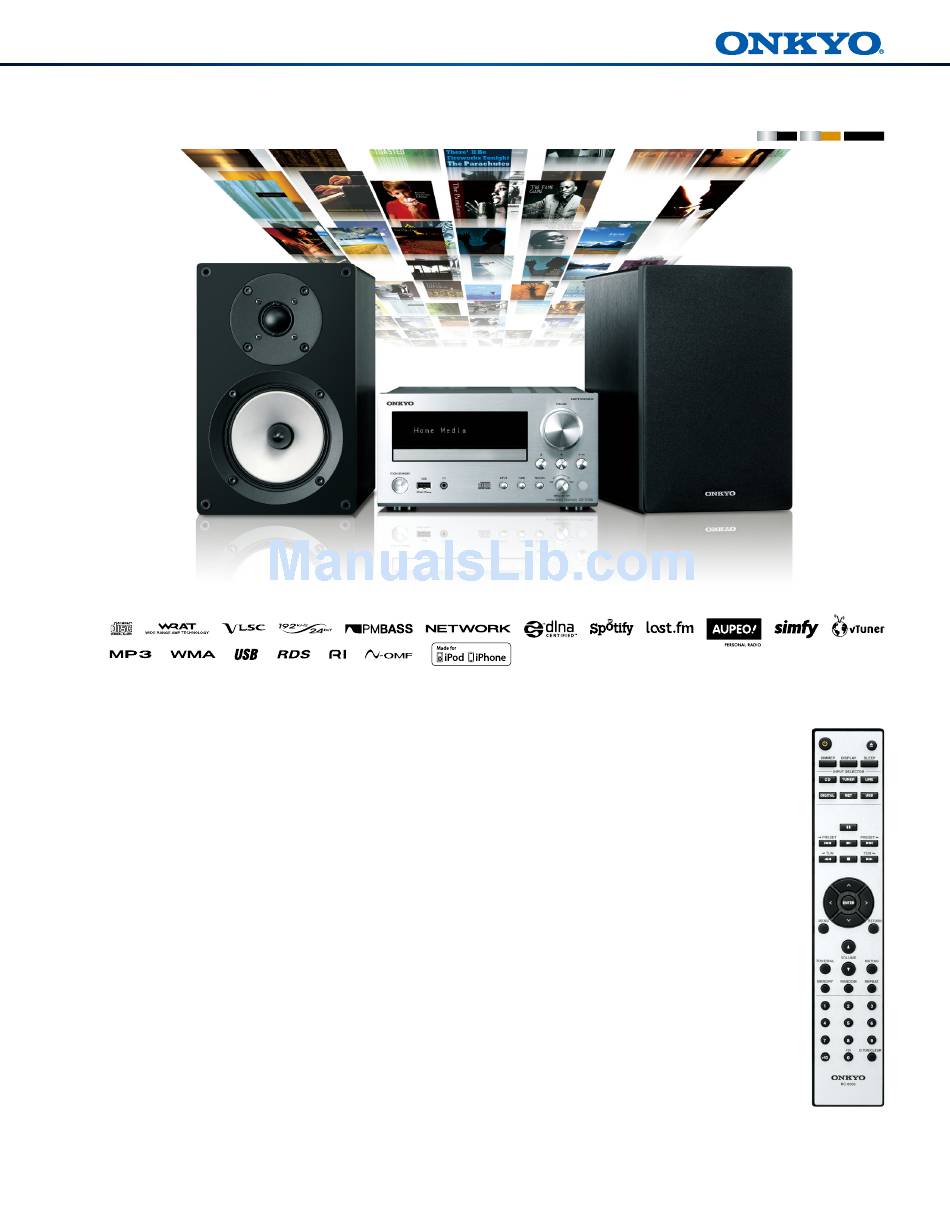

CS-N755
Premium Audio Technology Meets Compact Design
Stream tracks from online music services, relax to an internet radio program, or air your digital music collection with
the clarity and assurance of a high-end audio component. With wireless-capable ethernet and optional Bluetooth USB
adapter, you can source music from a preloaded selection of online channels—including Spotify, vTuner, and Last.fm—or
stream from your smart phone, PC, tablet, or iPhone. Then there's the quality front-loading CD player, FM/AM tuner with
40-station preset memory, USB port for iPod/iPhone, and digital inputs linked to the 192 kHz/24-bit DAC for playback
of lossless formats stored on computer. Of course, being an Onkyo product, you're assured of outstanding sound quality,
with a deep and natural bass resonance. Three-Stage Inverted Darlington amplifier technology is sourced directly from the
company's high-end audio components, while the symmetrical channel layout and short signal pathways reduce unwanted
noise and help to produce a well-separated stereo sound. Solid two-way bookshelf speakers feature N-OMF cones,
and, like the receiver, come in a choice of finishes. Controlled via remote app for selected smart phones, the CS-N755
integrates your digital life and elevates music to spectacular new heights.
CR-N755 Network CD Receiver
• 22 W/Ch
(4 Ω, 1 kHz, 0.4% THD, 2 Channels Driven, IEC)
• Plays Audio CD, CD-R, and CD-RW*
1
• Internet Radio and Music Streaming Connectivity
via Ethernet (vTuner, Last.fm, Spotify, Simfy, AUPEO!)*
• Home Network Capability with DLNA Version
1.5 Certification
• Playback of Audio Files Through Local Network and
USB (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg
Vorbis, AAC, LPCM, Apple Lossless, DSD)
• Supports Onkyo Remote Apps for iPod touch/
iPhone* 3 and Android Phone* 4
• Three-Stage Inverted Darlington Circuitry
• Symmetrical Power Amplifier Circuit Design
• WRAT (Wide Range Amplifier Technology)
• VLSC (Vector Linear Shaping Circuitry)
™
Network Hi-Fi Mini System
• Short Signal Paths Between Amplifier and Power
Supply Stage
• Low Noise Design
• High Slew Rate (90 V/μsec)
• Phase-Matching Bass Boost
• Extra Transformer for Standby Mode
2
• 192 kHz/24-Bit Audio DAC (WM8718)
• Wide Band-Pass Filter
• Advanced Music Optimizer for Compressed Digital
Music Files
• Front-Panel USB Port for iPod/iPhone or Flash
Memory Device
• Compatible with Optional UWF-1 Wireless LAN
Adapter and UBT-1 Bluetooth USB Adapter
• Digital Audio Inputs (Optical and Coaxial)
• 3 Analog Audio Inputs and 1 Output
• Subwoofer Pre-Out
• 1.2 mm Thick Solid Chassis
• Display Dimmer (Normal/Dim/Dimmer)
• Transparent, Gold-Plated Speaker Posts
• 40 Preset FM/AM Stations
• RDS (PS/RT)
• Tone Control (Bass/Treble)
• Remote Control
*1 Discs should be properly finalized. *2 Availability of services depends on
region. Availability of third-party services advertised here is accurate at the
time of printing, but may be subject to change without notice. *3 Compatible
with iPod touch (3rd generation or later) and iPhone 3GS or later. (All models
require iOS 4.2 or later.) *4 Requires Android OS 2.1 or later.
D-055 2-Way Bass Reflex Speakers
• 12 cm N-OMF Diaphragm Woofer
• 2.5 cm Soft-Dome Tweeter
• Center-Mounted Equalizer on Woofer for Clear
Vocal Sound
• Black Rubber Finish Speaker Baffle
SILVER BLACK SILVER WOOD BLACK BLACK
