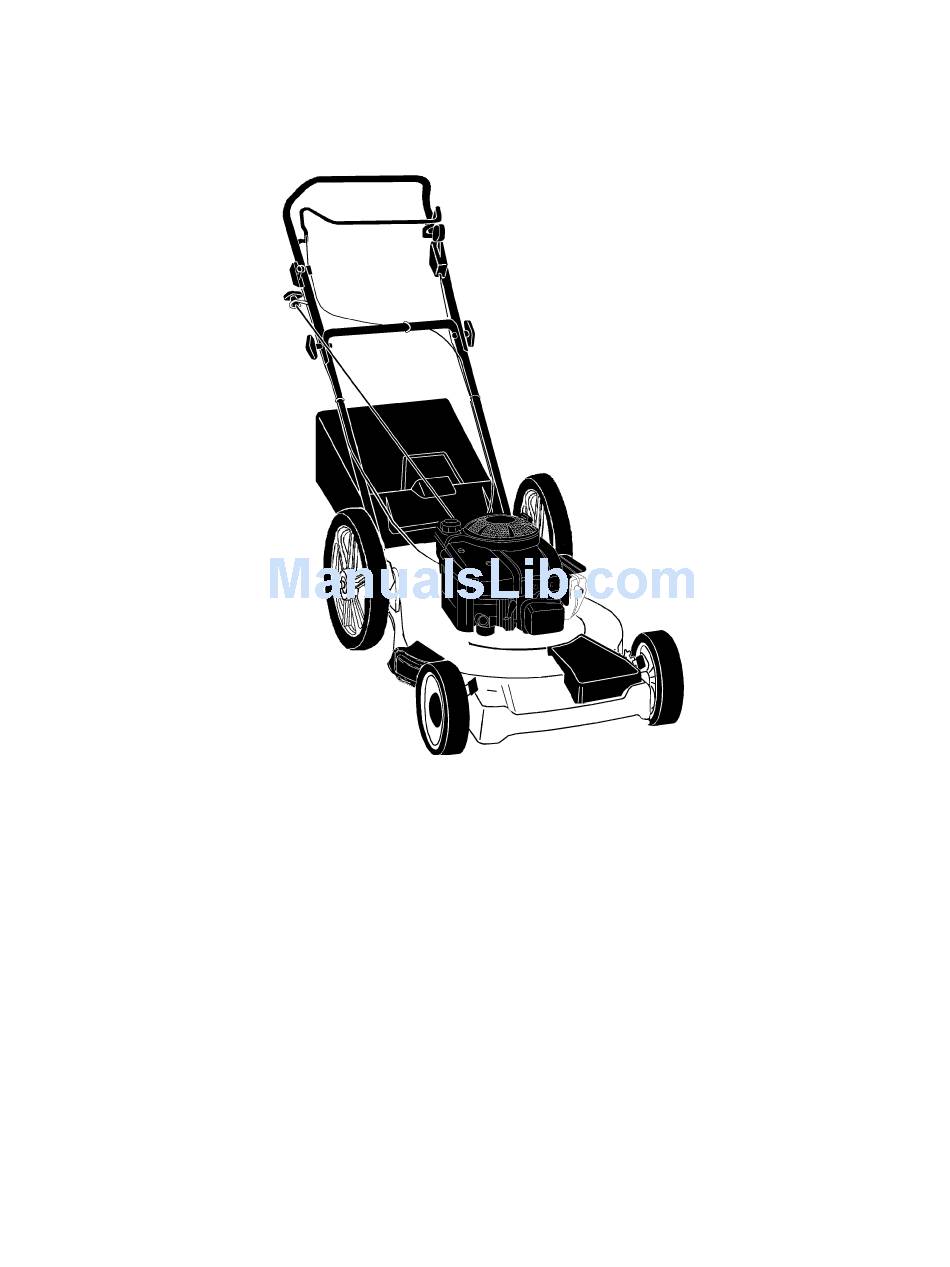

  • Page 1 6522CH Owner’s Manual 532177950 01.10.01 BY Printed in U.S.A.

  • Page 2: Safety Rules

    Safe Operation Practices for Walk-Behind Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I.GENERAL OPERATION • Read, understand, and follow all instructions on the machine and in the manual(s) before starting.

  • Page 3: Table Of Contents

    We have competent, well-trained tech- nicians and the proper tools to service or repair this lawn mower. Please read and retain this manual. The instructions will enable you to assemble and maintain your lawn mower properly. Always observe the “SAFETY RULES”. SERIAL NUMBER ____________________________________...

  • Page 5: Assembly

    NOTE: If vinyl bindings are too stiff, hold them in warm water for a few minutes. If bag gets wet, let it dry before using. 3. Lift the rear door of the lawn mower and place the grass catcher frame side hooks onto the door pivot pins.

  • Page 6: Operation

    Save this manual for future reference. These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand their meaning. CAUTION...
  • Page 7 The operation of any lawn mower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your lawn mower or performing any adjustments or repairs. We recommend wide vision safety mask over spectacles or standard safety glasses available.

  • Page 8: Before Starting Engine

    FOR SIDE DISCHARGING - 1. Rear mulcher plug installed. 2. Side discharge deflector installed. CAUTION: Do not run your lawn mower without rear mulcher plug in place or approved grass catcher in place. Never attempt to operate the lawn mower with the rear door removed or propped open.

  • Page 9: Operation

    • For best results, adjust the lawn mower cutting height so that the lawn mower cuts off only the top one-third of the grass blades (See Fig. 9). If the lawn is overgrown it will be necessary to raise the height of cut to reduce pushing effort and to keep from overloading the engine and leaving clumps of mulched grass.

  • Page 10: Maintenance Schedule

    4 - Charge 48 hours at end of season. GENERAL RECOMMENDATIONS The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain mower as instructed in this manual.

  • Page 11: Lawn Mower

    1. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with spark plug. 2. Turn lawn mower on its side. Make sure air filter and carburetor are up. 3. Use a wood block between blade and mower housing to prevent blade from turning when removing blade bolt.

  • Page 12: Air Filter

    Change the oil after every 25 hours of operation or at least once a year if the lawn mower is not used for 25 hours in one year. Check the crankcase oil level before starting the engine and after each five (5) hours of continuous use.

  • Page 13: Service And Adjustments

    (See Fig. 12) 1. Remove drive cover. Remove belt from gearcase pulley by pushing down on pulley and rolling belt off it. 2. Turn lawn mower on its side with air filter and carburetor 3. Remove blade. 4. Remove debris shield.

  • Page 14: Storage

    30 days or more. LAWN MOWER When lawn mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

  • Page 15: Troubleshooting

    Depress control bar to upper handle before Contact a qualified service center. Replace blade adapter. Move lawn mower to cut grass or to hard surface. Adjust or replace drive control cable. Put belt on pulleys or replace belts if broken.

  • Page 16: Repair Parts - Lawn Mower

    REPAIR PARTS ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)
  • Page 17 REPAIR PARTS ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA) PART DESCRIPTION 532176580 Control Bar 532167163 Upper Handle 532063601 Locknut 532130861 Engine Zone Control Cable 532700417 Throttle Control 532144929 Hex Washer Head Screw 1/4-20 x 2-1/8 532136376 Handle Knob 532170947 Rear Door Kit...
  • Page 18 REPAIR PARTS ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)
  • Page 19 REPAIR PARTS ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA) PART DESCRIPTION 532146323 Drive Control 532751152 Locknut #10-24 532158755 Pan Head Machine Screw 1/4-20 x 2-1/8 532150495 Spring Retainer 532077400 Hubcap 532145212 532088558 Wheel & Tire Assembly 812000058 E-ring 532137054 Pinion...
  • Page 20 REPAIR PARTS ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA) GEAR CASE ASSEMBLY PART NUMBER 532702511 PART DESCRIPTION 817490416 Tapping Screw 1/4-20 x 1-1/4 532140269 Engagement Bracket 532137053 Shifter 532057072 Seal 532048373 Gear Case Halves Kit (Includes Key Nos. 4, and 7)
