Summary of Contents for Toshiba ZL1* Digital Series

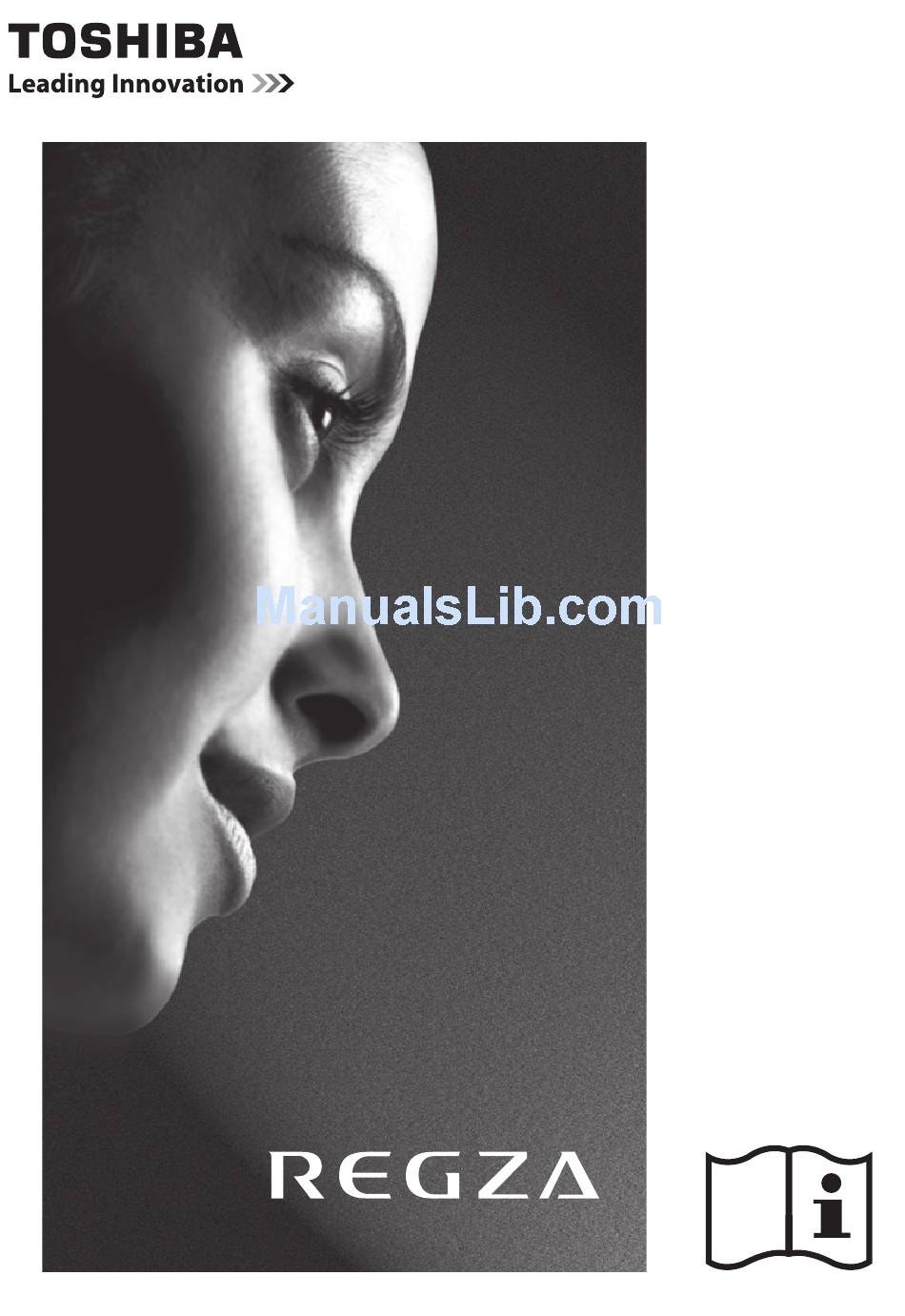

  • Page 1 ZL1* Digital Series...

  • Page 2: Table Of Contents

    Contents CONTROLS AND FEATURES General controls ................33 Quick Menu ................33 INSTALLING YOUR TV Selecting channels ..............33 Safety Precautions ................4 The Time Display – analogue only .........33 Installation and important information ........5 Stereo and Bilingual transmissions .........33 Supplied Accessories ................ 9 Using 3D functions .................34 Speaker / Pedestal Assembly ............10 Using the 3D glasses .............34...
  • Page 3 To open Photo Frame ............77 REGZA-LINK system standby ..........94 Setting the features ...............77 REGZA-LINK system audio control ........95 Other features ...................79 Toshiba PC compatible with REGZA-LINK ....95 Panel Lock .................79 The timers ...................79 TEXT SERVICES Programme Timers – digital only ........79 Text services ..................96...

  • Page 4: Installing Your Tv

    INSTALLING YOUR TV Safety Precautions DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND ‘LIVE’ PARTS. This equipment has been designed and THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE manufactured to meet international safety standards AND THEREFORE SHOULD BE READILY OPERABLE.

  • Page 5: Installation And Important Information

    Any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment; Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal...
  • Page 6 • Viewing in 3D may cause dizziness and/or indisposed while viewing 3D images. disorientation for some viewers. Contact the Toshiba Call Center for repair of your 3D Therefore, to avoid injury do not place your TV near open glasses. stairwells, balconies, or wires.
  • Page 7 INSTALLING YOUR TV • Watching TV while sitting too close to the screen for an Notes on watching the TV extended period of time may cause eye strain. • 3D effect and image quality may vary depending upon The ideal viewing distance should be at least three times content quality and display device capability/ the screen height.
  • Page 8 USB HDD. • Toshiba shall not be liable for damages of any kind • The recording function is not available in all countries. whatsoever (breakdown of the recording device, •...

  • Page 9: Supplied Accessories

    INSTALLING YOUR TV Supplied Accessories For how to assemble the Speaker and Pedestal Stand, refer to “Speaker / Pedestal Assembly” on page 10. Accessories Page Accessories Page Pedestal components Remote Control (CT-90378) Batteries (AAA, IEC R03) x 2 M5 (14mm) x 5 M6 (20mm) x 4 Speaker/Screws M4 (14mm) x 6 3D glasses/Battery charging cable/Pouch*...

  • Page 10: Speaker / Pedestal Assembly

    INSTALLING YOUR TV Speaker / Pedestal Assembly Attach the speaker and pedestal stand. WARNING: To prevent possible electric shock, protect the power cord from being pinched when attaching the pedestal stand. CAUTION: Before beginning pedestal assembly, carefully lay the front of the LCD Panel face down on a flat, cushioned surface such as a quilt or blanket.
  • Page 11 INSTALLING YOUR TV Attach the speaker Attach the pedestal stand Lay the LCD Panel face down on a flat, cushioned Remove the cover (shown in the figure) from the surface such as a blanket. pedestal stand Secure space. Remove. Attach the pedestal stand using the screws Insert the speaker into the TV as shown.
  • Page 12 INSTALLING YOUR TV Fix the pedestal stand in position using the screws Attach the cover that was removed in step 1. Attach. Bundle the connection cables using the cable clamps. Connect the connection cable for the speaker to the SPEAKER terminal on the TV. Press the lock button on the connection plug and insert.

  • Page 13: The Remote Control

    To access Quick Menu compartment and make sure the batteries are inserted the To access the “TOSHIBA PLACES” Top Page proper way. Suitable battery When network is not connected, an error message will be displayed. types for this remote are AAA, IEC R03 1.5V.

  • Page 14: Connecting Your Tv

    CONNECTING YOUR TV Connecting external equipment Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket. USB 1/2 port COMMON INTERFACE LAN port COMPONENT VIDEO/AUDIO INPUT (EXT 2) VIDEO/AUDIO INPUT (EXT 3) DIGITAL AUDIO...

  • Page 15: To Connect The Supplied Usb Hdd

    CONNECTING YOUR TV NOTE: To connect the supplied USB HDD • To disconnect a USB HDD from the TV, follow the procedures for “To disconnect a USB HDD” section Mount the USB HDD Holder on the back of the TV by (page 64).

  • Page 16: Connecting An Hdmi® Or Dvi Device To The Hdmi Input

    CONNECTING YOUR TV Connecting an HDMI® or DVI To connect a DVI device device to the HDMI input Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI 3 terminal and audio cables to the PC/ The HDMI input on your television receives digital HDMI 3 (AUDIO) socket (see illustration).

  • Page 17: Regza-Link Connection

    HDMI standard. • This function is available when one PC and one AV amplifier • This feature is limited to models incorporating Toshiba’s are connected separately. However, it may not operate REGZA-LINK. However, Toshiba is not liable for those properly if the PC is connected via the AV amplifier.

  • Page 18: Connecting A Computer

    CONNECTING YOUR TV Connecting a computer • When PC input mode is selected, some of the television’s features will be unavailable e.g. Colour System in the Setup/System Setup menu. With either an RGB/PC or an HDMI connection, you • Some PC models may output unique signals that the can watch your computer’s display on the television may be unable to detect (see page 103).

  • Page 19: Connecting A Home Network

    To connect the TV to a home network with an internet connection - Wireless The LAN port allows your Toshiba TV to connect to Please refer to “Wireless Setup” section on page 51. your home network. You can use this revolutionary...

  • Page 20: Controls And Input Connections

    NOTE: Putting the television into standby mode will reduce record/playback TV programmes. energy consumption, but will still draw some power. NOTE: The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected Using the menu system equipment.

  • Page 21: Menu Structure

    Movie Device Select Music Device Select Media Player Setup Media Player Setup Menu Connected TV Toshiba Places Jump to Toshiba Places YouTube Jump to YouTube Function Jump to Photo Frame Photo Frame On Timer Menu On Timer Sleep Timer Menu...

  • Page 22: Setting Up Your Tv

    SETTING UP YOUR TV Startup Application Press OK, and the AutoView screen will appear. Press to select Yes or No. Before switching on the television, set your decoder and media recorder, if applicable, to AutoView AutoView mode automatically adjusts picture settings Standby.

  • Page 23: Ant/Cable/Satellite (If Available)

    SETTING UP YOUR TV Press to highlight Store Position and press Press to view the DTV (digital channel) or ATV OK to store the dish position. Repeat steps 13 and 14 (analogue channel) lists. for the next satellite as necessary. Press to move through the list to select a If your satellite dish is not movable, the Positioning...

  • Page 24: Satellite Settings

    SETTING UP YOUR TV Satellite Settings When Ant/Cable/Satellite is set to Cable, the following setting options will be provided in the Auto From the System Setup menu, you can add the satellites that you Tuning screen. wish to tune and configure detailed settings for each one individually.
  • Page 25 SETTING UP YOUR TV To edit the satellite settings: To delete a transponder: In the Satellite Settings menu, press to highlight In the Transponder Settings menu, press Switch Type. highlight the line you want to delete. Press to select None, ToneBurst, DiSEqC Press the RED button.

  • Page 26: Auto Tuning

    SETTING UP YOUR TV To select the LNB Settings: For DTV/ATV Tuning: A screen will appear warning that previous In the Satellite Settings menu, press to select programmes and settings will be deleted. the required satellite line and press OK. Auto Tuning Press to highlight LNB and press the GREEN...

  • Page 27: Atv Manual Tuning

    SETTING UP YOUR TV ATV Manual Tuning In the System Setup menu, press to select ATV Manual Tuning and press OK. Tuning System Setup Menu Language English The television can be tuned-in manually using ATV Manual Country Germany Tuning. For example, you might use the feature if the television Ant/Cable/Satellite cannot be connected to a media recorder/decoder with a SCART Satellite Settings...

  • Page 28: Skip

    SETTING UP YOUR TV Each signal will show on the television. If it is not your to turn Skip on. media recorder, press again to restart the Press OK. search. on the screen indicates a skipped position. When your media recorder signal is found, press ATV Manual Tuning move along to Station.

  • Page 29: Dtv Manual Tuning

    SETTING UP YOUR TV DTV Manual Tuning Manual Tuning for DVB-C When Ant/Cable/Satellite is set to Cable, DTV Manual NOTE: The content of this menu varies depending on the DTV Tuning items are as follows: input (Antenna, Cable, or Satellite) that is currently selected. Frequency –...

  • Page 30: Dtv Settings

    SETTING UP YOUR TV DTV Settings Move — Press the GREEN button to activate the Move feature. Press the buttons to select the channel you wish to move and press OK to check. If you wish to move multiple channels at once, select Channels (Antenna/Cable) another channel and check in the same way.

  • Page 31: Channels (Satellite)

    SETTING UP YOUR TV Group — Press C or to select All or By Satellite. Channels (Satellite) Sorting Type — Press C or to set the sorting type. Select DTV Settings from the System Setup menu A-Z Sort Station name order (A to Z) and press OK.

  • Page 32: Location Setting

    SETTING UP YOUR TV Location setting You can select either Home or Store mode. Home is recommended for normal home use. Select Store when using the television for displaying in a shop, etc. Select Location from the System Setup menu. Press to select Home or Store.

  • Page 33: Controls And Features

    CONTROLS AND FEATURES General controls Mode Quick menu item Description Photo Frame Picture See page 43. (Full Screen) Picture Size See page 41. Quick Menu 3D Settings See page 36. Quick Menu helps you access some options quickly, such as Personal Mode See page 92.

  • Page 34: Using 3D Functions

    “When using the 3D glasses” section on page 6. protective films from the lenses. Viewing 3D programming requires the following: • TOSHIBA 3D Glasses FPT-AG02G (supplied) Turn the 3D glasses on with the power switch. • Compatible 3D playback device or 3D source •...

  • Page 35: Viewing 3D Images

    CONTROLS AND FEATURES 3D format select: Viewing 3D images If a right and left images are same in Native mode, select SBS. Incoming video signals can either be in 2D or 3D format. A 2D If a top and bottom images are same in Native mode, select signal can be viewed in either 2D or 3D, and 3D can be viewed in TB.
  • Page 36 CONTROLS AND FEATURES To select 3D format from the Quick menu in 3D To select 2D format from the Quick menu in 2D mode: mode: Press QUICK to display the Quick Menu. Press QUICK to display the Quick Menu. Press to select 3D Settings and press OK.

  • Page 37: Setting The Auto Start Mode

    CONTROLS AND FEATURES To change or delete your PIN code: Setting the auto start mode In the Preferences menu, press to select 3D Controls what the TV does when it detects a 3D signal. Setup and press OK. Press MENU / to highlight Setup icon.

  • Page 38: Setting 3D Lock

    CONTROLS AND FEATURES Setting 3D Lock Displaying 3D Important Info When this feature is set to On, you must enter 3D PIN code for In the Preferences menu, press to select 3D changing display mode. Setup and press OK. In the Preferences menu, press to select 3D Press to select 3D Important Info and press...

  • Page 39: Sound Controls

    CONTROLS AND FEATURES Sound controls Press to select the frequency range you want to adjust from the equalizer window and press to adjust the level. Volume controls and sound mute Equaliser Volume Press to adjust the volume. Sound Mute Press once to turn the sound off and again to cancel.

  • Page 40: Dolby Volume

    CONTROLS AND FEATURES • When watching a DTV 5.1ch programme, this feature is not Dolby Volume® available. This feature provides a consistent sound volume regardless of programmes, channels or input sources. Headphone Settings In the Sound menu, press to select Dolby This setting is used to set the sound output when headphones are Volume.

  • Page 41: Widescreen Viewing

    CONTROLS AND FEATURES Widescreen viewing Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of WIDE widescreen formats (16:9, 14:9, 20:9 etc.) black bars may be visible on the...
  • Page 42 CONTROLS AND FEATURES This setting will show the picture NATIVE without overscan, i.e. WYSIWYG. This setting will show the picture without overscan, i.e. WYSIWYG. PC NORMAL This option is only available when watching a PC signal source via HDMI or PC terminal. This setting will show the picture without overscan or side panels.

  • Page 43: Picture Controls

    CONTROLS AND FEATURES Picture controls Picture preferences You can customize current picture mode settings as desired. For Most of the picture controls and functions are example, while selecting “Dynamic”, if you change the following available in both digital and analogue modes. items, such as Backlight, Contrast, Brightness, Colour, Tint, PLEASE NOTE: Features not available will be grayed Sharpness and the Advanced Picture Settings items, your...

  • Page 44: Base Colour Adjustment

    CONTROLS AND FEATURES Base Colour Adjustment Auto Brightness Sensor Settings The Base Colour Adjustment feature allows the adjustment of When the Auto Brightness Sensor is activated, it will individual colours to suit personal preference. This can be useful automatically optimise the backlighting levels to suit ambient when using an external source.

  • Page 45: Peak Brightness Adjustment

    CONTROLS AND FEATURES Peak Brightness Adjustment DNR – Digital Noise Reduction When LED Backlight Control is set to On, you can adjust the DNR allows you to “soften” the screen representation of a weak brightness of the white areas. signal to reduce the noise effect. In the Advanced Picture Settings menu, press Select DNR from the Noise Reduction menu.

  • Page 46: Resetting The Advanced Picture Settings

    CONTROLS AND FEATURES Colour Decoding Resetting the advanced picture settings If you view DVDs with this TV, the Colour Decoding option This feature allows you to reset the current Advanced Picture may be set to ensure the colourimetry reproduction. Settings to the default values. NOTE: The modes excluding Auto (BT601 and BT709) are to In the Advanced Picture Settings menu, press convert an irregular signal output from the DVD etc.
  • Page 47 CONTROLS AND FEATURES Colour Calibration Connect the USB colour analyzer to the USB 1 or USB 2 port. The aim of Colour Calibration is to measure and/or adjust the colour response (White Balance) of your LCD panel. Colour Calibration is used by various fields, such as gaming, Place the probe of the USB colour analyzer over the photography, engineering, medical and more.

  • Page 48: Control Visualization

    CONTROLS AND FEATURES Control Visualization 4:3 Stretch This feature displays the brightness histogram and control curve When 4:3 Stretch is activated, the size switching system of the current video signal. changes 4:3 programmes into full screen picture. In the Picture menu, press to select Control In the Preferences menu, press to select...

  • Page 49: Picture Still

    CONTROLS AND FEATURES Picture still This feature is used to hold a still image on the screen. Press to hold an image on the screen, and press again to cancel. HDMI Information Display When the HDMI Information Display feature is On and you are watching an HDMI input source, pressing the button displays the HDMI signal information banner.

  • Page 50: Wireless Lan Information

    Ireland Turkey recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations • If this device is going to be operated in the frequency range reflect the consensus of the scientific community and result of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.

  • Page 51: Setting Up The Network

    CONTROLS AND FEATURES Setting up the Network Easy Setup using PBC (Push Button Configuration) In the Preferences menu, press to select You can select the Network Type. Network Setup and press OK. Press MENU / to highlight Setup icon. Press to select Wireless Setup and press OK.
  • Page 52 CONTROLS AND FEATURES To cancel searching for the AP: Press to select Authentication and press Press BACK while searching for the AP. A message will to select Open System, Shared Key, WPA-PSK or appear; then, press C or c to select Yes and press WPA2-PSK.

  • Page 53: Advanced Network Setup

    CONTROLS AND FEATURES Wireless Information NOTE: Even if an AP for IEEE 802.11n is used when Encryption is set to WEP or TKIP, the Speed value might be low. It is The settings configured in Wireless Setup can be confirmed. recommended that Encryption be changed to AES (see “Manual Setup”...

  • Page 54: Dns Setup

    CONTROLS AND FEATURES DNS Setup Highlight Auto Setup and press to select On. IP Address Setup NOTE: When the DHCP function of the router connected to Auto Setup this TV is Off, set Auto Setup to Off, and manually set the DNS address(es).

  • Page 55: Network Connection Test

    CONTROLS AND FEATURES Using the software keyboard MAC Address You can view the fixed MAC address for the TV. You can enter text by using the Software Keyboard. In the Preferences menu, press to select The Software Keyboard window will appear when Network Setup and press OK.

  • Page 56: Network Device Setup

    (see page 55). The maximum number of Confirm the MAC address of the DMC and set it. characters is 16. NOTE: Toshiba does not guarantee normal operation with all Maximum Volume Setup connected devices. This feature allows you to set the maximum volume of the TV when it receives volume operation commands from a DMC.

  • Page 57: Power Control Mode

    CONTROLS AND FEATURES Using the USB HDD Function Power Control Mode When the TV is connected to the home network via Wireless LAN, The USB HDD function can be used to record and Wake-on-LAN can be received from an external device view digital broadcast programmes.

  • Page 58: To Record Dtv Programmes (One Touch Recording)

    CONTROLS AND FEATURES To record DTV programmes Press OK. The Set Timer menu will appear. (One Touch Recording) 10:50 Tue, 26 Apr Set Timer The Daily Politics You can easily record the programme currently being viewed. 2 CABC Channel 11:30 - 12:30 Tue, 26 Apr Press the ●...
  • Page 59 CONTROLS AND FEATURES To search for and schedule a programme you want Press OK. The Set Timer menu will appear. to record using Genre Search Set Timer 10:50 Tue, 26 Apr In the Guide screen, press QUICK. The Daily Politics 2 CABC Channel 11:30 - 12:30 Tue, 26 Apr Press...
  • Page 60 CONTROLS AND FEATURES To programme the timer Protect: Select this function when you want to protect a Press MENU / to highlight TV recorded programme. When On is selected, the Programmed / Programme Timers icons and press programme will be protected. You can protect and unprotect recorded programmes afterwards.

  • Page 61: To Check, Edit Or Delete Scheduling Information

    CONTROLS AND FEATURES To delete a schedule Press to highlight Timer Type and press to select Recording. Press on the Programme Timer screen to select the title whose schedule you want to delete. Press to highlight Recording Device and press to select the connected USB HDD.

  • Page 62: Operations From The Library Screen

    CONTROLS AND FEATURES Press to select a day tab or Personal Mode tab. To protect or unprotect a recorded programme Protecting a programme prevents it from being accidentally NOTE: If no titles have been registered to Personal deleted. Mode, Personal Grouping will be grayed out. Select the title of the programme you want to protect and press the GREEN button.

  • Page 63: Other Useful Functions (Time Shift Recording)

    CONTROLS AND FEATURES To register a recorded title to Personal Mode Recording Setup Select the title you want to register to Personal You can set your preferences for One touch Recording or for Mode. scheduling recording. To set the recording time for One Touch Recording Press the QUICK button to display the Personal Mode registration menu.

  • Page 64: To Disconnect A Usb Hdd

    CONTROLS AND FEATURES Setting USB HDD Energy-Saving Mode To register a USB HDD In the Recording Setup screen, press to select Press OK on the Device List screen. Recording Devices and press OK. Press to select Yes in the confirmation window that will appear and press OK.

  • Page 65: To Confirm/Delete Recording Information

    CONTROLS AND FEATURES To delete Recording Information To confirm/delete Recording Information In the Recording Information screen, press to select the Recording Information you want to If programmed recording is not performed correctly or some delete and press OK. other error occurs, you can check the error content using Recording Information.

  • Page 66: Using Toshiba Places

    Third party internet services may To close YouTube: change or be discontinued or restricted at any time. Toshiba makes no warranties, representations, or assurances about Press EXIT. the content, availability or functionality of third-party content or services.

  • Page 67: Using The Function Menu

    CONTROLS AND FEATURES To use the Drag Mode: Using the Function Menu Press to select Pointer: ON and press OK. The Function Menu provides easy access to functions that are commonly used. Press the BLUE button. Press the BLUE button while displaying YouTube. The Function menu window will appear.
  • Page 68 CONTROLS AND FEATURES If you select Advanced Settings: Item Settings BbC c Press to select the setting items, and press Security When jumping from a protected page to an OK. A check will appear in the box. To remove the unprotected page, the message is displayed check, press OK again.

  • Page 69: Using Hybrid Tv Standard (If Available)

    • A USB hub can not be used. File system: FAT16 and FAT32 Maximum memory size: Unlimited DLNA CERTIFIED™ Server: Your PC (for example) You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.

  • Page 70: Basic Operation

    CONTROLS AND FEATURES Manual Start: Basic operation Insert USB device into the USB socket on the left side Using Media Player with USB of the TV. When Auto Start is enabled, you will be asked if you want to start the Media Player whenever a USB device Press MENU / to highlight Media Player icon.

  • Page 71: Viewing Photo Files (On A Dlna Certified™ Server Or Usb Device)

    CONTROLS AND FEATURES To display the device information: Viewing photo files (on a DLNA CERTIFIED™ Server or USB device) Press QUICK to open the Quick Menu in list mode or Multi View mode. There are three types of viewing modes. Multi View Press to select Device Information.
  • Page 72 CONTROLS AND FEATURES To zoom in/out photos Press to view the next photo. Press to view the previous photo. During the Single View mode or Slide Show mode, the zoom function can be used. Press to rotate the image 90° clockwise. Press RED button: x1 x16 zoom rotate the image 90°...

  • Page 73: Viewing Movie Files (On A Dlna Certified™ Server Or Usb Device)

    CONTROLS AND FEATURES To close the Photo Viewer During playback: • Press to pause. Press EXIT. The television will return to the last viewed You can move to the desired replay position by pressing channel or external input. during PAUSE. PAUSE or operations during PAUSE may not be available File Compatibility depending on the contents, DMC or DMS.
  • Page 74 CONTROLS AND FEATURES ® To sort the folders and files To register your TV to a DivX account This TV allows you to play back files purchased or rented from Press QUICK to open the Quick Menu in list mode. ®...

  • Page 75: Playing Music Files (On A Dlna Certified™ Server Or Usb Device)

    CONTROLS AND FEATURES To playback DivX Plus HD content: Playing music files (on a DLNA CERTIFIED™ Server or USB device) • To play in fast reverse or fast forward directions, press during playback. Each time you press the You can listen to music from a list of available files. the playback speed will change.
  • Page 76 CONTROLS AND FEATURES To set the repeat mode: To display the device information Press QUICK to open the Quick Menu in list mode. Press QUICK to open the Quick Menu in list mode. Press to select Repeat. Press to select Device Information and press Press to select Off, All or 1.

  • Page 77: Using The Photo Frame Feature

    CONTROLS AND FEATURES Using the Photo Frame feature Press to select Start and press OK to open Photo Frame. You can use the TV screen as a digital photo frame. One image (pre-installed or user-installed) can be displayed. Date info can also be superimposed, if desired.
  • Page 78 CONTROLS AND FEATURES Settings B b C c Press to select the photo you want to copy from the USB storage device or DLNA CERTIFIED™ Press to select Settings and press OK. server to the TV’s flash memory, and then press OK. Press to select Clock, Position or Auto Power PHOTO...

  • Page 79: Other Features

    CONTROLS AND FEATURES Other features The timers Panel Lock Programme Timers – digital only Panel Lock disables the buttons on the television. All buttons on This feature will set the television to go to a specific channel at a the remote control can still be used. certain time.

  • Page 80: On Timer

    CONTROLS AND FEATURES On Timer Sleep Timer The feature allows you to set the television to turn on The television can be set to turn itself Off after a certain length of automatically to a preset channel at a certain time of day or after time.

  • Page 81: Energy Saving Settings

    CONTROLS AND FEATURES Energy Saving Settings Digital on-screen information and Programme Guide Automatic Power Down When viewing in digital mode, the on-screen information and programme guide provide access The TV will automatically turn itself off (standby) after 4 hours, if you do not operate the TV either from the remote control or the to programme details for all available channels.

  • Page 82: Guide

    CONTROLS AND FEATURES Guide The details of the programme will already have been added to the timer. Highlight Set Timer and press OK to save. Select the on-screen guide by pressing GUIDE, and the Guide screen will appear highlighting details of To indicate that a Recording Timer has been set, a the channel and programme currently being viewed.

  • Page 83: Genre Selection/Searching

    CONTROLS AND FEATURES Digital settings – parental control Genre selection/searching From the Guide screen, you can use the genre selection and In order to prevent viewing of unsuitable films and search features. programmes, channels and menus can be locked in digital mode. These can then only be accessed In the Guide screen, press QUICK.

  • Page 84: Parental Setup

    CONTROLS AND FEATURES Digital settings – Channel Parental Setup Options The Parental Control feature allows you to block programmes according to their rating levels. If a PIN has been set, you will need to enter it before adjusting the level. Selecting favourite channels In the DTV Settings menu, press to select...

  • Page 85: Skip Channels

    CONTROLS AND FEATURES Digital settings – other settings Skip channels This feature allows you to set channels that will be skipped when or P are used to tune. Subtitles Select the channel you want to skip in your channel In digital mode, this feature will show subtitles on the screen in list.

  • Page 86: Common Interface

    CONTROLS AND FEATURES Software Upgrade and Licences Common Interface The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and Auto Upgrade card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed.

  • Page 87: Network Upgrade

    CONTROLS AND FEATURES System Information and Reset TV Network Upgrade TOSHIBA may offer upgrades for the TV’s software in the future. The TV’s software is upgraded via the Network. System Information Before downloading software: This feature can be used to check the version of software Configure your TV to connect to the Internet.

  • Page 88: Pc Settings

    CONTROLS AND FEATURES PC Settings Sampling Clock Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen. Horizontal and Vertical Position In the Display Settings menu, press to select Connect the PC (as shown in the “Connecting a computer” PC Settings and press OK.

  • Page 89: Input Selection And Av Connections

    CONTROLS AND FEATURES Input selection and AV External input skip connections This feature is designed to make input selection more convenient by allowing you to skip unused inputs. See page 14 for a detailed image showing Press MENU / to highlight Setup / recommended connections.

  • Page 90: Labeling Video Input Sources

    CONTROLS AND FEATURES Labeling video input sources PC Audio These input labels are shown in the input selector. You can label In order to receive sound from a connected PC, plug the audio video inputs according to the devices you have connected to the cable into the back of the television (as shown in the “Connecting a computer”...

  • Page 91: Hdmi Settings

    CONTROLS AND FEATURES HDMI Settings Press to select Digital Audio Output. Some early HDMI equipment may not work properly with your AV Connection HDMI TV. Please try setting the Enable Content Type and Input Labeling INSTAPORT™ options to Off. Adjusting these settings should PC/HDMI 3 Audio allow your early HDMI source to operate properly with your Side Shared Audio...

  • Page 92: Using Personal Tv Mode

    CONTROLS AND FEATURES Using Personal TV Mode Edit Name You can edit the name of your Personal Mode. You can customize some TV functions as desired Press to select Edit Name and press OK. Edit the desired name by using the software keyboard (see and those settings can be saved in one of 4 page 55).

  • Page 93: Using Regza-Link

    When Auto Standby is enabled, the television, when switched This is a new feature that uses CEC technology and off, will automatically switch off (standby mode) all connected allows you to control Toshiba REGZA-LINK REGZA-LINK equipment. compatible devices from the television remote control via HDMI connection (page 17).

  • Page 94: Regza-Link Input Source Selection

    CONTROLS AND FEATURES REGZA-LINK input source selection REGZA-LINK Device Control If a REGZA-LINK device with HDMI switching capability (e.g. AV With the REGZA-LINK mode on your television’s remote amplifier) is connected to the HDMI input, you can select another control, you can control the connected REGZA-LINK device REGZA-LINK device that is connected to the master HDMI device you are watching.

  • Page 95: Regza-Link System Audio Control

    Turn the television off and on again to output the sound from the TV Speakers. • This feature may not work if the AV amplifier is operated. Toshiba PC compatible with REGZA-LINK This feature automatically adjusts the suitable widescreen formats and picture preferences when connected to a Toshiba PC compatible with REGZA-LINK.

  • Page 96: Text Services

    List will save your four favourite pages. For further information on your particular text system(s), see the broadcast text index page or consult your local Toshiba Selecting modes dealer. The text character set will be automatically chosen by the language setting in the Setup menu.

  • Page 97: Control Buttons

    TEXT SERVICES Control buttons Below is a guide to the functions of the remote control text buttons. k To display the index/initial page: Press to access the index/initial page. The one displayed is dependant on the broadcaster. TEXT To display a page of text: Press TEXT to display text.

  • Page 98: Problem Solving

    PROBLEM SOLVING Questions and Answers What else can cause a poor picture? Below are the answers to some of the most Interference or a weak signal. Try a different common queries. television station. Manual Fine Tuning may help. Why is there no sound or picture? Select the ATV Manual Tuning menu.
  • Page 99 PROBLEM SOLVING What is DVB-T? Why is a page number visible at the top of the screen but no text? Digital Video Broadcast via an aerial/antenna. Text has been selected but Teletext information is currently unavailable on the current source. What is DVB-C? Why are the colours wrong when an NTSC source is played?

  • Page 100: Other Problems

    PROBLEM SOLVING Other problems Why are not 3D images displayed? If your TV’s problem is not addressed in this Questions and Answers section or the recommended solution has not Ensure that there is no object blocking the infrared worked, do one of the following: signals in the infrared reception part of television and Turn off your TV.

  • Page 101: Information

    INFORMATION License Information • Manufactured under license from Dolby • DLNA®, DLNA® Certification Logo and DLNA CERTIFIED™ are Laboratories. registered trademarks, service marks, or certification marks of the Digital Living Network Alliance. Dolby and the double-D symbol are trademarks of Dolby Laboratories. •...
  • Page 102 INFORMATION Disposal… The following information is only for EU-member states: Disposal of products The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

  • Page 103: Information

    INFORMATION Information Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket. Signal information for Mini D-sub 15 pin connector Pin No. Signal name Pin No. Signal name Pin No.
  • Page 104 INFORMATION Acceptable video or PC signals through the HDMI terminals The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur;...

  • Page 105: Media Player Supported Format

    INFORMATION Media Player Supported Format Media Media File Video/Audio codec USB DMS Note Player Format Extension Photo JPEG .jpg JPEG <USB> .jpeg Data compatibility: JPEG Exif ver 2.2 Maximum viewable resolution: 4096 x 4096 (HW decode) 16384 x 16384 (SW decode) Maximum photo size: 9MB Maximum number of files: 2000 / folder <DMS>...
  • Page 106 INFORMATION 3D Support Format (HDMI) Resolution Aspect ratio V.Fraquency H.Fraquency Pixel Clock Frequency 3D Structure 720 × 480p 16:9 59.940/60.000Hz 31.469/31.500kHz 27.000/27.027MHz Side by Side (Full) Side by Side (Half) Top and Bottom 720 × 576p 16:9 50.000Hz 31.250kHz 27.000MHz Side by Side (Full) Side by Side (Half) Top and Bottom...
  • Page 107 INFORMATION 3D Support Format (DTV) Video Format Aspect ratio V.Fraquency 3D Structure 480i, 480p 16:9 59.940/60.000Hz Side by Side (Half) Top and Bottom 576i, 576p 16:9 50.000Hz Side by Side (Half) Top and Bottom 720p 16:9 59.940/60.000Hz Side by Side (Half) Top and Bottom 50.000Hz Side by Side (Half)

  • Page 108: Specifications And Accessories

    Main: 13W + 13W (at 10% distortion) Tweeter: 7W + 7W © TOSHIBA Television Central Europe Sp. z o.o. All rights reserved. Reproduction in whole or part without written permission is strictly prohibited. TOSHIBA Television Central Europe Sp. z o.o.
