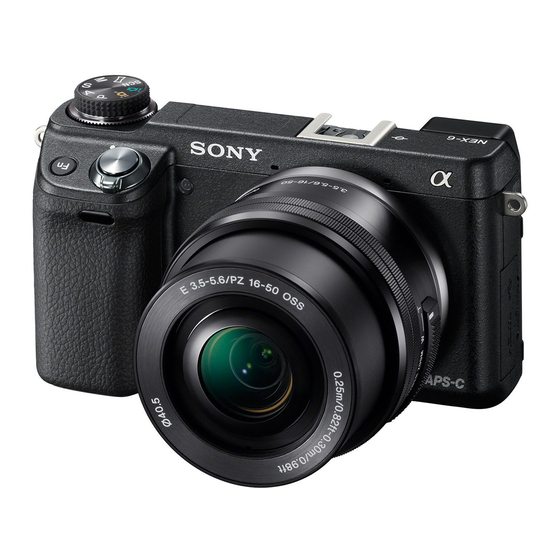

Sony Alpha NEX-6 Instruction Manual

E-mount interchangeable lens digital camera
Hide thumbs Also See for Alpha NEX-6:
Table of Contents

Advertisement

Quick Links

See also: Handbook , Instruction Manual
Interchangeable Lens

Digital Camera

Instruction Manual
E-mount
NEX-6
4-437-011-11(1)
Preparing the camera
Mastering the basic
operation
Using the recording
functions
Using the playback
functions
Checking the functions
available
Importing images to the
computer
Adding functions to the
camera
Connecting the camera to
a network
Others

Advertisement

Table of Contents
loading

Related Manuals for Sony Alpha NEX-6

Summary of Contents for Sony Alpha NEX-6

  • Page 1: Digital Camera

    Preparing the camera Digital Camera Mastering the basic operation Using the recording functions Instruction Manual Using the playback functions E-mount Checking the functions available Importing images to the computer Adding functions to the camera Connecting the camera to a network Others NEX-6...

  • Page 2: Important Safety Instructions

    English Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. NEX-6 Serial No. ______________________________ Model No.
  • Page 3 • Do not incinerate or dispose of in fire. • Do not handle damaged or leaking lithium ion batteries. • Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
  • Page 4 UL is an internationally recognized safety organization. The UL Mark on the product means it has been UL Listed. If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) The number below is for the FCC related matters only.

  • Page 5: Regulatory Information

    Regulatory Information Declaration of Conformity Trade Name: SONY Model No.: NEX-6 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the...

  • Page 6: For Customers In Canada

    For Customers in Europe Notice for the customers in the countries applying EU Directives The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
  • Page 7 If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
  • Page 8 For Customers in xxxx #Item5190 (Complies with IDA Standards DB00353)## Note All Wireless function designated for the NEX-6 Interchangeable Lens Digital Camera are applicable in Australia, New Zealand, Korea, Taiwan, Hong Kong, Singapore, India, the United Arab Emirates and the Philippines.

  • Page 9: Table Of Contents

    Table of contents Preparing the camera Checking the supplied items ..........11 Identifying parts ..............12 Charging the battery pack ..........16 Attaching/removing the lens ..........21 Inserting a memory card (sold separately) .......23 Adjusting the viewfinder (diopter adjustment) ....25 Attaching/removing the eyepiece cup ......25 Setting the date and time ..........26 Mastering the basic operation Shooting still images ............28...
  • Page 10 This manual covers several models supplied with different lenses. The model name varies depending on the supplied lens. The available model varies depending on the countries/regions. Model name Lens NEX-6 Not supplied NEX-6L E16 – 50 mm NEX-6Y E55 – 210 mm and E16 – 50 mm...

  • Page 11: Checking The Supplied Items

    – α Handbook supplied with your camera. Use the • Instruction Manual (This manual) appropriate one that matches your country/region. • Rechargeable battery pack NEX-6 NP-FW50 (1) • Body cap (1) (attached to the camera) NEX-6L • Micro USB cable (1) •...

  • Page 12: Identifying Parts

    M Image sensor N Lens contacts For details on compatible accessories of the Multi Interface Shoe, visit the Sony web site in your area, or consult your Sony dealer or local authorized Sony service facility. Accessories for the A Flash (48) Accessory Shoe can be attched.
  • Page 13 (Playback) button (30) L Mode dial (43) M Control dial (34) N MOVIE button (29) O AEL button (50) P Soft key A (34) Q Control wheel (33) R Soft key C (34) S Soft key B (34) T Diopter-adjustment dial (25) Image sensor position mark B Viewfinder (25) C Eyepiece cup (25)
  • Page 14 F Tripod socket hall • Use a tripod with a screw length of less than 5.5 mm (7/32 inch). You will be unable to firmly secure the camera to tripods using screws longer than 5.5 mm (7/32 inch), and may damage the camera.
  • Page 15 E55 – 210 mm F4.5-6.3 OSS (supplied with NEX-6Y) A Focusing ring B Zooming ring C Focal-length scale D Focal-length index E Lens contacts F Mounting index Do not touch this part directly.

  • Page 16: Charging The Battery Pack

    Charging the battery pack When using the camera for the first time, be sure to charge the NP-FW50 “InfoLITHIUM” battery pack (supplied). The “InfoLITHIUM” battery pack can be charged even when it has not been fully depleted. The battery pack can also be used when it has not been fully charged.
  • Page 17 Close the cover. Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied). Connect the AC Adaptor to the wall outlet (wall socket). Charge lamp Power cord Lit: Charging (Mains lead) Off: Charging finished Flashing: Charging error or The charge lamp lights orange, and charging temporarily stopped charging starts.

  • Page 18: Charging Time

    • When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket). • Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied). Charging time The charging time is approximately 280 min. using the AC Adaptor (supplied).

  • Page 19: Charging By Connecting To A Computer

    Charging by connecting to a computer The battery pack can be charged by connecting the camera to a computer using a micro USB cable. Notes • Note the following points when charging via a computer: – If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases.

  • Page 20: Removing The Battery Pack

    Checking the remaining battery level Check the level with the following indicators and percent figures displayed on the LCD screen. “Battery exhausted.” Battery level You cannot High shoot any more image. Notes • The displayed battery power level may not be correct under certain circumstances. What is an “InfoLITHIUM”...

  • Page 21: Attaching/Removing The Lens

    Attaching/removing the lens Set the power switch of the camera to OFF before you attach or remove the lens. If the cap or the packaging lid is attached, remove it from the camera or the lens. • Quickly change the lens somewhere away from dusty locations so as to keep dust or debris from getting inside the camera.

  • Page 22: Removing The Lens

    Removing the lens Press the lens release button all the way in and turn the lens counterclockwise until it stops. Lens release button Notes • If dust or debris gets inside the camera while you are changing the lens and adheres to the surface of the image sensor (the part that converts the light source to a digital signal), it may appear as dark spots on the image, depending on the shooting environment.

  • Page 23: Inserting A Memory Card (Sold Separately)

    Inserting a memory card (sold separately) Open the cover. Insert a memory card. • Insert the memory card until it clicks as illustrated. Check on the direction of the notched corner. Close the cover.

  • Page 24: Memory Cards That You Can Use

    Memory cards that you can use You can use following types of memory cards with this camera. However, proper operation cannot be guaranteed for all types of the memory cards. Usable memory card Still Movie Term in this image manual “Memory Stick PRO Duo”...

  • Page 25: Adjusting The Viewfinder (Diopter Adjustment)

    Adjusting the viewfinder (diopter adjustment) Adjust the viewfinder so that you can see the screen displays clearly. Turn the diopter-adjustment dial. Attaching/removing the eyepiece cup It is recommended that you attach the eyepiece cup when you intend to use the viewfinder.

  • Page 26: Setting The Date And Time

    Setting the date and time When you turn on the camera for the first time, the screen to set date and time appears. Set the power switch to ON to turn on the camera. The screen to set date and time appears.

  • Page 27: Clock Setting

    Press the left or right of the control wheel to select each item, and press the top or bottom, or turn it to select the numeric value. Daylight Svg.: Turns on or off the daytime saving time setting. Date Format: Selects the format to display date.

  • Page 28: Mastering The Basic Operation

    Mastering the basic operation Shooting still images In the (Intelligent Auto) mode, the camera analyzes the subject, and allows you to shoot with appropriate settings. Set the mode dial to (Intelligent Auto). Point the camera to the subject. When the camera recognizes the scene, the Scene Recognition icon and guide appear on the LCD screen: (Night Scene),...

  • Page 29: Recording Movies

    Press the shutter button halfway down to focus. When the focus is confirmed, beeps sound and z lights up. Focus indicator Press the shutter button fully down. When the camera detects and shoots a face with [Auto Port. Framing] set to [Auto], the captured image is automatically trimmed into a suitable composition.

  • Page 30: Playing Back Images

    Notes • The sound of the camera and the lens in operation might be recorded while recording a movie. You can disable the sound recording by selecting MENU t [Setup] t [Movie Audio Rec] t [Off] (page 60). • The continuous recording time of a movie depends on the ambient temperature or the condition of the camera.

  • Page 31: Playing Back Movies

    Playing back movies Select MENU t [Playback] t [Still/Movie Select] t [Folder View(MP4)] or [AVCHD View]. • To return to still image playback, select [Folder View(Still)]. Turn the control wheel to select the desired movie, and press the center. During movie playback Control wheel operation Pause/resume Press the center.

  • Page 32: Deleting Images

    Deleting images You can delete the image that is currently displayed. Press (Delete). Press the center of the control wheel. • Select to quit the operation. Deleting several images Select MENU t [Playback] t [Delete] to select and delete several images at the same time.

  • Page 33: Operating The Camera

    Operating the camera The control wheel, control dial and soft keys allow you to use various functions of the camera. Control wheel When shooting, DISP (Display Contents), (Exposure Comp.), (Drive Mode) and (ISO) functions are assigned to the control wheel. When playing back, DISP (Display Contents) and (Image Index) functions are assigned to the control wheel.

  • Page 34: Control Dial

    Control dial You can set the aperture value and shutter speed, etc. by turning the control dial. The setting value assigned to the control dial changes for each shooting mode. Control dial Aperture value and shutter speed, etc. Soft keys The soft keys have different roles, depending on the context.

  • Page 35: Using The Guide Function Of The Camera

    Using the guide function of the camera The camera provides various “Help Guides” which explain the functions, and “Shooting tips” which introduce tips for better shooting. Use these guides to make better use of the camera. Help Guides The camera displays the Help Guides to explain the selected function, when you change the setting, etc.

  • Page 36: Using The Recording Functions

    Using the recording functions Zooming With the [Zoom] feature of the camera, you can increase the magnification to a scale greater than that of the optical zoom scale of the lens. When using a power zoom lens, operate the optical zoom of the lens and then camera shifts automatically to the [Zoom] feature of the camera.

  • Page 37: Setting The Function Using [Photo Creativity]

    Setting the function using [Photo Creativity] You can operate the camera intuitively using [Photo Creativity], since the [Photo Creativity] screen is designed for more intuitive operations than a normal screen. You can shoot a subject with easy operations and obtain creative photos easily.
  • Page 38 • [Photo Creativity] is only available when [Intelligent Auto] or [Superior Auto] is selected. Defocusing the background easily (Background Defocus Control) Select (Bkground Defocus) (page 37). Defocus the background by turning the control wheel. : You can focus on both the subject and the background.

  • Page 39: Picture Effect

    Picture Effect Select (Picture Effect) (page 37). Select the desired effect by turning the control wheel. (Off): Disables the Picture Effect function. (Toy Camera): Creates the look of a Toy Camera photo with shaded corners and pronounced colors. (Pop Color): Creates a vivid look by emphasizing color tones. (Posterization: Color): Creates a high contrast, abstract look by heavily emphasizing primary colors.

  • Page 40: Adjusting The Brightness Of Still Images (Exposure Compensation)

    Adjusting the brightness of still images (Exposure compensation) You can adjust the exposure in 1/3 EV steps in a range of –3.0 EV to +3.0 EV. Press (Exposure Comp.) on the control wheel. Turn the control wheel or the control dial to select the desired value, and press the center.

  • Page 41: Shooting Still Images Continuously

    Press OPTION, and then turn the control wheel to select the desired mode and press the center. (Self-timer: 10 Sec): Sets the 10-second delay self-timer. Use this when you want to include yourself in the picture. When you press the shutter button, the self-timer lamp flashes and beeps until the shutter operates.

  • Page 42: Changing The Screen Display (Disp)

    Changing the screen display (DISP) Press DISP (Display Contents) on the control wheel. Press DISP repeatedly to select the desired mode. During shooting Graphic Display: Shows basic shooting information. Graphically shows the shutter speed and aperture value, except for when [Shoot Mode] is set to [Sweep Panorama].

  • Page 43: Shooting With Various Shooting Modes

    Shooting with various shooting modes Select the shooting mode by turning the mode dial. (Intelligent Auto): The camera evaluates the subject and makes the proper settings. SCN (Scene Selection): Shoots with preset settings according to the subject or condition. (Sweep Panorama): Shoots with panoramic size. M (Manual Exposure): Adjusts the aperture and shutter speed.

  • Page 44: Scene Selection

    Scene Selection Select SCN (Scene Selection) (page 43). Turn the control wheel to select the desired mode, and press the center. • You can select another Scene Selection mode by turning the control dial. (Portrait): Blurs away backgrounds and sharpens the subject. Accentuate skin tones softly.

  • Page 45: Sweep Panorama

    Sweep Panorama While you pan the camera, the camera shoots several images and composes them into one panoramic image. Set the shooting mode to (Sweep Panorama) (page 43). Select the shooting direction by turning the control dial. Point the camera at the subject for which you want to set the brightness and focus, and then press the shutter...

  • Page 46: Shutter Priority

    Playing back scrolling panoramic images You can scroll panoramic images from the beginning to the end by pressing the center of the control wheel while panoramic images are being displayed. Press the center of the control wheel again to pause. •...

  • Page 47: Aperture Priority

    Aperture Priority You can adjust the range in focus, or defocuses the background. Select A (Aperture Priority) (page 43). Turn the control dial to select the desired value. • You can record a movie with a value adjusted with [Aperture Priority]. Program Auto/Superior Auto In [Superior Auto] mode, the camera shoots with higher quality than [Intelligent Auto] mode and perform composite shooting as necessary.

  • Page 48: Selecting The Flash Mode

    Selecting the flash mode When you want to fire the flash, press the (flash pop- up) button to pop up the flash. • When you do not intend to use the flash, push it back in place with your finger. (flash pop-up) button Select MENU t [Camera] t [Flash Mode].

  • Page 49: Setting Using The Fn (Function) Button

    The flash range The range of the flash depends on the ISO sensitivity and aperture value. F2.8 F3.5 F5.6 ISO200 xx m – xx m xx m – xx m xx m – xx m (xx feet – xx feet) (xx feet –...

  • Page 50: Fixing The Exposure Using The Ael Button

    Fixing the exposure using the AEL button Focus on the spot for which you want to set the exposure. Press the AEL button. The exposure value is fixed and the (AE lock) lights up. button Focus on your subject and shoot. How to keep the AE locked after you have released the AEL button Select MENU t [Setup] t [Custom Key Settings] t [Func.

  • Page 51: Selecting The Image Size/Record Setting

    Selecting the image size/record setting The image size determines the size of the image file that is recorded when you take an image. The larger the image size, the more detail will be reproduced when the image is printed on large format paper. The smaller the image size, the more images can be recorded.

  • Page 52: Using The Playback Functions

    Using the playback functions Displaying the image list Press the (Playback) button to enter playback mode. (Playback) button Press (Image Index) on the control wheel. Six images are displayed at a time. Turn the control wheel to select an image. •...

  • Page 53: Viewing Images On A Tv

    Viewing images on a TV To view images on the camera using a TV, an HDMI cable (sold separately) and an HD TV equipped with an HDMI connector are required. Connect the camera to the TV To the HDMI with an HDMI cable (sold connector separately).

  • Page 54: Checking The Functions Available

    Checking the functions available Menu list When you press MENU, the menu items; [Camera], [Image Size], [Brightness/ Color], [Playback], [Application]* and [Setup] appear on the screen. You can set various functions in each item. Items that cannot be set in the context are displayed in gray.

  • Page 55: Image Size

    Face Registration Registers or changes the person to be given priority in the focus. (New Registration/Order Exchanging/Delete/Delete All) Smile Shutter Each time the camera detects a smile, the camera releases the shutter automatically. (Off/On) Auto Port. Framing Analyzes the scene when capturing a face and saves another image with a more impressive composition.
  • Page 56 Panorama Image Size Selects the image size. (Standard/Wide) Panorama Direction Selects the direction to pan the camera when shooting panoramic images. (Right/Left/Up/Down) Movie File Format Selects AVCHD or MP4. Record Setting Selects the image size, frame rate, and image quality of movies.
  • Page 57 Picture Effect Shoots with the desired effects to express a unique atmosphere. (Off/Toy Camera/Pop Color/Posterization/Retro Photo/Soft High-key/Partial Color/High Contrast Mono./Soft Focus/HDR Painting/Rich-tone Mono./ Miniature) Creative Style Selects the image processing method. (Standard/Vivid/Portrait/Landscape/Sunset/Black & White) Playback Allows you to set playback functions. Delete Deletes images.
  • Page 58 Display Contents Switches the information to be displayed on the playback screen. (Display Info./Histogram/No Disp. Info.) Application You can add the desired functions to your camera by connecting to the application downloading website “PlayMemories Camera Apps” via internet. Setup Allows you to make more detailed shooting settings, or change the camera settings.
  • Page 59 Peaking Color Sets the color used for the peaking function. (White/Red/Yellow) Clear Image Zoom Zooms an image with higher quality than Digital Zoom. (On/Off) Digital Zoom Zooms an image with higher magnification than Clear Image Zoom. This feature can be also available in movie recording.
  • Page 60 Lens Comp.: Chro. Reduces the color deviation at the corners of the Aber. screen. (Auto/Off) Lens Comp.: Distortion Compensates for distortion on the screen. (Auto/Off) Face Priority Tracking Sets whether to preferentially-track a certain face or not when the camera detects that face during object tracking.
  • Page 61 Power Save Sets the level of the power saving feature. (Max/Standard) Power Saving Start Sets the time to turn the camera to the power save Time mode. (30 Min/5 Min/1 Min/20 Sec/10 Sec) LCD Brightness Sets the brightness of the LCD screen. (Manual/Sunny Weather) Viewfinder Bright.
  • Page 62 Select Shoot. Folder Selects the recording folder to which still images and MP4 movies are recorded. New Folder Creates a new folder to which still images and MP4 movies are recorded. Recover Image DB Repairs the image database file when inconsistencies are found.

  • Page 63: Functions Available For Each Shooting Mode

    Functions available for each shooting mode The functions you can use depend on the selected shooting mode. In the table below, indicates the function is available, and a – indicates the function is not available. The functions you cannot use are displayed in gray on the screen. Shoot Mode Exposure Self-timer...

  • Page 64: Flash Modes Available

    Flash modes available The flash modes you can select depend on the shooting mode and functions selected. In the table below, indicates the function is available, and a – indicates the function is not available. The flash modes you cannot select are displayed in gray on the screen. Shoot Mode Flash Off Autoflash...

  • Page 65: Importing Images To The Computer

    Importing images to the computer Installing the software To utilize images recorded with the camera, the following software is provided with CD-ROM (supplied): • “Image Data Converter” You can open RAW format image files. • “PlayMemories Home” (Windows only) You can import still images or movies recorded with the camera to your computer so that you can view them, and use various convenient features to enhance the images you have shot.

  • Page 66: Connect The Camera To The Computer

    Turn on your computer, and insert the CD-ROM (supplied) into the CD-ROM drive. The installation menu screen appears. • If the installation menu does not appear, double-click [Computer] (For Windows XP: [My Computer]) t (PMHOME) t [Install.exe]. • If the AutoPlay screen appears, select “Run Install.exe” and follow the instructions that appear on the screen to proceed with the installation.

  • Page 67: What You Can Do With The Supplied Software

    For details on “PlayMemories Home,” refer to “PlayMemories Home Help Guide”. Double-click the shortcut of (PlayMemories Home Help Guide) on the desktop, or click [Start] t [All Programs] t [PlayMemories Home] t [PlayMemories Home Help Guide]. “PlayMemories Home” support page (English only) http://www.sony.co.jp/pmh-se/...

  • Page 68: Image Data Converter

    • You can apply color labels, etc. For details on “Image Data Converter,” refer to Help. Click [Start] t [All Programs] t [Image Data Converter] t [Help] t [Image Data Converter Ver.4]. “Image Data Converter” support page (English only) http://www.sony.co.jp/ids-se/...

  • Page 69: Adding Functions To The Camera

    Some applications may be fee-based. Starting up downloading services Access the application downloading website. http://www.sony.net/pmca/ • Use Internet Explorer 8 or 9 for Windows, and Safari 5.0 or later for Mac. Follow the instructions on the screen and acquire a service account.

  • Page 70: Launching The Downloaded Application

    Downloading the application Access the application downloading website. http://www.sony.net/pmca/ • Use Internet Explorer 8 or 9 for Windows, and Safari 5.0 or later for Mac. Select the desired application To the USB terminal and download the application to the camera following the instructions on the screen.

  • Page 71: Connecting The Camera To A Network

    Connecting the camera to a network Transferring images to a Smartphone You can transfer still images to a Smartphone and view them. Download the application “PlayMemories Mobile” to your Smartphone from the application store. Press (View on Smartphone) and select the desired mode.

  • Page 72: Connecting To A Network

    Notes • Some images may not be displayed on the Smartphone, depending on the recording format. • The camera shares the connection information for [View on Smartphone] with a device that has permission to connect. If you want to change the device that is permitted to connect to the camera, reset the connection information by following these steps.

  • Page 73: Saving Images To A Computer

    Access Point Settings Select MENU t [Setup] t [Access Point Settings]. Select the access point you want to register. If the desired access point is displayed on the screen: Select the access point. If the desired access point is not displayed on the screen: Select [Manual Setting] and set the access point following the instructions on the screen.

  • Page 74: Viewing Images On A Tv

    Viewing images on a TV You can transfer images on the camera to a network-compatible TV without connecting them using a cable. The transferred images can be played back on the TV. Select MENU t [Playback] t [View on TV]. Select the device to be connected to the camera.

  • Page 75: Others

    The following table shows the approximate number of still images that can be recorded on a memory card formatted with this camera. The values are defined using Sony standard memory cards for testing. The values may vary depending on the shooting conditions.
  • Page 76 Movies The following table shows the approximate recording times available. These are the total times for all movie files. (h (hour), m (minute)) Capacity 16GB 32GB 64GB Record Setting 60i 24M(FX) xx m xx m xx m x h xx m xx h xx m 50i 24M(FX)
  • Page 77 – The power turns on and off once every ten times. – Using the battery pack that is charged for an hour after the charge lamp goes out. – Using Sony “Memory Stick PRO Duo” media (sold separately). • The measurement method is based on the CIPA standard.

  • Page 78: List Of Icons On The Lcd Screen

    List of icons on the LCD screen Icons are displayed on the screen to indicate the camera status. You can change the screen display using DISP (Display Contents) on the control wheel. Shooting standby Display Indication Shoot Mode P A S M Scene Selection Graphic display Scene Recognition...
  • Page 79 Display Indication Display Indication RAW RAW+J Image quality of Smart Zoom FINE STD still images Clear Image Zoom Recording mode 60i/50i of movies Digital Zoom 60i/50i 60p/50p View mode 24p/25p 24p/25p 101-0012 Playback folder – File number Protect Remaining battery 100% Print order Flash charge in...
  • Page 80 Display Indication Display Indication Focus mode Smile detection sensitivity indicator Focus area mode Face Detection White Balance Display Indication Level 7500K A7 G7 Phase Detection AF ranging points Soft Skin Effect Focus status DRO/Auto HDR 1/125 Shutter speed Auto Port. F3.5 Framing Aperture value...
  • Page 81 Display Indication 12/12 Image number/ Number of images in the view mode Appears when HDR did not work on the image. Appears when [Picture Effect] did not work on the image. Histogram...

  • Page 82: Learning More About The Camera (Α Handbook)

    Learning more about the camera (α Handbook) “α Handbook,” which explains how to use the camera in detail, is included on the CD-ROM (supplied). Refer to “α Handbook” for in-depth instructions on the many functions of the camera. For Windows users Turn on your computer, and insert the CD-ROM (supplied) into the CD-ROM drive.

  • Page 83: Troubleshooting

    Remove the battery pack, wait for about one minute, re- insert the battery pack, and then turn on the power. Reset the settings (page 61). Consult your Sony dealer or local authorized Sony service facility. Battery pack and power The battery pack cannot be installed.

  • Page 84: The Power Turns Off Suddenly

    The power turns off suddenly. • When the camera or battery pack is too warm, the camera displays a warning message and turns off automatically to protect the camera. • If you do not operate the camera for given period of time, the camera turns to power saving mode.

  • Page 85: Recording Takes A Long Time

    Shooting images Nothing is displayed on the LCD screen when the power is turned • If you do not operate the camera for given period of time, the camera turns to power saving mode. To cancel the power save, operate the camera, such as pressing the shutter button halfway down.

  • Page 86: The Flash Takes Too Long To Recharge

    The flash takes too long to recharge. • The flash has been fired in succession in a short period. When the flash has been fired in succession, the recharging process may take longer than usual to avoid overheating of the flash. The image taken with the flash is too dark.

  • Page 87: The Image Is Blurred

    The image is blurred. • The picture was taken in a dark location without the flash, resulting in camera-shake. The use of a tripod or the flash is recommended (page 48). [Hand-held Twilight] and [Anti Motion Blur] in [Scene Selection] (page 44) are also effective in reducing blur.

  • Page 88: Precautions

    Precautions On the functions available with the camera • Your camera is 1080 60i- compatible or 1080 50i- Black, white, red, blue and compatible. green points To check whether the camera is 1080 60i-compatible or 1080 • Do not hold the camera by the 50i-compatible, check for the LCD screen.
  • Page 89 • In a location subject to rocking accessories vibration • Near strong magnetic place It is recommended that you use Sony • In sandy or dusty places lenses/accessories designed to suit Be careful not to let sand or dust the characteristics of this camera.
  • Page 90 Consult your Sony dealer or • The recorded contents cannot be local authorized Sony service compensated for even if recording facility.

  • Page 91: To A Computer

    • To avoid the potential risk of data • Keep the camera, supplied loss, always copy (back up) data to accessories, etc., out of the reach other media. of children. A memory card, etc., • Before you record one-time events, may be swallowed.
  • Page 92 On the data specifications • This camera also uses MPEG-4 AVC/H.264 Main Profile for MP4 described in this manual format recording. For this reason, The data on performance and movies recorded in MP4 format specifications are defined under the with this camera cannot be played following conditions, except as on devices other than those that described in this manual: at an...

  • Page 93: Specifications

    Specifications Camera [Shutter] Type: Electronically-controlled, [System] vertical-traverse, focal-plane type Camera type: Interchangeable lens Speed range: digital camera Still images: 1/4 000 second to Lens: E-mount lens 30 seconds (1/3 EV step), BULB [Image sensor] Movies: x/x xxx second to 1/4 second, up to 1/30 second in Image sensor: APS-C format AUTO mode (1/3 EV step) (23.5 mm ×...

  • Page 94: Rechargeable Battery Pack

    For countries or regions other than Still image: JPEG (DCF Ver. 2.0, the USA and Canada: Approx. 43 g Exif Ver. 2.3, MPF Baseline) (1.5 oz) compliant, RAW (Sony ARW 2.3 Format) Rechargeable battery pack Movie (AVCHD format): AVCHD NP-FW50 format Ver.
  • Page 95 Lens Lens E16 – 50 mm zoom lens E55 – 210 mm zoom lens Camera NEX-6L/6Y NEX-6Y Equivalent 24 – 75 82.5 – 315 35 mm-format focal length (mm) Lens 8–9 9–13 groups-elements Angle of view 83° – 32° 28.2° – 7.8° Minimum focus 0.25 –...
  • Page 96 Intel Corporation. Trademarks • Android is a registered trademark of • is a trademark of Sony Google Inc. Corporation. • DLNA and DLNA CERTIFIED are • “Memory Stick,” , “Memory trademarks of Digital Living Stick PRO,”...
  • Page 97 • In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ™ or ® marks are not used in all cases in this manual. • Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store (where available).

  • Page 98: Index

    Index Digital Zoom ....... 59 Access Point Settings....73 DISP (Display Contents)..... 42 AEL button ........50 DISP Button(Monitor) ....55 AEL w/ shutter......58 Disp MAC Address ..... 62 AF Illuminator ......58 Display Card Space ..... 62 AF Micro Adj......60 Display Color ......
  • Page 99 Moisture condensation ....89 Handbook........82 Movie .......... 29 Hand-held Twilight...... 44 Movie Audio Rec ......60 HDMI Resolution ......61 MOVIE Button......60 Help Guide Display ..... 60 Help Guides ......... 35 New Folder........62 High ISO NR ....... 59 Night Portrait.......
  • Page 100 S. Auto Image Extract....59 Version ........61 Scene Selection......44 View mode ........57 Scroll playback ......46 View on Smartphone....71 Select Shoot. Folder..... 62 View on TV (HDMI cable Self-timer ........40 compatible TV)....... 53 Self-timer(Cont)......41 View on TV (Network compatible Send to Computer ......
  • Page 104 Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website. Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink. ©2012 Sony Corporation Printed in Thailand...
