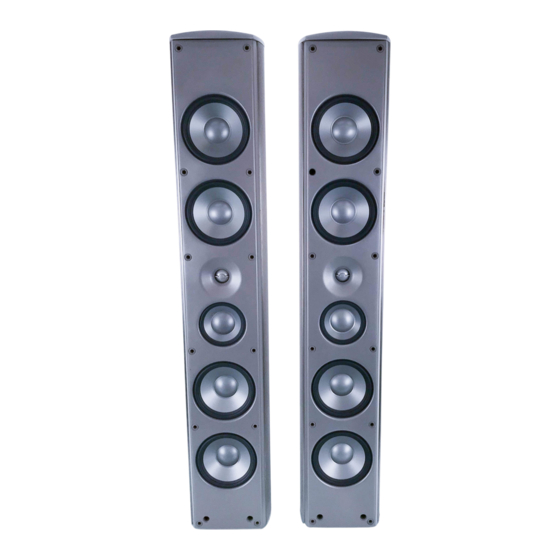

Infinity PRELUDE Owner's Manual

Tower speaker
Hide thumbs Also See for PRELUDE:

Advertisement

Quick Links

P
™
MTS T
RELUDE
OWER
Owner's Guide

Advertisement

loading

Related Manuals for Infinity PRELUDE

Summary of Contents for Infinity PRELUDE

  • Page 1 ™ MTS T RELUDE OWER Owner’s Guide...

  • Page 2: Table Of Contents

    Technology – Ceramic Metal Matrix Diaphragms ™ (C.M.M.D. ™ Unpacking the Product/Included Accessories Installing the Tower on Top of the Subwoofer Installing the Tower onto the Floor Stand Wall-Mounting the Tower Using the Wall Bracket Placement Specifications PRELUDE MTS TOWER...

  • Page 3: Unpacking The Product/Included Accessories

    We hope you enjoyed this brief introduction to the technology of described as revolutionary.The new Infinity Prelude MTS the Prelude MTS system. If you would like to further explore the loudspeaker system is an elegant case in point. technology and design of the Prelude MTS system, please ask your Infinity dealer for the C.M.M.D.

  • Page 4: Installing The Tower On Top Of The Subwoofer

    Before proceeding, you should decide how you would like to install the tower portion of the Prelude MTS system.The tower may be attached to the powered subwoofer, mounted to our optional floor stands, or mounted on the wall using the optional wall brackets. In...
  • Page 5 SUBWOOFER VIEWING CUP IN BOTTOM OF SPEAKER TOWER – Set Toggle Switch in tower cup in bottom to the “Full Range” position. Please consult the Prelude MTS Subwoofer manual for exceptions to this setting. ALIGNMENT PINS INCLUDED WITH VIEWING CUP IN BOTTOM...
  • Page 6 Press flush into place two screw caps to hide holes in front baffle base. Make sure that the alignment slots point toward the center to assure that the surface curve matches that of the baffle. PRELUDE MTS TOWER...

  • Page 7: Installing The Tower Onto The Floor Stand

    Toggle Switch in tower cup to “Full Range. ” When using as a front channel, set Toggle Switch in tower cup in bottom to the “Full Range” position. Please consult the Prelude MTS Subwoofer manual for exceptions to this setting.
  • Page 8 Turn the base upside-down and remove the (3) 1/4-20 Phillips care to fold it over the sides so as to keep sand from falling into the screws holding the foot onto the base. base. Fill the plastic bag with sand. PRELUDE MTS TOWER...
  • Page 9 Replace the foot with the same 1/4-20 pins into their receptacle guide holes. Phillips screws. PRELUDE MTS TOWER...
  • Page 10 Press flush into place two screw caps to hide holes in front-baffle base. Make sure that the alignment slots point toward the center to ensure that the surface curve matches that of the baffle. PRELUDE MTS TOWER...

  • Page 11: Wall-Mounting The Tower Using The Wall Bracket

    Toggle Switch in tower cup to “Full Range. ” When using as a front channel, set Toggle Switch in tower cup in bottom to the “Full Range” position. Please consult the Prelude MTS Subwoofer manual for exceptions to this setting.
  • Page 12 – Remove (2) existing screws in top and (4) in bottom of Speaker Tower as shown. Feed your speaker cables through the slot in the Bottom End Cap as shown and connect to the terminals. Place the Bottom End Cap on the Speaker Tower bottom. PRELUDE MTS TOWER...
  • Page 13 Speaker Tower assembly from slipping off the Wall Bracket. After the top bolt is tightened, insert and tighten the other 5/16-24 Hex Head Bolt in the bottom. PRELUDE MTS TOWER...

  • Page 14: Placement

    LEFT RIGHT CHANNEL CHANNEL The Infinity Prelude MTS is designed to offer excellent performance in any listening room or home-theater system. However, the following placement guidelines and suggestions will start you on your way to achieving optimum performance. Remember, these are guidelines. We suggest you experiment with positioning the loudspeakers to determine their ideal placement in your particular listening room.

  • Page 15: Specifications

    EN 50081-1:1992 EN 50082-1:1992 Infinity continually strives to update and improve existing products, as well as create Steen Michaelsen Infinity Europe A/S new ones.The specifications and construction details in this and related Infinity Birkerød.
  • Page 16 © 1999 Infinity Systems, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA (800) 553-3332 (USA Only) *Trademarks of Dolby Laboratories.THX is a registered trademark of Lucasfilm, Ltd. Part No. 335060-002 Infinity is a registered trademark of Infinity Systems, Inc. Printed in USA 10/99...
