Service Manual for L1 and L2

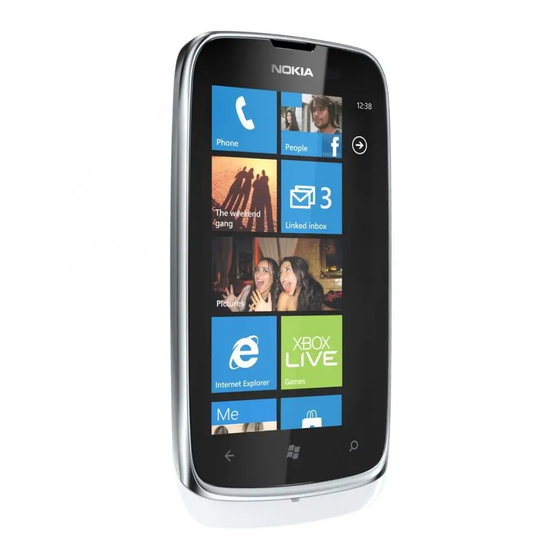

Nokia Lumia 610
RM-835 RM-836
Key features
Most affordable Nokia Lumia yet
Updated Windows Phone operating system
8 GB internal mass memory
3.7" WVGA 800 x 480 pixels LCD TFT display
Version 1.0
Exploded view
Solder components
Service concept
Disassembly steps
More
Service devices
More
Phone reset
More
©2012 Nokia | Nokia Internal Use only | All Rights Reserved.
Assembly steps
More
Product controls and interfaces
More
More
More
More

Advertisement

Table of Contents
loading

Related Manuals for Nokia Lumia 610

Summary of Contents for Nokia Lumia 610

  • Page 1 3.7" WVGA 800 x 480 pixels LCD TFT display Version 1.0 Exploded view Disassembly steps Assembly steps More More More Solder components Service devices Product controls and interfaces More More More Service concept Phone reset More More ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.

  • Page 2: Exploded View

    BT/GPS/WLAN ANTENNA I0027 I0028 TYPE LABEL D-COVER I0019 I0029 SCREW TORX+ SIZE 4 I0030 BATTERY COVER I0031 Only available Not reuseable Repair/swap as assembly after removal only in level 3 ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.

  • Page 3: Disassembly Steps

    Service Manual Level 1 and 2 Disassembly steps Nokia Lumia 610 RM-835, RM-836 Version 1.0 For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera removal tool SS-287 and an AV plug. Protect the A-COVER with protective film.
  • Page 4 Open the BATTERY COVER by pulling it to the direction shown. Remove the BATTERY COVER. Unscrew the eight Torx+ size 4 screws in the order shown. Do not use them again. Discard them.
  • Page 5 Insert the SRT-6 to the shown place and release the bottom end of the D-COVER. Release also both sides of the D-COVER with the SRT-6.
  • Page 6 Lift up the bottom end of the D-COVER and pull it to the direction shown. The D-COVER can now be separated. Remove the CAMERA KEY with tweezers.
  • Page 7 Remove the POWER KEY with tweezers. Remove the VOLUME KEY with tweezers.
  • Page 8 Use the SS-93 to open the TOUCH PANEL connector. Be very careful not to damage the connector or the small components around the connector. Open the DISPLAY connector with the SS-93. Be careful not to damage the connector or components nearby.
  • Page 9 Open the two shown clips holding the ENGINE BOARD with the sharp end of the SS-93. Lift up the bottom end of the ENGINE BOARD and pull it to the direction shown. The ENGINE BOARD can now be separated.
  • Page 10 Lift up the DISPLAY with the SS-93 and remove it. Protect the other side of the A-COVER with protective film.
  • Page 11 Protect the DISPLAY with protective film. Release the EARPIECE with the dental tool. Be careful not to injure yourself with the sharp end of the dental tool! Remove the EARPIECE with tweezers. Do not use it again. Discard it.
  • Page 12 Remove the EARPIECE adhesive remains from the A-COVER. Discard them. Release the IHF SPEAKER with the SS-93 as shown.
  • Page 13 Remove the IHF SPEAKER and discard it. Remove the IHF SPEAKER GASKET. The IHF SPEAKER GASKET is not reusable. Disacrd it.
  • Page 14 Lift up and remove the AV JACK with an AV plug. Remove the AV JACK ADHESIVE from the D-COVER. Do not use it again.
  • Page 15 Push the LED FLASH gently with the sharp end of the SS-93. Remove the LED FLASH with tweezers. Remove the LED FLASH ADHESIVE. Discard it.
  • Page 16 Release the LED FLASH RUBBER with the dental tool. Be careful not to damage the nearby components. Remove the LED FLASH RUBBER with tweezers. Remove the CAMERA with the camera removal tool SS-287. Please note that the tool used in this picture is not SS-287.
  • Page 17 Release the SHIELDING LID 2 with the SS-93. Remove it with tweezers and discard it. Release also the SHIELDING LID 1 with the SS-93. Remove it with tweezers. Do not use it again. Discard...
  • Page 18 Release the LCD CONNECTOR RUBBER with the dental tool. Be careful not to damage the nearby components. Remove it with tweezers. Do not use it again. Discard it. Release the TOUCH PANEL CONNECTOR RUBBER with the dental tool. Be careful not to damage the nearby components.
  • Page 19 Lift up the SIM TAPE with the dental tool. Be careful not to damage the nearby components. Remove it with tweezers. Do not use it again. Discard it. Release the ANTENNA RUBBER with the dental tool. Be careful not to damage the nearby components. Remove it with tweezers.
  • Page 20 Release the SECONDARY MIC RUBBER with the dental tool. Be careful not to damage the SECONDARY MIC or any nearby components. Remove it with tweezers. Do not use it again. Release the KEY LED RUBBER with the dental tool. Be careful not to damage the nearby components. Remove it with tweezers.
  • Page 21 Release one corner of the DISPLAY CONDUCTIVE TAPE with the dental tool. Be careful not to damage the ENGINE BOARD. Slowly peel off the DISPLAY CONDUCTIVE TAPE. The DISPLAY CONDUCTIVE TAPE is not reusable. Discard it.
  • Page 22 Remove the DISPLAY CONDUCTIVE TAPE adhesive remains from the engine board with the SS-93. The Nokia Lumia 610 disassembly procedure is complete. -END OF DISASSEMBLY- ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.

  • Page 23: Assembly Steps

    Service Manual Level 1 and 2 Assembly steps Nokia Lumia 610 RM-835 RM-836 Version 1.0 Fasten the eight Torx+ size 4 screws to the torque of 9 Ncm in the order shown. ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.

  • Page 24: Solder Components

    F1601 PD2302 PD2301 PAD3502 PAD3202 PAD3201 SH11 PAD3501 SK3703 SK3704 SK3701 SK3702 BT/WLAN/GPS Volume Volume Power Camera v1.0 up switch down switch switch switch ©2012 Nokia | Confidential | All Rights Reserved.

  • Page 25: Service Devices

    For more information, refer to the Service Bulletin (SB-011) on Nokia Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment” document on Nokia Online. ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.
  • Page 26 10 — Search key 11 — Microphone 12 — Camera 13 — Camera flash 14 — Volume keys 15 — Power/Lock key 16 — Camera key 17 — Loudspeaker ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.
  • Page 27 On Device Diagnostics Tool (ODDT) The ODDT is an app for performing basic device hardware troubleshooting at Nokia Care Points. The ODDT is not visible on retail phones and it is intended only for use by trained personnel at Nokia Care Points.

  • Page 28: Hardware Reset

    - This procedure warns the consumer about data loss! - Tap Settings > About > reset your phone Note - Nokia Lumia 610 does not support OS reset using hardware keys! ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.

  • Page 29: Version History

    Service Manual Level 1 and 2 Version history Nokia Lumia 610 RM-835 RM-836 Version 1.0 Version Date Description 05.03.2012 First published version ©2012 Nokia | Nokia Internal Use only | All Rights Reserved.
