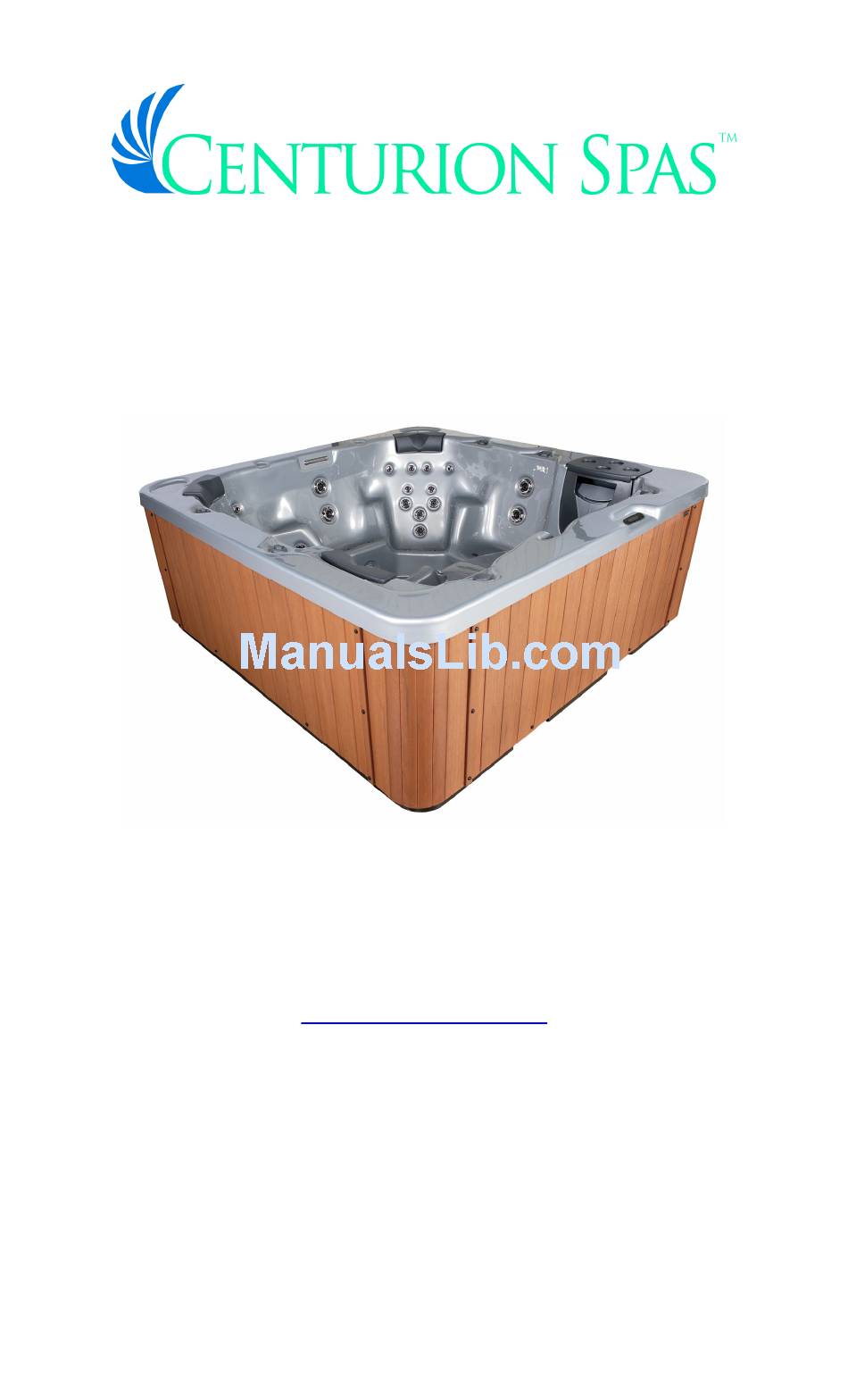

- Page 1 OWNER’S MANUAL CT 10000 | CT 9000 | CT 8000 | CT 7000 5301 E. Hanna Ave. Tampa, FL 33610 (727) 490-2239 www.CenturionSpas.com Part Number 827617...
- Page 2 Owner’s Information Dealer: Date Purchased: __________________________ Company: __________________________ Address: __________________________ Telephone: __________________________ Installer: Date Installed: __________________________ Company: __________________________ Address: __________________________ Telephone: __________________________ Spa: Date Delivered: __________________________ Model: __________________________ Color: __________________________ Serial Number: __________________________ Your unique spa serial number is located on a data plate outside the cabinet at ground level directly below the topside control panel.
-
Page 3: Table Of Contents
If you have any questions whatsoever, do not hesitate to call Centurion for more details. Copyright © 2007, Centurion Spas. All rights reserved. No portion of this manual may be reproduced in any manner without express written permission of Centurion Spas. -
Page 4: Introduction
This manual and its contents are subject to change without notice. Although Centurion Spas has prepared this manual as accurate and precise as possible, we will not be liable for loss, injury or damages caused by improper installation or use of spa (improper or otherwise). -
Page 5: Important Safety Information
I m p o r t a n t S a f e t y I n f o r m a t i o n Read and Follow All Instructions Avoid Risks To Children: DANGER: RISK OF CHILD DROWNING: Extreme care must be exercised, to prevent unauthorized access by children. - Page 6 DO NOT use a wall switch, ground fault circuit interrupter, • circuit breaker, fuse, or plugging and unplugging the spa as a means of turning your spa on or off for normal everyday use. DO NOT bring any electrical appliances into or near the spa, •...
- Page 7 Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6ºF (37ºC). The symptoms of hyperthermia include drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia include: Unawareness of Physical inability to •...
- Page 8 Warning Sign Warning Sign Must Be Posted – The red WARNING sign like the one shown is packed with your new spa. This sign must be posted in a prominent place in close proximity to the spa installation site immediately upon completion of spa installation.
-
Page 9: Installation
I n s t a l l a t i o n Proper planning is an important consideration when installing your new spa. Site selection is a critical step and should be given some serious thought. Planning ahead, before the delivery of your spa, makes the installation process easier. -
Page 10: Electrical Specifications
E l e c t r i c a l S p e c i f i c a t i o n s Important – Qualified and licensed electricians must perform all electrical hookups. The following specifications must be followed in order to ensure proper performance and safety. - Page 11 Caution: Connect only to a circuit protected by a residual current device. Test the RCD before each use of the spa. Attention: Connecter uniquement a un circuit protege par un disjoncteur differentiel. Toujours verifier l'efficacite du disjoncteur differentiel avant d'utiliser le bain. Bonding lugs.
- Page 12 US & Canada Wiring Diagram Important: Installation of this GFCI Circuit Breaker, including Ampere sizing and selection of conductor size and type, must be performed by a qualified electrician in accordance with the National Electrical Code, or the Canadian Electrical Code, and all federal, state, and local codes and regulations in effect at the time of installation.
- Page 13 European 1x32A Wiring Diagram Jumper L1-L2-L3...
- Page 14 European 2x16A Wiring Diagram Jumper L2-L3...
- Page 15 European 3x16A Wiring Diagram No Jumper...
-
Page 16: Startup
S t a r t u p Important – Read these step-by-step startup procedures before starting your spa. Failure to follow any of these steps listed may result in damage to the equipment and may void your warranty. Special Note: If you are unsure of any of the above startup procedures, please call the 24/7 technical support line at (727) 490-2239. - Page 17 Before Adding Water Before adding water, go through these simple steps now to prevent common issues when setting up your spa for the first time. Verify that the following have all been rechecked. 1. Turn off all power to the spa at the main breaker panel. 2.
- Page 18 Filling Your Spa Now it's time to fill your spa with water. Do not turn on the electricity yet until the spa is completely filled. To properly fill your spa: 1. Make sure that the filters (in the filtration canister) are gently screwed into place. Turn them clockwise until they stop being careful not to over-tighten them (this avoids cracking the filter).
- Page 19 1. Turn on the breaker and test the operation of the Ground-Fault Circuit Interrupter (GFCI) breaker by pushing the small button. This should automatically trip the spa's circuit breaker. DANGER: If this breaker does not trip, immediately call your electrician. Do not use your spa! Only if pushing this button successfully trips this circuit breaker should you reset this breaker and proceed to the next step.
- Page 20 6. Press the Pump 1 button a third time to turn Pump 1 off. A built- in timer automatically turns Pump 1 off after 20 minutes, unless the pump manually has been deactivated first. 7. Press the Pump 2 button to activate the single-speed pump (if equipped).
- Page 21 3. Use the Up/Down button to set the current hour. 4. Press the Light button once and use the Up/Down button to set the current minutes. 5. Press the Light button once and use the Up/Down button to set the Filter Start (FS) time (FS=12A recommended). 6.
-
Page 22: Operating Instructions
O p e r a t i n g I n s t r u c t i o n s Setting the Time Enter programming mode by holding down the Light button for five seconds. The display will show the current time. Use the Up/Down button to change the hour setting for both the current hour and A.M. - Page 23 Water Chemistry Once your spa reaches 90ºF or higher, add the start-up AquaClara Natural spa care system (if equipped, see page 22) to the water. Turn Pump 1 on high speed immediately after you add AquaClara Natural to the water to evenly distribute AquaClara through your system.
-
Page 24: Water Management
W a t e r M a n a g e m e n t Centurion Spas offers an optional enzyme- based water purification system for your spa. AquaClara Natural naturally solves most spa water treatment problems and dramatically reduces spa maintenance. -
Page 25: Frequently Asked Questions
Call our service department at (727) 490-2239. What happens when my warranty is expired? Centurion Spas will continue to provide service for your spa after your warranty has expired via the 24/7 technical support hotline – (727) 490-2239. - Page 26 What is the insulation made of? Centurion Spas uses a five-step process to fully insulate all of its hot tubs. First, the bottom of each shell is blanketed with a thick layer of solid-cell, high- density insulating foam. Second, an outer layer of insulation is added.
- Page 27 How do I bleed air from my system? When draining and refilling your spa, the pump may become air locked. An air-locked pump stops water from flowing in your spa and is easily resolved by bleeding off the trapped air. To do this: Turn off all pumps •...
-
Page 28: Troubleshooting
T r o u b l e s h o o t i n g Centurion Spa Manufacturers offers a quality of spa that is second to none. If a problem arises, you can check this list for a quick solution. - Page 29 PROBLEM CAUSE SOLUTION Pump not No power to Reset circuit breakers on GFCI panel running and main circuit breaker panel Water does Air lock Bleed air from the system (page 25) not flow Closed Jets Open all jets by turning counterclockwise ACV open Close air control valves...
- Page 30 Error Codes CODE DESCRIPTION CORRECTIVE ACTION bL Er Device not • Open the access panel to spa pack O3 Er detected and reseat corresponding plug (see P1 Er Air-locked callouts on page 14) P2 Er pump • Reset GFCI breaker P3 Er •...
- Page 31 CODE DESCRIPTION CORRECTIVE ACTION SP Ot Internal • Open the access panel to the spa pack overheat (below the control panel) and allow two hours to cool down • Reset GFCI breaker Low-Level Settings The spa pack – located inside the spa below the topside control panel –...
-
Page 32: Maintenance And Care
M a i n t e n a n c e a n d C a r e Important – The warranty on your spa and equipment depends on the proper use of the AquaClara Natural Water Management System™. (Refer to page 22 for more information on the optional AquaClara Natural Water Management System.) In addition, the following maintenance procedures must be followed periodically. - Page 33 This ensures that the water is being filtered properly. DO NOT USE BLEACH. Centurion Spas recommends having replacement filters on hand, that can be swapped between cleanings.
-
Page 34: Shutdown / Winterizing
WARNING: Damage from improperly winterizing or restarting your spa is not covered under your warranty. You can call the Centurion Spas 24-hour technical support hotline at (727) 490-2239 for recommended service organizations to assist you in properly... -
Page 35: Glossary
G l o s s a r y AquaClara An enzyme-based water purification system for your spa. AquaClara naturally solves most spa water treatment problems and dramatically reduces spa maintenance. Blower A heavy duty motor which aerates the water with millions of tiny bubbles throughout the spa providing soft tissue massage. -
Page 36: Specifications
S p e c i f i c a t i o n s CT 10000 (Model 1201) Specifications* Dimensions 94”L x 94”W x 35”D Seats Water Jets Air Jets Capacity 415 USG /1570 L Dry Weight 810 Lbs/370 Kg... - Page 37 CT 10000 CALLOUTS Part# Description Part# Description 820074 Jet, Typhoon Dir 2" (SS) 621321 Valve Air control 1" Gr/S 606174 Compensator Ring 2" 621251 Waterfall Valve 1" Gr/S 606036 Body, Jet 2" 609082 Ozone Wall fitting (Gr) 1A 620590 Jet, Cluster Pulsator...
- Page 38 CT 9000 (Model 1202) Specifications* Dimensions 92 ½”L x 92 ½”W x 40”D Seats Water Jets Air Jets Capacity 435 USG /1650 L Dry Weight 835 Lbs/380 Kg Filled Weight 4460 Lbs/2030 Kg Electrical 240VAC 40A 60Hz GFCI * Specifications are subject to change without notice.
- Page 39 CT 9000 CALLOUTS Part# Description Part# Description 820074 Jet, Typhoon Dir 2" (SS) 820615 Jet, Twin Rot 3-3/8" (SS) 606174 Compensator Ring 2" 606176 Compensator Ring 4" 606036 Body, Jet 2" 606038 Body, Jet 4", Gasket, Nut 820075 Jet, Typhoon Rot 2" (SS) 620080 Galaxie Air Injector (Gr) 606174...
- Page 40 CT 8000 (Model 1203) Specifications* Dimensions 84 ¼”L x 84¼”W x 35”D Seats Water Jets Air Jets Capacity 245 USG /930 L Dry Weight 745 Lbs/338 Kg Filled Weight 2750 Lbs/1250 Kg Electrical 240VAC 40A 60Hz GFCI * Specifications are subject to change without notice.
- Page 41 CT 8000 CALLOUTS Part# Description Part# Description 820074 Jet, Typhoon Dir 2"" (SS) 621321 Valve Air control 4" (Gr) 606174 Compensator Ring 2" 621251 Waterfall Valve 1" Gr 606036 Body, Jet 2" 609082 Ozone Wall fitting (Gr) 820075 Jet, Typhoon Rot 2"" (SS) 609082 Drain (Gr) 606174...
- Page 42 CT 7000 (Model 1204) Specifications* Dimensions 79 ½”L x 79½”W x 35”D Seats Water Jets Air Jets Capacity 230 USG /860 L Dry Weight 635 Lbs/290 Kg Filled Weight 2350 Lbs/1150 Kg Electrical 240VAC 40A 60Hz GFCI * Specifications are subject to change without notice.
- Page 43 CT 7000 CALLOUTS Part# Description Part# Description 820074 Jet, Typhoon Dir 2" SS 609082 Drain (Gr) 606174 Compensator Ring 2" 609084 Drain Valve, Economy 606036 Body, Jet 2" 612069 Suction 200GPM 2"Slip (Gr) 820607 Jet, Directional 3 3/8" (SS) 620380 Waterfall Assembly 6"...
-
Page 44: Conditions Of Warranties
Corrosion at jets. Deterioration of pillows, filter lid, filters, any seals and gaskets. Note: Centurion Spas must receive written notification within 10 days if the original consumer/purchaser plans to relocate the spa to a site other than the address on file. - Page 45 A credit card must be provided to secure shipment of parts. All repairs and replacements will be made in accordance with the limited warranty. The consumer/purchaser is responsible for mileage or travel charges incurred by authorized Centurion Spas services companies. Failure/damage due to an improper electrical installation will not be covered under the terms of the warranty.
- Page 46 Notes:...
-
Page 47: Limited Warranty
The Manufacturer will not be responsible for any statements or representations made in any form that go beyond, are broader than or are inconsistent with any authorized literature or specifications furnished by Centurion Spas. DISCLAIMERS: The Manufacturer and its representatives shall not be liable for any injury, loss, cost or other... - Page 48 5301 E. Hanna Ave. Tampa, FL 33610 (727) 490-2239 www.CenturionSpas.com...
