2.3.3 GROUND FAULT SENSING MODULE
This unit is equipped with a ground fault circuit interrupter (GFCI).
This device meets applicable federal, state and local codes. The
ground fault sensing module covers all receptacles.
In the event of a ground fault, the GFCI will trip and quickly stop the
flow of electricity to prevent serious injury.
Definition: The GFCI constantly monitors electricity flowing in a
circuit. If the current flowing through the circuit varies from what
is returning by even a small amount, the GFCI instantly switches
power off by tripping the main circuit breaker on the generator's
control panel.
A GFCI does NOT protect against circuit overloads, short circuits,
or shocks. For example, electric shock can still occur if a person
touches charged electrical wires while standing on a non-
conducting surface, such as a wood floor.
Test the GFCI outlet before each use as follows (Figure 7):
•
Start the generator.
•
Plug a test lamp into duplex receptacle, the lamp should be
on.
•
Press the "Test" button on the GFCI to trip the device. The main
breaker should 'trip', this being indicated by the movement of
the actuator handle to the 'OFF' position.
•
This should stop the flow of electricity making the lamp shut
off. If the main breaker dose not 'trip', the GFCI is not working
and the generator should not be used. Contact a local service
dealer.
•
To restore the flow of electricity, set the main breaker actuator
handle to the 'ON' position. The handles should remain latched
in this position. If it does not, either the GFCI or the main breaker
is failing and should be replaced. Contact a local service
dealer.
•
This GFCI is protected against overload by a 35A/240V main
breaker.

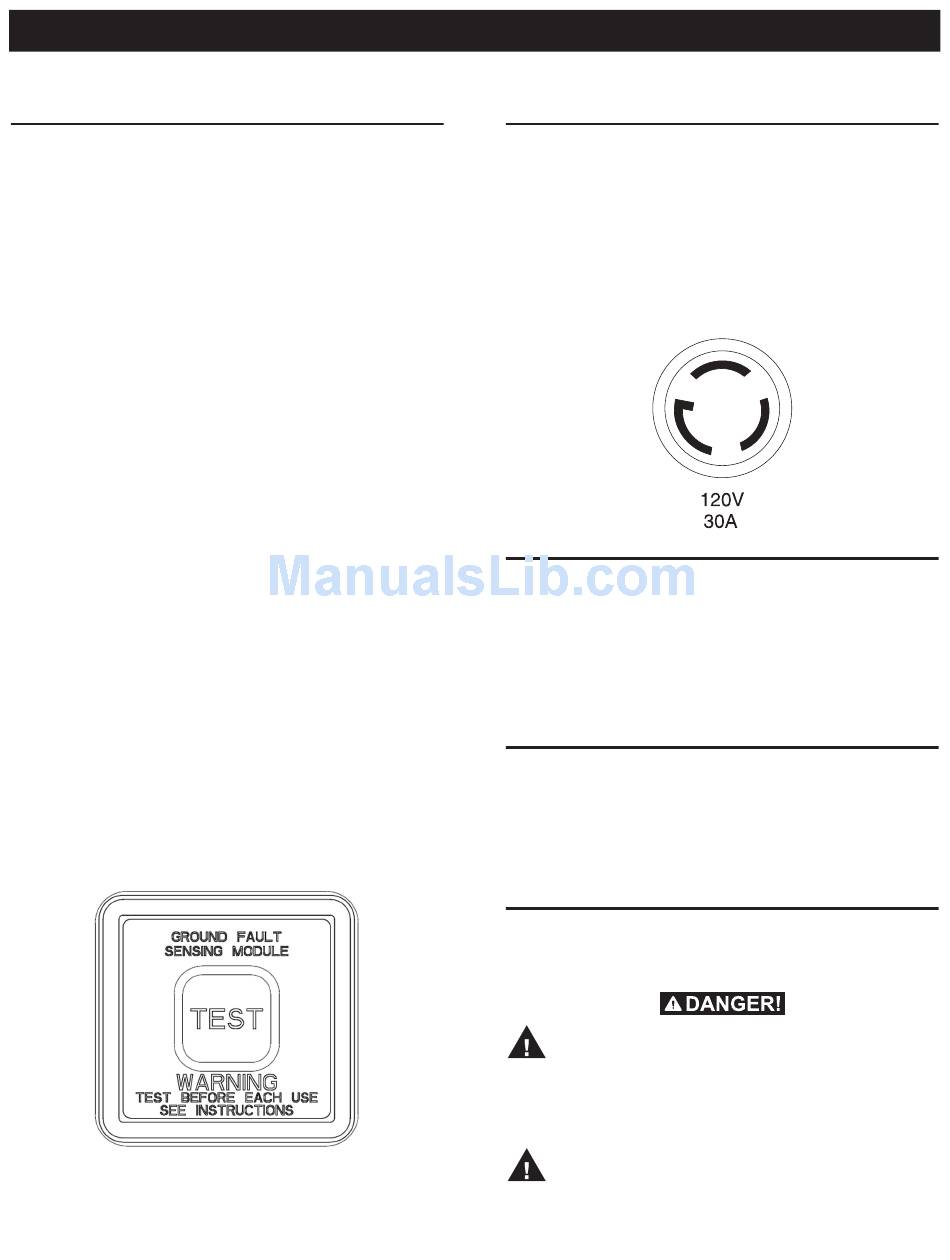

Figure 7 - Testing the GFCI
2.3.4 120 VAC, 30 AMP RECEPTACLE
Use a NEMA L5-30 plug with this receptacle (rotate to lock/
unlock). Connect a suitable 3-wire cord set to the plug and to the
desired load. The cord set should be rated for 250 Volts AC at 30
Amps (or greater) (Figure 8).
Use this receptacle to operate 120 Volt AC, 60Hz, single phase
loads requiring up to 7200 watts (7.2kW) of power at 30 Amps.
The outlet is protected by a 30 Amp push-to-reset circuit breaker.
Figure 8 - 120 VAC, 30 Amp Receptacle
2.4 AUTOMATIC IDLE CONTROL
This feature is designed to greatly improve fuel economy. When
this switch is turned "On," the engine will only run at its normal
fast governed engine speed when electrical load is connected.
When the load is removed, the engine will run at a reduced speed.
With the switch "Off," the engine runs at the normal fast engine
speed all the time. Always have the switch OFF when starting
and stopping the engine (Figure 12).
2.5 VOLTAGE SELECTOR SWITCH (XP6500E
ONLY)
The voltage selector switch, when in the "120/240V" position,
divides the available power into 120V and 240V available through
all appropriate receptacles. When in the "120V only" position, all
power is provided at 120V and equally balances the alternator.
2.6 HOW TO USE THE GENERATOR
If there are any problems operating the generator, please call the
generator helpline at 1-888-436-3722.
Never operate in an enclosed area or indoors!
NEVER use in the home, or in partly enclosed
areas such as garages, even if doors and
windows are open! ONLY use outdoors and far
from open windows, doors, vents, and in an
area that will not accumulate deadly exhaust.
The engine exhaust fumes contain carbon
monoxide, which you cannot see or smell.
This poisonous gas, if breathed in sufficient
concentrations, can cause unconsciousness or
even death.
Operation
7
