Select Readouts sets individual digital readouts on the 3D or 2D Sonar View. This Advanced
feature allows you to select what data will be displayed in each of 6 fixed-position data
windows arranged around the left and bottom edges of the 3D or 2D Sonar View screen, or
whether a particular data window will be turned off, displaying nothing in that area; you can
access this menu choice only when in Advanced User Mode (see Setup Menu Tab: User Mode.)

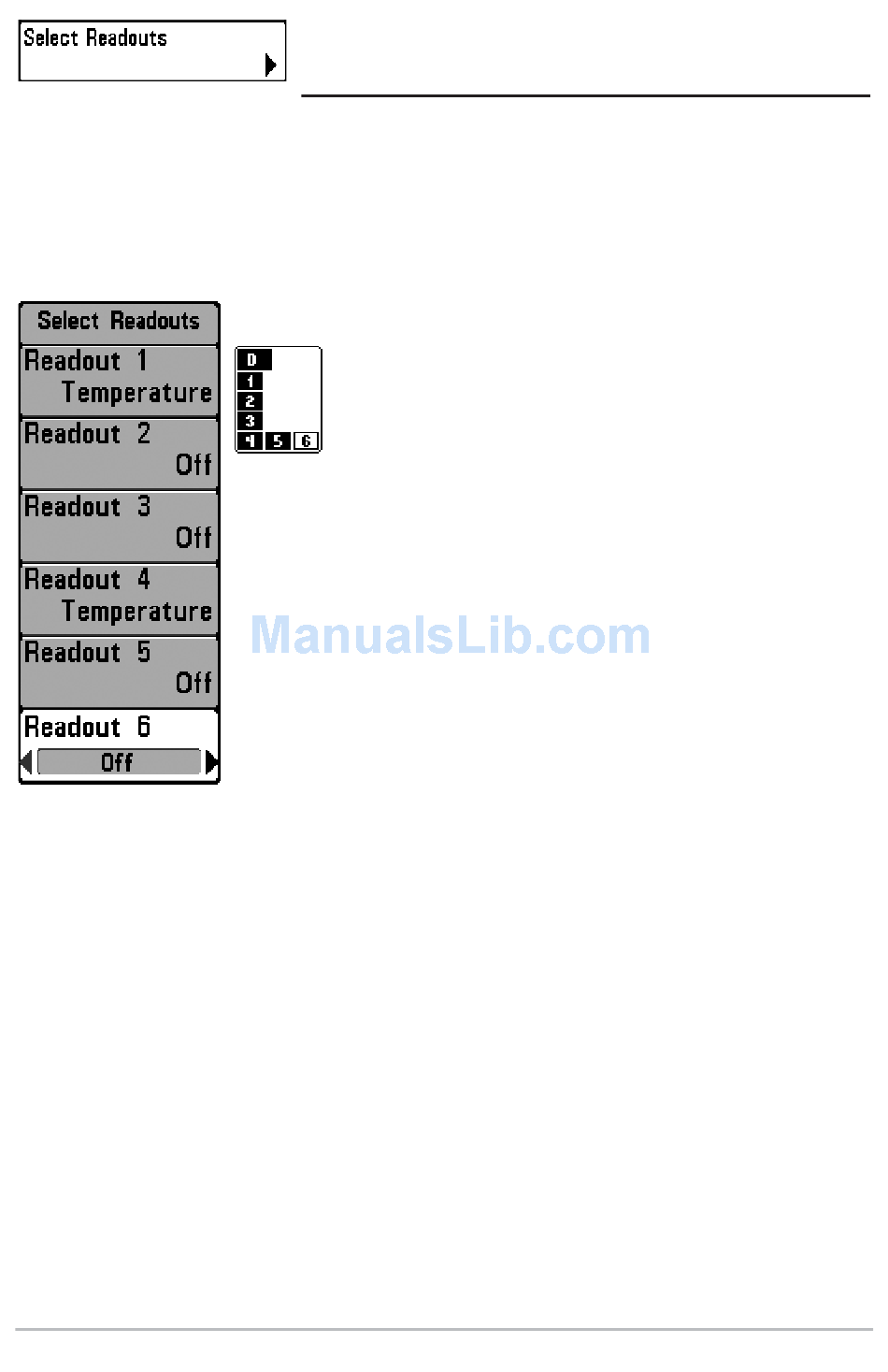

Select Readouts
Select Readouts
(Advanced: 3D and 2D Sonar Views Only)
Data windows can display readouts from supported
accessories such as Temp/Speed. Each data window
can either be empty or contain one of the following:
- Speed (will be displayed if a Temp/Speed
Accessory is attached and the paddlewheel has
moved at least once, or if a GPS Receiver is
connected)
- Temperature
- Triplog (will be displayed if a Temp/Speed Accessory
is attached and the paddlewheel has moved at least
once, or if a GPS Receiver is connected)
- Voltage
- Water Speed (will only be displayed if a
Temp/Speed Accessory is attached and the
paddlewheel has moved at least once). Water Speed
is not available with a GPS receiver.
48
