Summary of Contents for Energy TV3110

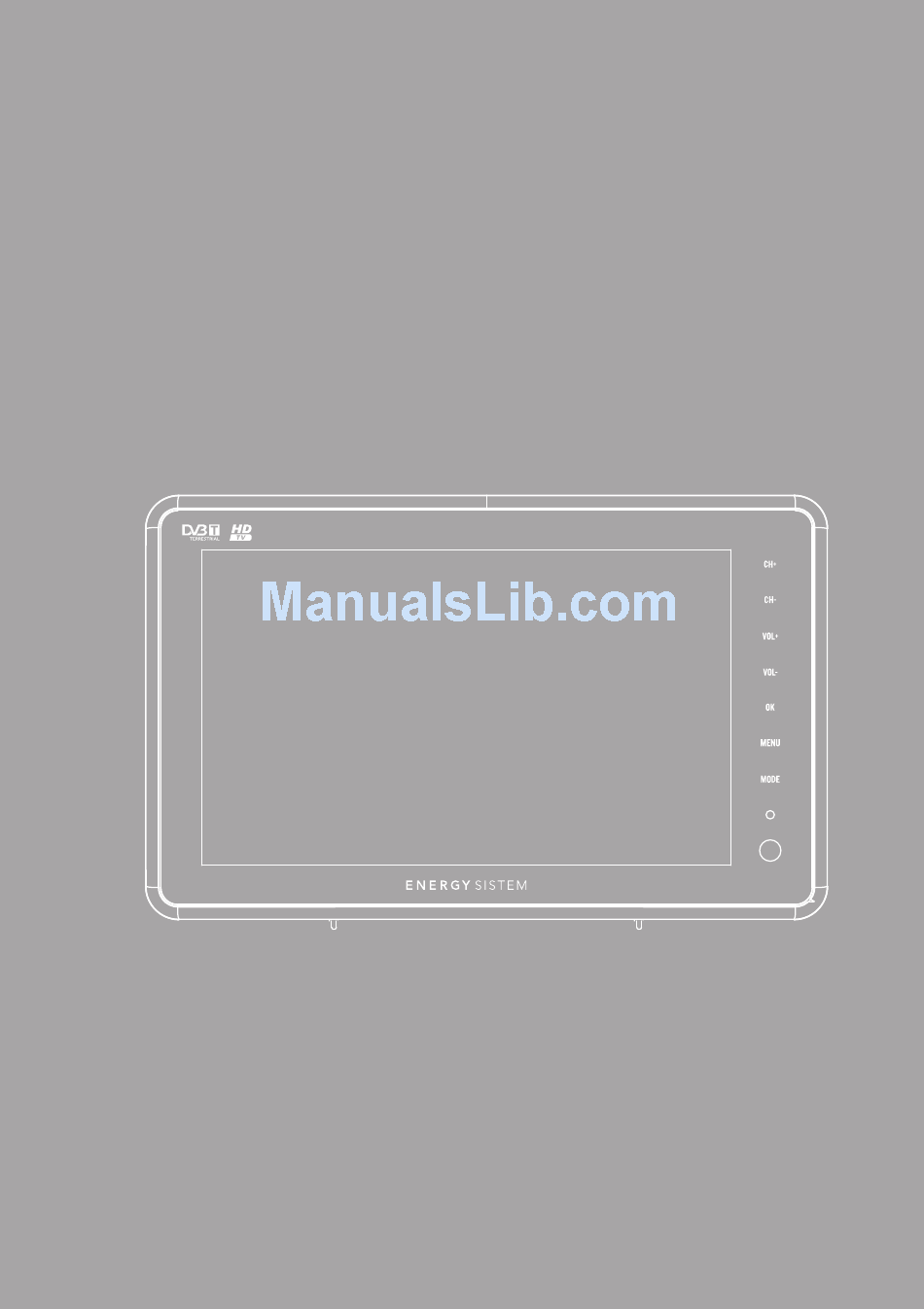

- Page 1 User manual...
-
Page 3: Important Safety Instructions
Keep this information in a safe place for future reference. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. WaRNINg: To reduce the risk of fire or electric shock, do not expose your TV3110 HDTV to rain or moisture. Safety Considerations ... -
Page 4: General View
Never dispose of batteries in a fire or with other household waste. Check with your local authority for disposal regulations. Cleaning ALWAYS turn off your TV3110 HDTV before cleaning it. Do not use liquid or aerosol cleaners. Clean your TV3110 HDTV with a soft, damp (not wet) cloth. 3. geNeRaL VIeW... - Page 5 10’’LED SCREEN. HDMI OUTPUT JACK: This output connects to a HDMI in device. USB JACK: Used to connect an external device, play files or make DVB-T broad- casting recordings. POWER SWITCH (ON/OFF). DC IN 9V: Used to connect the 9V DC adapter. ANCHOR POINTS FOR WALL MOUNTING.
-
Page 6: Remote Control
4. ReMOTe CONTROL 16 15 4.1. Button descriptions 0-9: To change the channel and to select individual menu options. ON/STANDBY: Press to turn on the device or to change to Standby mode. MODE: Press this button to switch display mode: 4:3LB, 4:3PS,16:9 PVR: Record programs of TV or Radio Mute: Press once to turn the sound off/on (mute control). -
Page 7: Installing The Batteries
►► |: Play next file/chapter. ◄◄ : Play previous file/chapter. ►► : Fast forward the video playing. ◄◄ : Fast rewind the video playing. PLAY/PAUSE: Starts, resumes or pauses the current media playback. ▲ : Move up in the menus and change to the next channel in viewing mode. ▼... -
Page 8: Using The Remote Control
4.3. Using the remote control To use the remote control, point it towards to the IR receiver. The remote control range is 4 metres or less within a ± 30° angle from the remote sensor. If the remote’s battery is low, the remote may not function properly, so replacing the battery immediately is recommended. - Page 9 The TV unit is supplied with a telescoping antenna that will provide good reception in most situations. Be sure to keep the TV stationary when trying to receive a signal. Any movement of the TV can result in loss of the digital signal. Please pull the Antenna just like the figure shows.
-
Page 10: Powering On The System
Also, make sure you disconnect all the equipments from the mains supply before the connection. 7. POWeRINg ON THe sYsTeM After all connections have been made properly, you are ready to use your TV3110 HDTV. Make sure the receiver is connected to the Main Power. - Page 11 Once channel tuning is complete, you are now ready to watch TV. 9. UseR INTeRFaCe BasIC OPeRaTION If the database has already got TV or RADIO programs saved, the system will conti- nue with the program it was playing before it was powered off. Press to switch to the previous or next program.
- Page 12 press the FAVOURITE button on the Remote Control and select DISABLE the heart-shaped symbol disappears. To confirm and exit the Menu, press the EXIT key. View Favourite Program When watching TV, press the Favourite button and the Favourite Menu will appear.
- Page 13 Press the YELLOW button to disable the locked program. To view the locked program, you will be require to enter either the default pas- sword '000000' or your last set password. 9.1.2. ePg (electronic Program guide) The EPG is an on-screen TV guide that shows scheduled programs seven days in advance.
-
Page 14: Channel Search
9.2.1. Con / Bri / sat Access to adjust the contrast, brightness and saturation of the screen. 9.2.2. a spect ratio You must set the display format to either 4:3 PanScan, 4:3 Letter Box,16:9 Full Screen or Auto to get the maximum display when watching TV. ... - Page 15 9.3.1. auto search: Search and install all channels automatically. This option overwrites all preset channels. Select [Auto Search] and press OK or RIGHT to start channel search. To cancel channel search, press EXIT. 9.3.2. Manual search: Install new channels manually. This option adds new channels without changing the current channels list.
- Page 16 9.4.1. Time offset Select auto or manual for GMT offset adjustments. 9.4.2. Country Region Select the Country Region when [Time Offset] is set to Auto. 9.4.3. Time Zone Select the Time Zone Offset when [Time Offset] is set to Manual. 9.4.4. s leep If this setting is ON, a message will pop up after your preferred time to inform you, that the device will go into sleep mode.
- Page 17 9.6. system setting To access the Menu, press MENU and select [System]. The menu provides options to adjust the system settings. Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the Menu. 9.6.1. Parental guidance You can restrict access to channels that are unsuitable for children.
- Page 18 9.7.1. Multimedia From the multimedia menu you can access information stored in an external device connected via USB. When a USB devices is attached you can select from the Music, Photo, Movie or PVR options in this menu using the RIGHT/LEFT keys and OK to select.
- Page 19 ≥ [Green]: Displays Subtitle in green font. ≥ [White]: Displays Subtitle in white font. ≥ [Black]: Displays Subtitle in black font. Note: We cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.
- Page 20 10.2. sCHeDULeD ReCORDINg: You can also schedule a recording, or tune into the channel selected when you set. For recording / viewing of a desired program perform the following steps: 10.2.1. Manual Reservation Recording Press “Blue” key to enter the Schedule mode and open PVR booking menu. Then press “red”...
- Page 21 11. TROUBLesHOOTINg If you experience problems with your TV3110 HDTV or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible cause What to do Power is not connected or...
-
Page 22: Technical Specification
12. TeCHNICaL sPeCIFICaTION Item Specification Specificaction RF in IEC 169-2 female connector Stereo headphones 3.5mm jack Connectors 2.0 (only Host) Max. USB capacity for recording 16GB HDMI Up to 1080i VHF: 177.5 - 226.5 MHz Input Frequency UHF: 474 – 858 MHz RF Input Level -20 ~ -78 dBm Tuner... -
Page 23: Warranty Procedure
13. WaRRaNTY Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase. The warranty period is 36 months from the date of purchase for your portable multimedia TV. 14. WaRRaNTY PROCeDURe Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions). -
Page 24: Declaration Of Conformity
NIF: A53107488 We declare under our own exclusive responsibility that the product: Energy Sistem® Portable Multimedia TV Energy™ LED TV3110 Black Is in compliance with the essential directives, norms and standards of the European Union 89/336/EEC (EMC Directive). Manufacturing country:...
