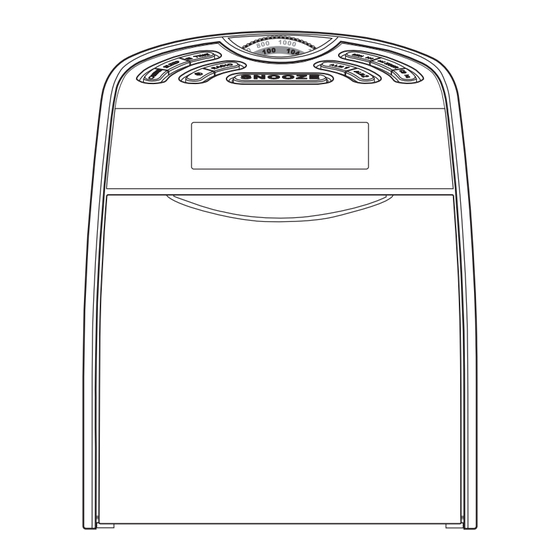

Audiovox CD1120 User Manual

AM/FM Clock Radio with CD Player
Model No.: CD1120
User Manual
SAFETY PRECAUTIONS
This product contains a low
power laser device.
WARNING:
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.
• TO AVOID ELECTRICAL SHOCK, DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL
ONLY.
• THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBjECTS FILLED
WITH LIQUID, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
FCC Information
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Warnings:
• The apparatus and AC adapter shall not be exposed to dripping or splashing and that no objects filled with liquids, such
as vases, shall be placed on apparatus and AC adapter.
• To reduce the risk of fire or electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified service personnel.
• The AC adapter is used as disconnect device and it should remain readily operable during intended use. In order to
disconnect the apparatus from mains completely, the AC adapter should be disconnected from the mains socket outlet
completely.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• Avoid exposure to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock.
Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block the ventilation holes.
• Should any objects or liquids fall into the unit, unplug the unit and have it checked by qualified personnel before operating
it any further.
• When cleaning the casing, use a soft cloth dampened with a mild detergent solution. Never use abrasive cleansers or
chemical solvents.
- 1 -
CD1120 for AUDIOVOX English IB.indd 1
SAFETY PRECAUTIONS
On Operation
Do not turn up the volume while listening to your iPod with no audio signals or very low level inputs. If you do so, the
speakers may be damaged when the peak level of the sound is played.
On Use
Never use the unit where it would be subject to:
- Heat sources such as radiators or air ducts.
- Direct sunlight.
- Excessive dust.
- Moisture or rain.
- Mechanical vibration or shock.
- Uneven surface.
• Do not place any heavy objects on top of the unit.
• When the unit is used with an AC power adapter, do not wrap the unit in a cloth, blanket, etc.. If you do so, the
temperature inside and outside the unit may rise considerably, resulting in malfunctioning of the unit.
• If the unit is brought directly from a cold to a warm location, or is placed in a very damp room, the moisture may
condense on the lens inside the unit. Should this occur, the unit will not operate. In this case, remove the disc and
leave the unit in a warm place for several hours until the moisture evaporates.
• For the unit to operate at its best, it should not be subject to temperatures below 41°F (5°C) or above 95°F (35°C).
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When
a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightening storms or when unused for a long period of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
LOCATION OF CONTROLS
Unit
1 10 11
12
2
3 13
4 14
5 15
6 16
7
8
17
18
9
19
20
21
22
1 (Stop)/TIME Button 12 (Next)/MIN Button
2 SLEEP Button 13 (Play/Pause) /CD Button
3 14 ALM 2 (Alarm 2) Button
(Repeat)/RANDOM Button
4 (Standby/On) Button 15 ALM 1 (Alarm 1) Button
5 RADIO Button 16 SNOOZE Button
6 LCD Display 17 Alarm Function Selector (BUZZER/RADIO/CD)
7 OPEN Handle 18 BAND (AM/FM) Selector
8 CD Door 19 VOL (Volume) Control
9 Battery Compartment (Within the CD Door) 20 (Headphone jack)
10 TUNING Knob 21 DC IN 9V jack
11 (Previous)/HOUR Button 22 FM ANT. (FM Antenna)
Display Indicator
Hour Digits Minute Digits
PM
Indicator
Alarm 2
Alarm 1
Indicator
Indicator
Repeat One (r 1)/Repeat All (r A)/ Track No./Play Indicator
RANDOM (r d) Indicator
- 2 -
POWER SUPPLY
USING THE AC ADAPTER
Using an AC adapter other than the one supplied with the unit may damage
the unit. This AC adapter operates on AC 120V~60Hz.
CAUTIONS:
• Before use, make sure the rated voltage of the adapter matches your local
voltage.
• The included AC adapter is for use with this unit only. Do not use it with other
equipment.
• If you are not going to use the unit for a long time, disconnect the AC adapter from the wall outlet.
• Whenever the AC adapter is plugged in to a wall outlet, electricity is running through the unit, even when the power
switch is turned off.
POWER BACK-UP DURING POWER INTERRUPTION
Be sure to install a 9V battery (not included with this product) for the power back-up function.
Open the CD door and insert one "9V" battery into the battery compartment. If the AC power supply is
interrupted, the battery supplies power to keep the clock operating and the alarm times set.
• During power interruption, the clock function is maintained although the product's display will be off.
The alarm sound will not come on.
• This battery is only for clock operation and alarm memory during power interruption. You cannot
listen to the radio with the battery.
WHEN TO REPLACE THE BATTERY
To check the battery condition, unplug the AC adapter from the wall outlet and plug it in again after a
few minutes. If the displayed time is incorrect, replace the battery
with a new one.
Cautions:
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Be sure to install the battery before unplugging the AC adapter.
• When the unit is left unplugged for a long time, remove the battery to avoid undue battery discharge and unit damage
from battery leakage.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
VOLUME ADJUSTMENT
TO ADJUST THE VOLUME
Adjust the VOL control to obtain the desired volume.
FOR PERSONAL LISTENING
Connect headphones ( Ø3.5mm stereo mini plug) to the PHONES jack. Adjust the VOL control to
obtain the desired volume.
Portable Cart Warning
When headphones are connected, the speakers are automatically disconnected.
Warning: Excessive sound pressure from earphone and headphones can cause hearing loss.
CLOCK SETTING
Setting the clock can only be done in STANDBY mode.
• If the unit is plugged in with the supplied AC adapter and the unit is in standby mode, the clock digits will blink.
1. Press the TIME button, the hour and minute digits blink.
2. Press the HOUR button to adjust the hour digits.
3. Press the MIN button to adjust the desired minutes then press the TIME button once to confirm.
• 12:00 PM = NOON time. The PM indicator will light up.
LISTENING TO THE RADIO
1. Press the button to turn on the unit and the display will show "
2. Press the RADIO button to radio mode.
3. Select a band (AM/FM).
Note: After listening to the radio, press the
TO IMPROVE THE RADIO RECEPTION
FM: Fully unwind the antenna wire. Extend the antenna wire and place it in the position that sounds best.
AM: Rotate the unit horizontally until orientation with best reception is found.
Note: Do not connect the FM antenna wire to an outside antenna.
To AC
outlet
AC adapter
To "DC IN 9V" jack
".
4. Tune in to a station.
button to turn the radio off and the display will show " ".
- 3 -
