Console Cable Pinouts

The console cable has an RJ-45 male connector on one end and a DB-9 female
connector on the other end. Table 2-16 describes the mapping of the RJ-45 to
DB-9 pins.

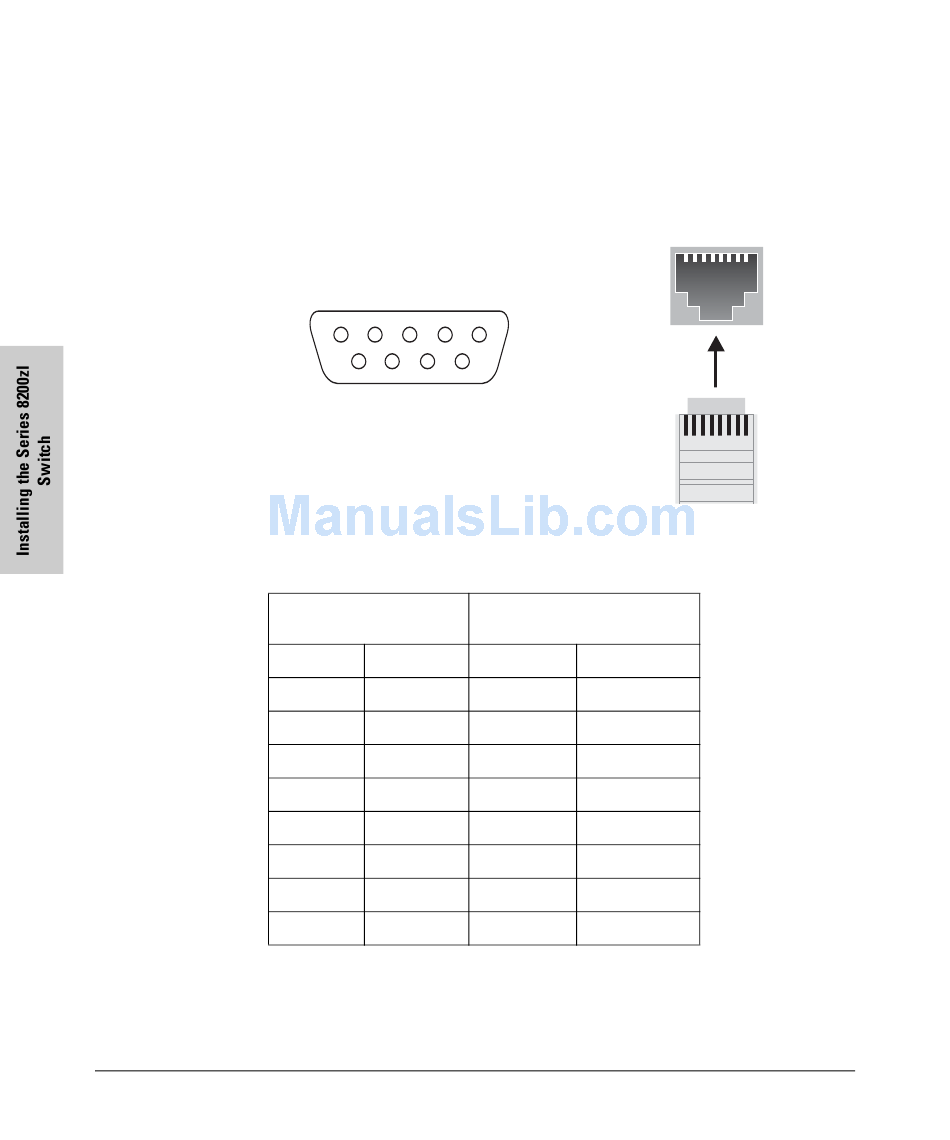

Figure 2-15. RJ-45 to DB-9 pinouts
Table 2-16. Mapping of RJ-45 to DB-9
RJ-45 (Signal reference from

Telnet Console Access

To access the switch through a telnet session, using an Ethernet port not the
Console port, follow these steps:
2-30
5 4 3 2
8 7
9
Chassis
RTS 1
TX_Debug 2
TXD 3
GND 4
DCD 5
RXD 6
RX_Debug 7
CTS 8
1
6
DB-9 (Signal reference from PC)
8 CTS
6 DSR
2 RXD
5 GND
1 DCD
3 TXD
4 DTR
7 RTS
9 RI
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
