Installation Instructions - GE SCB2000 Technical Service Manual

Before you begin — Read these instructions
completely and carefully.
• Save these instructions for local inspector's use.
• Observe all governing codes and ordinances.
Note to Installer: Be sure to leave these
instructions with the consumer.
Note to Consumer: Keep these instructions with
your Owner's Manual for future reference.
WARNING: This appliance must be properly
grounded. See "Electrical Requirements" in this
section.
Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under the GE Appliance
Warranty. See the Owner's Manual for warranty
information.
Use this appliance only for its intended purpose.
Caution: This oven should be installed by a
qualified installer or service technician.
• Never use the oven for warming or heating a
room. Prolonged use of the oven without adequate
ventilation can be hazardous.
Check with local utilities for electrical codes that
apply in your area. Local codes vary. Installation of
electrical connections and grounding must comply
with applicable codes. In the absence of local
codes, the oven should be installed in accordance
with National Electrical Code ANSI/NFPA 70 or
latest edition.

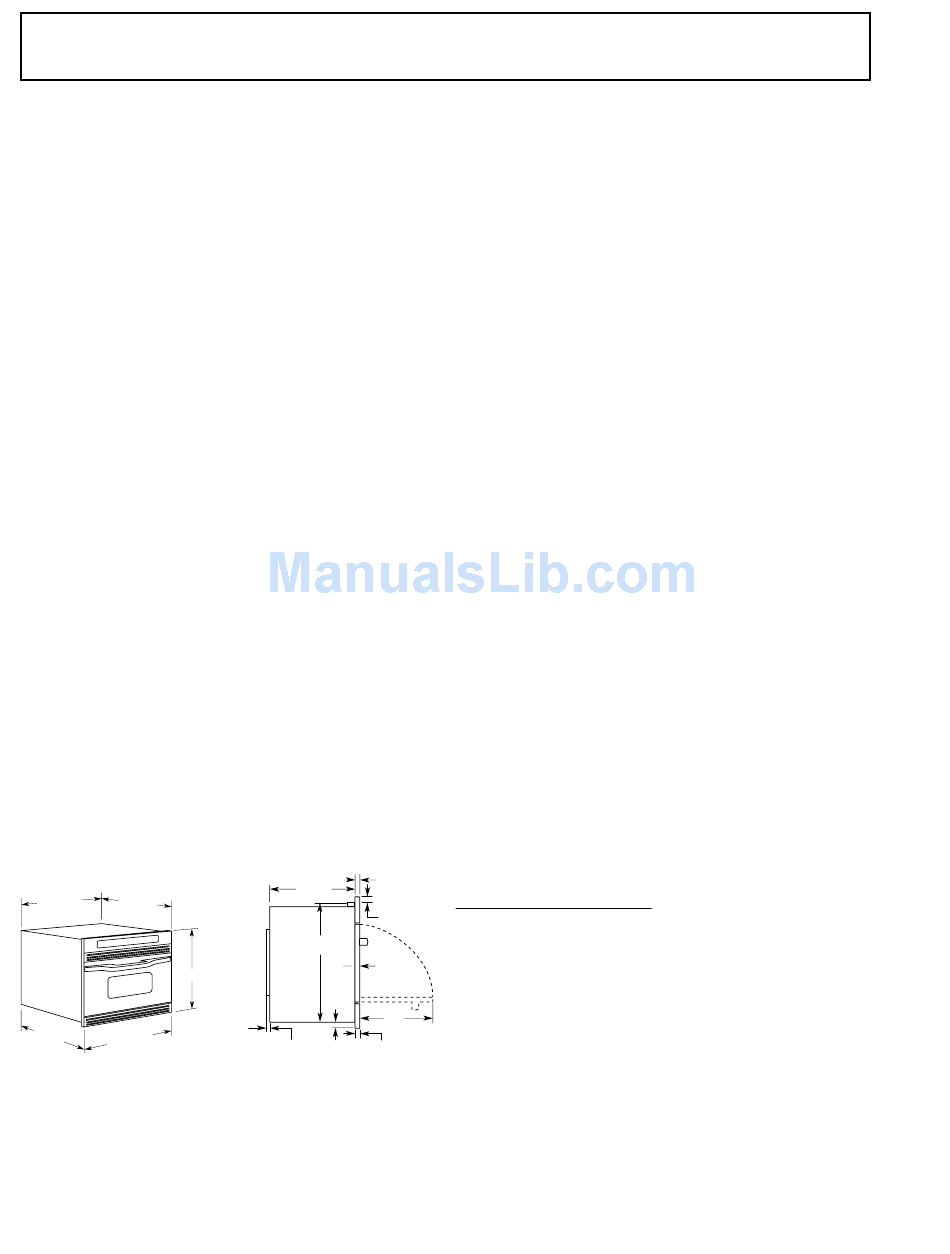

Product Dimensions
15"
(Recessed
Portion)
28-7/16"
21-7/8"
15-27/32"
29-25/32"
GEA00354

Installation Instructions

27/32"
14-1/8"
9/16"
20-27/32"
27/32"
13"
7/8" 15/32" 11/16"
GEA00355
– 4 –
Advance Planning
• This oven may be installed directly into a wall
or wall oven cabinetry, 30 in. minimum width.
• The front surface of the oven will be nearly
flush with surrounding cabinetry doors.
• This oven can be installed over any GE single
electric built-in oven or a single GE electric
built-in warming drawer.
• This oven must be installed at least 36 in.
above the floor.
WARNING: For personal safety, this oven cannot
be installed in a cabinet arrangement such as an
island or peninsula.
Caution: This oven is not approved for use above
another built-in speedcook oven, side-by-side, or
under-the-countertop installations.
• Cabinets installed adjacent to wall ovens must
have an adhesion specification of at least 194°F
temperature rating.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
Tools and Materials Required
• 2 x 4 or 2 x 2 lumber for runners
• Saw
• Level
• Drill and 3/32-in. bit
• Phillips screwdriver
• Wood screws and adhesive or other hardware
for installing runners or shelf to support oven
Electrical Requirements
• Junction box
• Electrical cable - 3-conductor or 4-conductor
wire, as required by local codes
• UL-listed conduit connector
• Wire cutters and wire stripper
