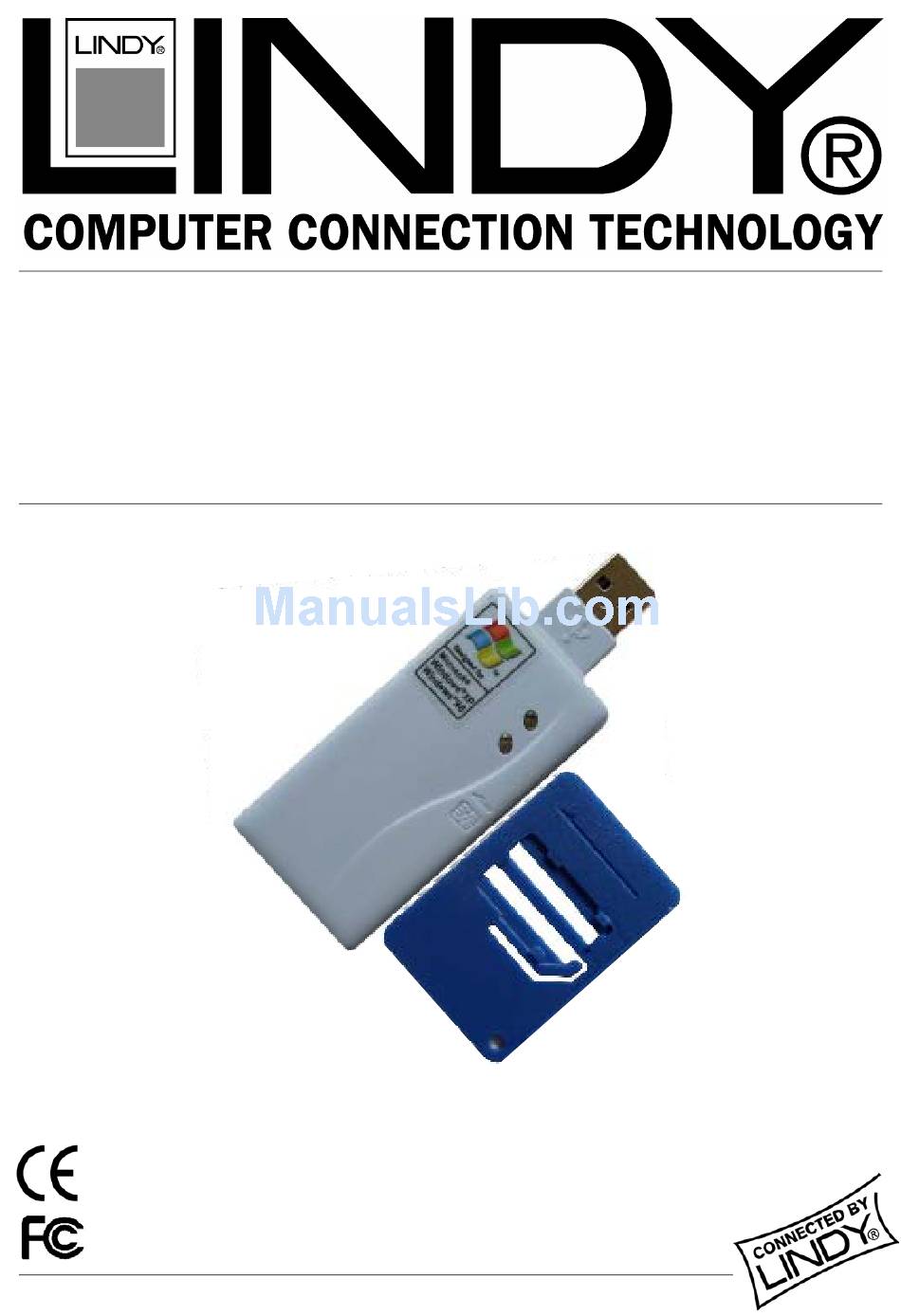

- Page 1 USB Chipcard Reader with SIM Card Adapter User Manual English LINDY No. 42928 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (March 2005)
- Page 2 Introduction Thank you for purchasing the LINDY Card Reader. This product allows you to read the contents or your mobile phone’s SIM card and use the supplied software to edit text messages and phone book entries. Package Contents LINDY USB Chipcard Reader...
- Page 3 Installation Step 1 - Slide your SIM card into the Adapter Step 2 - Insert the SIM Card Adapter into the Reader Step 3 - Plug the Reader into an available USB port on your computer.
- Page 4 Driver Installation The following illustration shows the installation process under Windows XP. The procedure is similar for Windows 98SE, ME and 2000. 1. After you have plugged the Card Reader into your computer Windows will detect it and the following screen will be displayed.
- Page 5 4. Depending on your operating system you may need to install the Microsoft Smart Card Base Components. Click Accept to continue the installation: 5. You will be prompted to restart your computer, click Yes:...
- Page 6 Diagnostics Once the computer has restarted you can verify correct installation by launching the diagnostics application – EZ100PU Diagnostics. Select: Start > All Programs > EZ100PU Utility > EZ100PU Diagnostics The window below will appear. Click the Diagnostic button at the top of the window to run diagnostics.
- Page 7 2. When the InstallShield Wizard screen appears click Next: 3. At the next screen enter your details and click Next: 4. Click Next to install the program to the default folder or Change to install to a different folder:...
- Page 8 5. Review the installation settings and click Install to proceed: 6. The files will be installed: 7. The installation process is complete. Click Finish:...
- Page 9 SIM Card Editor Launch the SIM Card Editor software by double-clicking the icon on the desktop You will see the following screen: To learn how to use the SIM Card Editor software, select the Help option on the menu bar. Here you will find a comprehensive instruction guide.
- Page 10 Check the SIM card is correctly installed in the SIM Card Adapter Ensure the SIM Card Adapter is fully inserted into the Card Reader Try using a different SIM Card If you encounter any other problems or need assistance please contact LINDY technical support. See our website for details: www.lindy.com...
- Page 11 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. LINDY No. 42928 Edition March 2005 www.lindy.com...
