Five-band graphic equalizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual

Advertisement

Table of Contents
loading

Summary of Contents for Mesa/Boogie Boogie

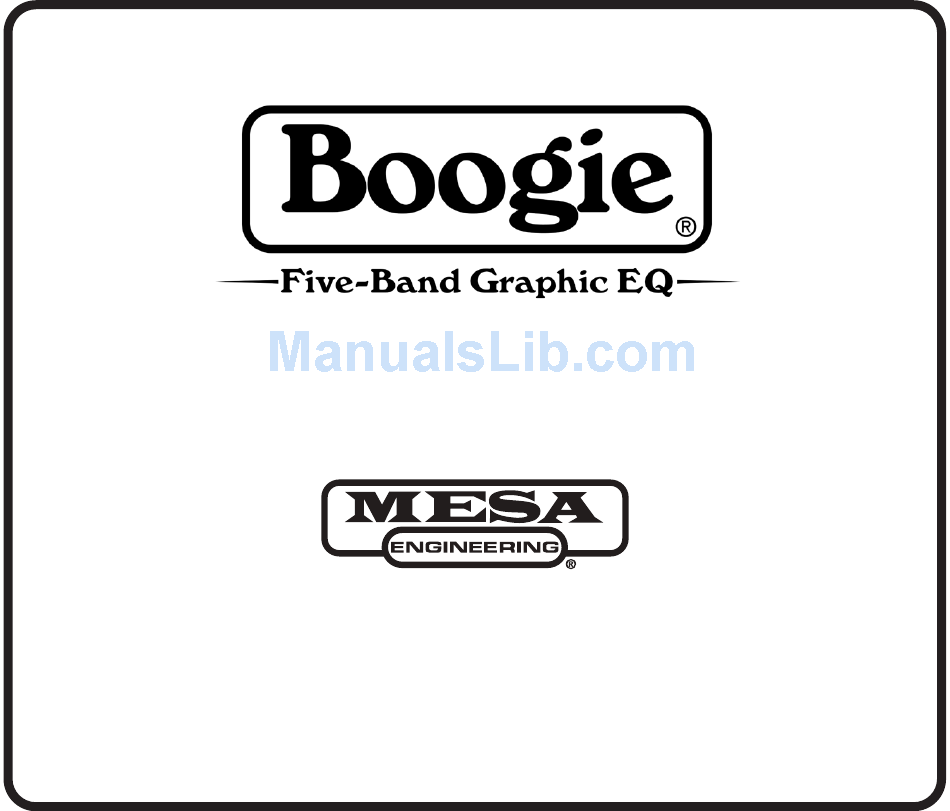

  • Page 1 Owner’s Manual...

  • Page 2: Safety Precautions

    “V-Curve” became a new standard... the “other sound” (non-Brit) in Hard Rock and Metal. Since then MARK III™, Mark IV™ and Mark V™ Boogie’s all have their place in Rock history through iconic Artists and the Graphic EQ has been an integral part of their sound.

  • Page 3: Features And Controls

    Input or in your Effects Loop, it gives you a footswitchable Tone option you can employ on demand. And when it’s not engaged, your sound is pure and unaltered thanks to the Hard Bypass Feature. The Boogie® Five-Band Graphic runs on one 9 Volt battery (as the mA draw of this pedal is only 18mA) and can also be powered by a standard DC Wall Transformer.

  • Page 4: Input Level

    EQ Sliders are also set at their center detent. Between these two LEVEL controls you should have more than enough control over the signal to adapt to most any application you wish to use the Boogie ®...
  • Page 5 BYPASS This footswitch is pretty self-explanatory... it “hard” bypasses the Boogie Five-Band Graphic. It removes all circuitry from your signal path and uses a piece of wire from the INPUT to the OUTPUT. It is the same as having a very short piece of wire in line with your guitar’s signal cable.
  • Page 6 you know you will not be using battery power for an extended period—for example, if you are mounting the unit to your pedal board permanently - it is wise to remove the battery to avoid possible damage from long-term battery corrosion. This unit can operate on either a 9-Volt battery or a standard 9-Volt “wall-wart”...

  • Page 7: Specifications

    SPECIFICATIONS • Dimensions: (W/D/H): 5.78” x 4.76” x 2.30” (146.8mm x 121mm x 58.4mm) • Weight: 1.6lbs (725.7g) with battery, 1.5lbs (680.4g) without battery • True Bypass Switching • Battery Type: 9VDC (one) • Power Consumption (Current Draw): 9VDC/18mA • AC Adapter (Optional): Power Jack 2.1mm x 5.5mm, 9VDC with Negative Center (Regulated Recommended) •...
  • Page 8 CLASSIC V-CURVE...
  • Page 9 TIGHT MODIFIED V...
  • Page 10 SMOOTH SCOOP...
  • Page 11 MID-BUMP SOLO...
  • Page 12 ® ® 14/04/01...
