ZyXEL Communications NSA-220 Plus Support Notes

Ftp uploading is supported in nsa-220 plus
Hide thumbs Also See for NSA-220 Plus:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
NSA-220 Plus Support Notes
NSA-220 Plus
Support Notes
Revision 1.00
Sept, 2008
1
All contents copyright (c) 2008 ZyXEL Communications Corporation.

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications NSA-220 Plus

Summary of Contents for ZyXEL Communications NSA-220 Plus

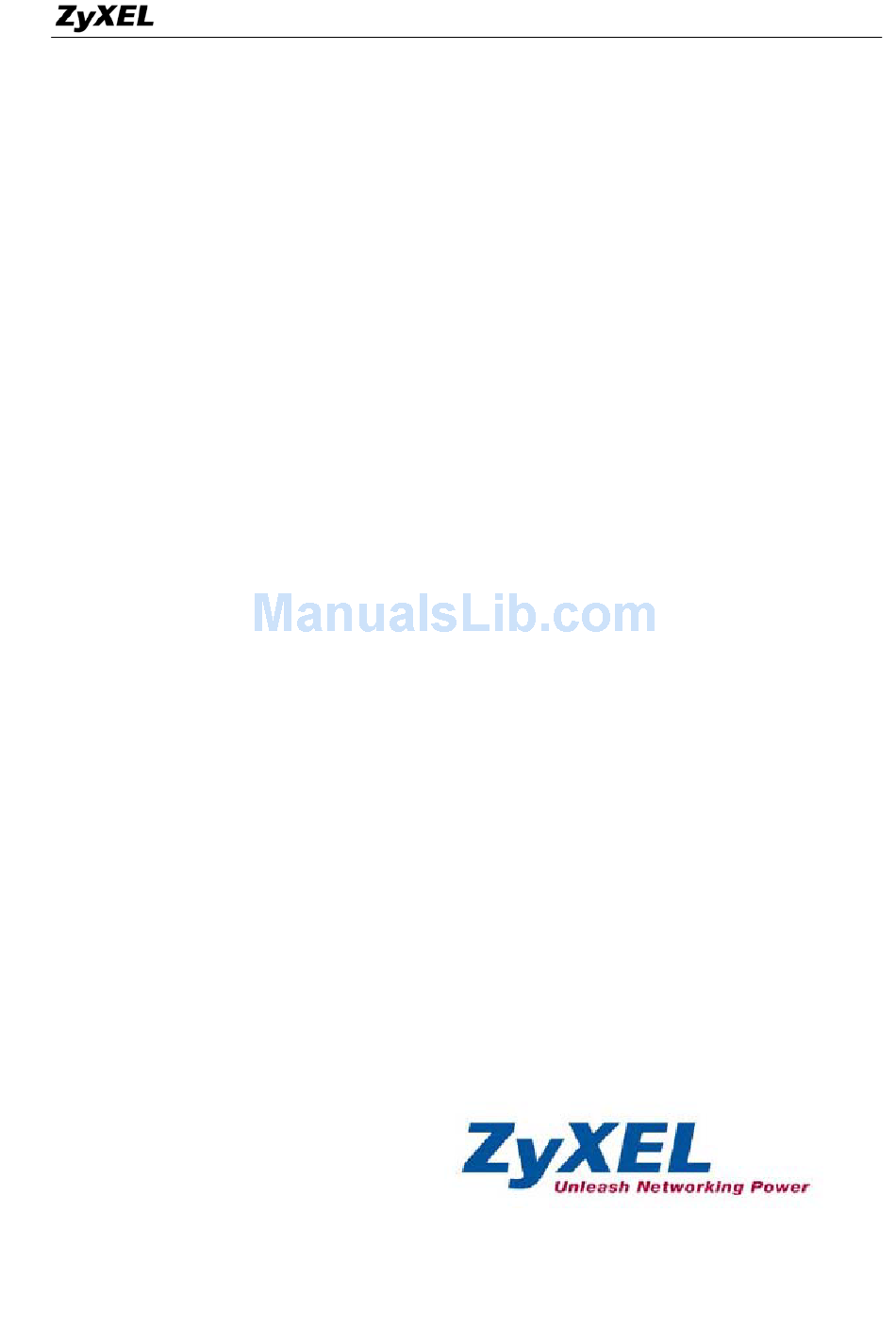

  • Page 1 NSA-220 Plus Support Notes NSA-220 Plus Support Notes Revision 1.00 Sept, 2008 All contents copyright (c) 2008 ZyXEL Communications Corporation.

  • Page 2: Table Of Contents

    10. How does it work after pressing copy button in the front panel of NSA-220? ..30  11. What is the difference between "Scan" and "Repair" on NSA-220 PLUS? ... 31  12. I do not want the Hard Disk idle time shutdown feature, how can I disable it? ..31 ...
  • Page 3 19. Will all files in the monitored folder(s) be uploaded to Flikcr? ......32  20. Will all files in the monitored folder(s) be uploaded to YouTube? ......32  21. Does auto-pload function can be activated for Flickr and YouTube at the same time? 33  All contents copyright (c) 2008 ZyXEL Communications Corporation.

  • Page 4: Key Applications

    NSA-220 Plus Support Notes Key applications This document describes the detail configuration in some of new features in NSA-220 PLUS. In final part, FAQ, you may also find more information in user guide or knowledge base in ZyXEL service portal.

  • Page 5: Auto-Upload Pictures To Flickr

    Check the result in Flickr website. Check the system log in NSA-220 PLUS. First, log into the web GUI page in NSA-220 PLUS, go to \Auto Upload\Flickr/YouTube. Then, enable Flickr service as following figure. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 6 Flickr account information. After configuring the account information, system will warn you that the connection to Flickr. In the following popup browser, you need to authorize the connection between your account and your NSA-220. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 7 NSA-220 Plus Support Notes The following figure shows that you agree this link after press “OK” button. After allowing the agreement in Flickr page, please also press the “Get ready” button in NSA-220 PLUS. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 8 In his case, we can see the storage status in your Fickr account. Afterwards, users need to set which folder(s) in your NSA-220 PLUS will be monitored and uploaded to Flickr website. In this example, we are going to set folder named as “...
  • Page 9 PLUS will upload any new added pictures in the folder you specify after fifteen minutes since you press apply button. Please specify the given folder that NSA-220 PLU will watch and upload the pictures after applying configuration. PLEASE REMEMBER TO PRESS APPLY BUTTON. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 10 After fifteen minutes, NSA-220 PLUS will upload new added photos to Flickr website. IN this example, we can see one picture has been uploaded to Flcikr website.

  • Page 11: Auto-Upload Video Files To Youtube

    NSA-220 Plus Support Notes Users also can check the system log in NSA-220 PLUS to see the status of auto-upload. In the following figure, we can see the picture is queued and uploaded to website. Tips: Please make sure you configure the setting first and then put the pictures in the folder(s) that NSA-220 PLUS will monitor.
  • Page 12 Check the result in YouTube website Check the system log in NSA-220 PLUS. First, use your gmail account to login in YouTube website. In the meanwhile, please enable the auto upload service in YouTube in NSA-220 PLUS. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 13 Here, uses need to specify which folder(s) will be monitored and uploaded to YouTube account. Additionally, users can assign the grace period time to begin the uploading and categorize the video files in YouTube. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 14 NSA-220 Plus Support Notes Here, we assign the “2008_Formosa” to be monitored by NSA-220 PLUS. PLEASE REMEMBER TO PRESS APPLY BUTTON. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 15 Please notice that only the given file format will be uploaded to YouTube website. This includes 3gp, asf, asx, dif, dv, dl, fli, gl, mov, movie, mp4, mpe, mpeg, mpg, ogv, qt, wm, wmv, wmx, wvx. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 16 YouTube website after grace period time. In the following figure, we can see the status in YouTube, it shows that file is uploading to YouTube website now. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 17 NSA-220 Plus Support Notes Also, users can check system log to see the detail status of auto upload. The following figure shows that one video file named as “SAMPLE-DIAMOND.avi” is uploaded to YouTube website. All contents copyright (c) 2008 ZyXEL Communications Corporation.

  • Page 18: Auto-Upload Files To Ftp Server(S) (Ftp Uploadr)

    Specify the grace period and other options in auto upload function. Move files to the folders you specify in previous step. Check the result in FTP server Check the system log in NSA-220 PLUS. First, enable the “FTP Uploadr” under application\Auto Upload. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 19 Next, please assign the FTP server information that users want to upload their files. Users also can press the “Test connection” to see if the FTP configuration is correct. Please remember to press apply button to activate your setting in FTP. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 20 Here, users need to specify the monitored folder and grace period in FTP auto uploadr. In the following example, we can see the folder named as “2008_Formosa” is assigned to be monitored by NSA-220 PLUS. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 21 The following figure shows that one text file named as “TES_FTP.txt” is added in NSA-220 PLUS. The following figure shows that one text file named as “TES_FTP.txt” is is uploaded to FTP server. All contents copyright (c) 2008 ZyXEL Communications Corporation.

  • Page 22: Power Management

    In the following example, there are two schedules in the control schedule list. First rule is to set NSA-220 PLUS regularly power off on 23:00 every Fridays for future 52 weeks. The second rule is to set NSA-220 PLUS power on 00:00 every weekday.

  • Page 23: Power Resume

    2.2.1 Keep former status In this function, there are three options to be set in NSA-220 PLUS. The first one is ‘Keep Former Status.’ In other words, NSA-220 PLUS will back to the status before power outage. For example, NSA-220 PLUS will keep power off if it is power off before power shortage.

  • Page 24: Always Power On

    NSA-220 PLUS running. 2.2.3 Always power off The final one is ‘Always Power Off.’ NSA-220 PLUS will keep the status of ‘ power off’ even it encounters power shortage. For example, NSA-220 PLUS will always keep power off if any power outage happens.

  • Page 25: Network Service

    The benefit for users can save the cost of modem. PPPoE To enable this service, users also need to provide account information for NSA-220 PLUS to dial up and then can link to Internet after successfully dialing up. All contents copyright (c) 2008 ZyXEL Communications Corporation.

  • Page 26: Link Capture

    IE and then users will see the option of “Send to NSA.” Afterwards, NSA will download the content of URL. Users can find the utility in the CD to install the link capture in their Internet Explorer. All contents copyright (c) 2008 ZyXEL Communications Corporation.
  • Page 27 NSA-220 Plus Support Notes At the time of writing, ZyXEL NSA-220 PLUS supports link capture feature in both of IE and Firefox. After choosing the kind of browser you want to install the link capture, press the execution file to begin.
  • Page 28 NSA-220 Plus Support Notes Users can see the new added option for NSA-220 PLUS while they right click the mouse.They can right click button to download the content of link. All contents copyright (c) 2008 ZyXEL Communications Corporation.

  • Page 29: Faq

    The internal file system used in NSA-220 PLUS is ReiserFS. 4. What is the file system supported in NSA-220 PLUS? The internal file system used in NSA-220 PLUS is EXT3. NSA-220 PLUS also recognizes the file system for EXT3, EXT2, NTFS, FAT16, and FAT32.

  • Page 30: Does Nsa-220\Nsa-220 Plus Support Jambo Frame? What Is The Benefit For Using Jambo Frame

    7. Does NSA-220\NSA-220 PLUS support Jambo frame? What is the benefit for using Jambo frame? Yes, NSA-220\NSA-220 PLUS support three kinds of Jambo frame, 4K, 8K and 9K. Once users activate Jambo frame setting in NSA-220\NSA-220 PLUS, then the transfer rate between NSA and another device will be faster than using normal traffic size (1518-byte).

  • Page 31: What Is The Difference Between "Scan" And "Repair" On Nsa-220 Plus

    12. I do not want the Hard Disk idle time shutdown feature, how can I disable it? By default, NSA-220 PLUS will shutdown its hard disks after 3 minutes of idle time. Users cannot change this feature by settings. The value can be set from 0 to 300. When users set the idle time as 0, it means that hard disk will never be idle even there is no activity in hard disk for a long time.

  • Page 32: Which Kind Of Audiofile Formats Are Supported By Nsa-220 Plus

    20. Will all files in the monitored folder(s) be uploaded to YouTube? No, NSA-220 PLUS will monitor the files with the extension of 3gp, asf, asx, avi, dif, dl, dv, fli, gl, mov, movie, mp4, mpe, mpeg, mpg, ogv, gt, wm, wmv, wmx, and wvx.

  • Page 33: Time

    NSA-220 Plus Support Notes 21. Does auto-upload function can be activated for Flickr and YouTube at the same time? Yes, there is no problem when users activate these two services together. All contents copyright (c) 2008 ZyXEL Communications Corporation.
