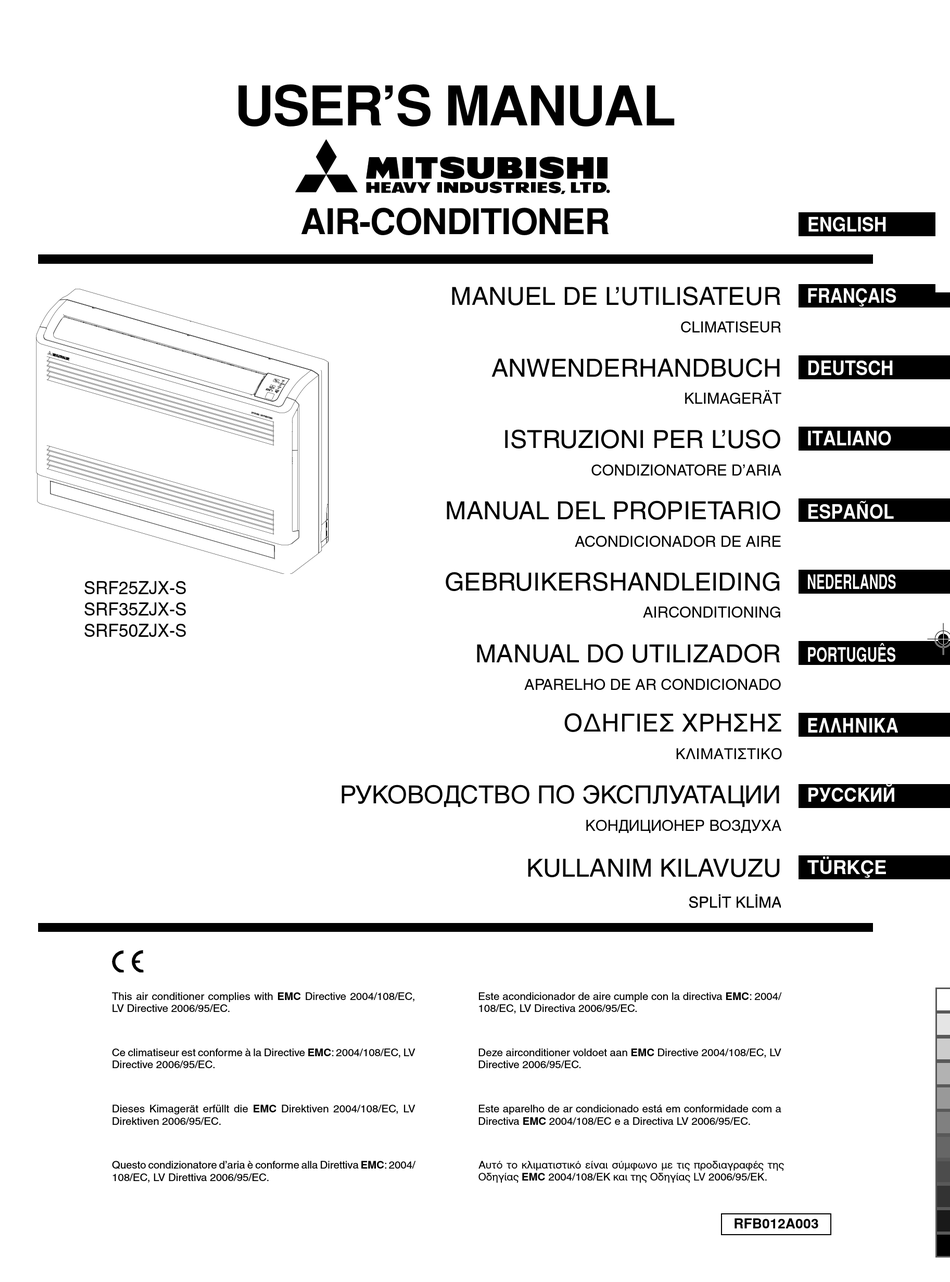

USER'S MANUAL
SRF25ZJX-S
SRF35ZJX-S
SRF50ZJX-S
This air conditioner complies with EMC Directive 2004/108/EC,
LV Directive 2006/95/EC.
Ce climatiseur est conforme à la Directive EMC: 2004/108/EC, LV
Directive 2006/95/EC.
Dieses Kimagerät erfüllt die EMC Direktiven 2004/108/EC, LV
Direktiven 2006/95/EC.
Questo condizionatore d'aria è conforme alla Direttiva EMC: 2004/
108/EC, LV Direttiva 2006/95/EC.
AIR-CONDITIONER
MANUEL DE L'UTILISATEUR
MANUAL DEL PROPIETARIO
GEBRUIKERSHANDLEIDING
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ANWENDERHANDBUCH
ISTRUZIONI PER L'USO
CONDIZIONATORE D'ARIA
ACONDICIONADOR DE AIRE
AIRCONDITIONING
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO
ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ
КОНДИЦИОНЕР ВОЗДУХА
KULLANIM KILAVUZU
Este acondicionador de aire cumple con la directiva EMC: 2004/
108/EC, LV Directiva 2006/95/EC.
Deze airconditioner voldoet aan EMC Directive 2004/108/EC, LV
Directive 2006/95/EC.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 2004/108/EC e a Directiva LV 2006/95/EC.
∞˘Ùfi ÙÔ ÎÏÈÌ·ÙÈÛÙÈÎfi Â›Ó·È Û‡ÌʈÓÔ Ì ÙȘ ÚԉȷÁڷʤ˜ Ù˘
√‰ËÁ›·˜ EMC 2004/108/EK Î·È Ù˘ √‰ËÁ›·˜ LV 2006/95/EK.
ENGLISH
FRANÇAIS
CLIMATISEUR
DEUTSCH
KLIMAGERA ¨ T
ITALIANO
ESPAN ˜ OL
NEDERLANDS
PORTUGUÊS
ΕΛΛΗΝΙΚΑ
ΚΛΙΜΑΤΙΣΤΙΚΟ
РУССКИЙ
TÜRKÇE
RFB012A003

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Heavy Industries SRF25ZJX-S

Summary of Contents for Mitsubishi Heavy Industries SRF25ZJX-S

  • Page 1 DEUTSCH KLIMAGERA ¨ T ISTRUZIONI PER L’USO ITALIANO CONDIZIONATORE D’ARIA MANUAL DEL PROPIETARIO ESPAN ˜ OL ACONDICIONADOR DE AIRE GEBRUIKERSHANDLEIDING NEDERLANDS SRF25ZJX-S SRF35ZJX-S AIRCONDITIONING SRF50ZJX-S MANUAL DO UTILIZADOR PORTUGUÊS APARELHO DE AR CONDICIONADO ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ ΕΛΛΗΝΙΚΑ ΚΛΙΜΑΤΙΣΤΙΚΟ РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ...

  • Page 2: Table Of Contents

    Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To get the best long-lasting performance, please read and follow this User’s Manual carefully before using your air-conditioner. After reading, please store the Manual in a safe place and refer to it for operational questions or in the event of any irregularities.

  • Page 3: Safety Precautions

    Safety precautions • Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the system. • The safety precautions are classified as “ DANGER” and “ CAUTION”. Precautions as shown in the column “ DANGER”...
  • Page 4 ❚ Safety precautions CAUTION Do not sit on the outdoor unit nor put After a long period of use, check the unit's Do not touch the aluminum fins on the anything on it. support structure from time to time. air heat exchanger. If the unit falls down or things drop If you do not repair any damage It may result in injury.

  • Page 5: Name Of Each Part And Its Function

    Name of each part and its function INDOOR UNIT Upper air outlet Air blows out of here. Up/down airflow direction adjustment flap Page 10 Left/right airflow adjustment louver Page 10 Unit operation switch Air lnlet panel Draws the indoor air. Refrigerant piping connection and electric wire Drain hose Drains water from the indoor unit.

  • Page 6: Unit Display Section

    Name of each part and its function Unit display section Unit ON/OFF button RUN (HOT KEEP) light (green) This button can be used for turning on/off the unit when remote • Illuminates during operation. control is not available. Page 6 •...

  • Page 7: Remote Control Handling

    Remote control handling The following cases signify exhausted batteries. Replace old batteries with new ones. Replacing the batteries • Receiving beep is not emitted when a signal is transmitted. • Display fades away. NOTE Pull out the cover and take out old batteries.

  • Page 8: Operation And Display Section For Remote Control

    Operation and display section for remote control Operation section FAN SPEED button OPERATION MODE select button Each time the button is pressed, the ■ Each time the button pressed, the ■ display is switched over in turn. display is switched over in turn. Page 8 Page 8 , 9 HI POWER/ECONO button...

  • Page 9: Auto Mode Operation

    AUTO mode operation ■ Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on. When the unit is not in AUTO mode: Press MODE button. Move the [ mark] to the (Auto) position. Point the remote control toward the air-conditioner, and Press the ON/OFF button.

  • Page 10: Cool/Heat/Dry/Fan Mode Operation

    COOL/HEAT/DRY/FAN mode operation Point the remote control toward the air-conditioner, and Press the MODE select button. Move the [ mark] to the required operation position. (Cool), (Heat), (Dry), (Fan) Press the ON/OFF button. Press the TEMP button. Press button for the preferred temperature. Standard Press the FAN SPEED button Airflow direction adjustment procedure.

  • Page 11: Airflow Direction Adjustment

    Airflow direction adjustment Adjusting airflow direction ■ Up/down direction can be adjusted with the AIRFLOW button on the remote control. Every time you press this button the mode changes as follows: Change on AIRFLOW (UP/DOWN) mode. (Flap stopped) (Swing) NOTE FOR HEATING OPERATION •...

  • Page 12: Sleep Timer Operation

    SLEEP TIMER operation ■ The unit stops automatically after the set time lapses. The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating. Press the SLEEP button. ■ If it is pressed while the unit is off SLEEP TIMER operation starts with the previous operation settings, and the air condi- tioning is turned off after the set time elapses.

  • Page 13: Off-Timer Operation

    OFF-TIMER operation ■ The unit stops automatically when the set time comes. With the air conditioner turned off, start the operation from Step 1. With the air conditioner running, start from Step 2. Example: You prefer it to stop 22:30. Press the ON/OFF button.

  • Page 14: On-Timer Operation

    ON-TIMER operation ■ Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. ON-TIMER operation can be set regardless of whether the air-conditioner is running or not. Example: In the case the preferred room temperature is required at 8:00.

  • Page 15: Sleep Timer + On-Timer Operation

    SLEEP TIMER + ON-TIMER operation ■ Combined timer operation of SLEEP TIMER and ON TIMER. Example: When it is required to stop after 3 hours and then start operation at 8:00, near the set temperature. ■ SLEEP TIMER setting Set by the procedures on page 11. Set to ■...

  • Page 16: High Power/Economy Operation

    HIGH POWER/ECONOMY operation If the air-conditioner is not operating, point the remote control toward the air conditioner, and Press the ON/OFF button. Press the HI POWER/ECONO button. • When the operating mode is AUTO, COOL or HEAT Every time the HI POWER/ECONO button is pressed, the display is switched in the order of: No display (HIGH POWER)

  • Page 17: Self Clean Operation

    SELF CLEAN operation ■ CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the growth of mold and bacteria. In order to active CLEAN operation, press the CLEAN switch with the tip of a ballpoint pen.

  • Page 18: Heat Operation

    Airoutlet selection ■ AIR SELECTION button can switch between the combination of upper and lower air outlets and upper air outlet. Not operable while the air conditioner is OFF. Press the ON/OFF button on the remote control. Press the AIR SELECTION button on the unit display section. Each time the AIR SELECTION button is pressed.

  • Page 19: Maintenance

    Maintenance How to open, close the air inlet panel Removal, installation of air inlet panel Open Removal Place fingers at the recesses on both sides of the panel and pull down When removing the air inlet panel for internal cleaning or others, open the panel, remove the string and then pull it forward.

  • Page 20: Installing, Inspecting, And Replacing The Air-Cleaning Filter

    Cooling/heating is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It may also NOTE use extra electricity. Please clean the air filter at appropriate intervals. At the end of the season At the beginning of the season Perform the fan operation for a half day.

  • Page 21: Proper Installation

    Proper installation Suitable installation position • Do not put any obstruction in front of the indoor unit, preventing proper ventilation and functioning. • Do not install the unit in any of the following places: • Where there is a danger of leaking flammable gases. •...

  • Page 22: Notice

    Notice The unit does not restart immediately after you have Restart is blocked for 3 minutes after you have stopped the operation stopped it. to protect the unit. (RUN light is on) Please wait for operating? three minutes. The three-minute protection timer in the microcomputer automatically starts it up again.

  • Page 23: Contact Your Dealer

    Contact your dealer ■ Turn off the power switch immediately and inform your dealer in any of the following situations: The fuse or switch blows continu- The cable becomes extremely hot. ously. The covering of the cable is cracked. CAUTION Fuse often blows.

  • Page 24: Self Diagnosis Function

    Self diagnosis function ■ We are constantly trying to do better service to our customers by installing such judges that show abnormality of each function as follows: RUN light Description of trouble Cause Heat exchanger sensor 1 error • Broken heat exchanger sensor 1 wire, poor connector connection 1 time flash 2 time flash Room temperature sensor error...
