HP Media Center PC Getting Started Guide

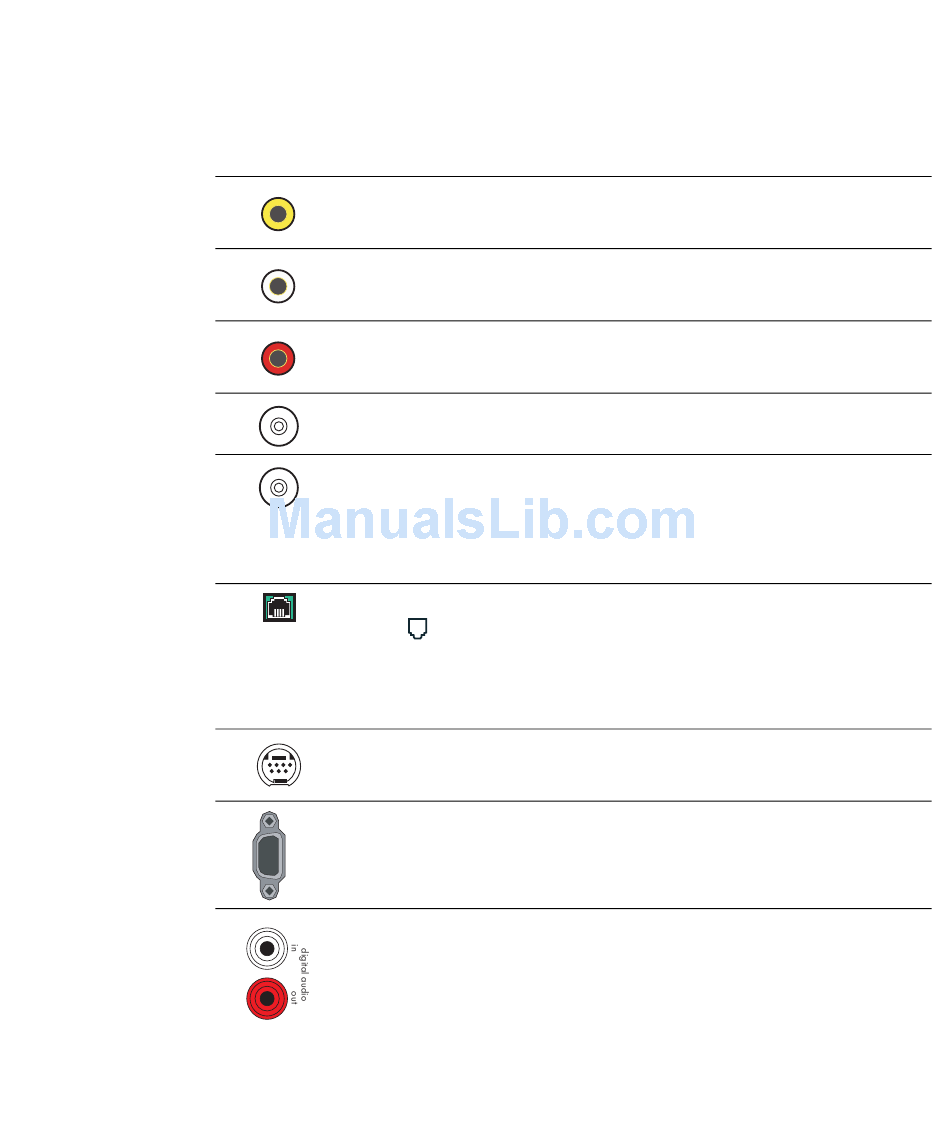

Connector Icon/label
Composite Video
L audio
R audio
TV/Cable Ant
FM Ant
LINE
Analog Video
VGA
Digital audio
In and Out
Description and function
Composite Video In from set-top box connector (yellow)
Left audio input from set-top box connector (white)
Right audio input from set-top box connector (red)
TV In (TV antenna or cable input from wall outlet with
no set-top box)
FM In (radio antenna input)
Plug the FM radio antenna cable into the FM In port on the
back of the PC on the TV tuner card. You may want to extend
the ends of the cable to improve your FM radio signal
reception.
Modem (Line In RJ-11)
(select models only)
Plug the modem cable (provided in the PC box) into the
computer modem connector on the back of the PC. Plug the
other end to your telephone line wall jack connector.
Analog Video Out: S-video or composite video
(select models only)
Monitor/VGA display output
Digital audio input (white)
Digital audio output (red)
