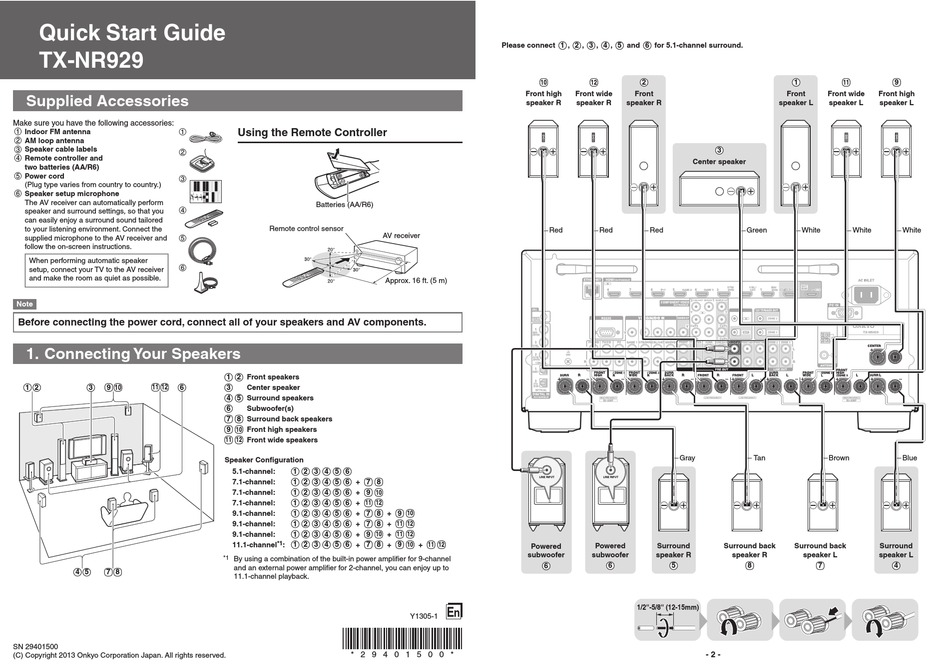

Onkyo TX-NR929 Quick Start Manual

Quick Start Guide
TX-NR929
Supplied Accessories
Make sure you have the following accessories:
a Indoor FM antenna
b AM loop antenna
c Speaker cable labels
d Remote controller and
two batteries (AA/R6)
e Power cord
(Plug type varies from country to country.)
f Speaker setup microphone
The AV receiver can automatically perform
speaker and surround settings, so that you
can easily enjoy a surround sound tailored
to your listening environment. Connect the
supplied microphone to the AV receiver and
follow the on-screen instructions.
When performing automatic speaker
setup, connect your TV to the AV receiver
and make the room as quiet as possible.
Note
Before connecting the power cord, connect all of your speakers and AV components.
1. Connecting Your Speakers
1 2 3 9 10 11 12 6
4 5 7 8
SN 29401500
(C) Copyright 2013 Onkyo Corporation Japan. All rights reserved.

Using the Remote Controller

Batteries (AA/R6)
Remote control sensor
AV receiver
Approx. 16 ft. (5 m)
1 2 Front speakers
3 Center speaker
4 5 Surround speakers
6 Subwoofer(s)
7 8 Surround back speakers
9 Front high speakers
10
11 12 Front wide speakers
Speaker Configuration
5.1-channel: 1 2 3 4 5 6
7.1-channel: 1 2 3 4 5 6 + 7 8
7.1-channel: 1 2 3 4 5 6 + 9 10
7.1-channel: 1 2 3 4 5 6 + 11 12
9.1-channel: 1 2 3 4 5 6 + 7 8 + 9
1 2 3 4 5 6 + 7 8 +
9.1-channel: 11 12
9.1-channel: 1 2 3 4 5 6 + 9 10 + 11 12
11.1-channel *1 : 1 2 3 4 5 6 + 7 8 + 9
*1
By using a combination of the built-in power amplifier for 9-channel
and an external power amplifier for 2-channel, you can enjoy up to
11.1-channel playback.
* 2 9 4 0 1 5 0 0 *
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
10
Front high Front wide
speaker R speaker R
Red
10
+
10 11 12
Powered
subwoofer
6
E
n
Y1305-1
12 2
Front
speaker R
3
Center speaker
Red Red Green
Gray Tan
Powered Surround Surround back
subwoofer speaker R speaker R
6 5 8
1/2''-5/8'' (12-15mm)
- 2 -
1 11 9
Front Front wide Front high
speaker L speaker L speaker L
White White White
Brown Blue
Surround back Surround
speaker L speaker L
7 4
